Telescopic slide full extension 038 | up to 100 kg | Schock telescopic slides

Description

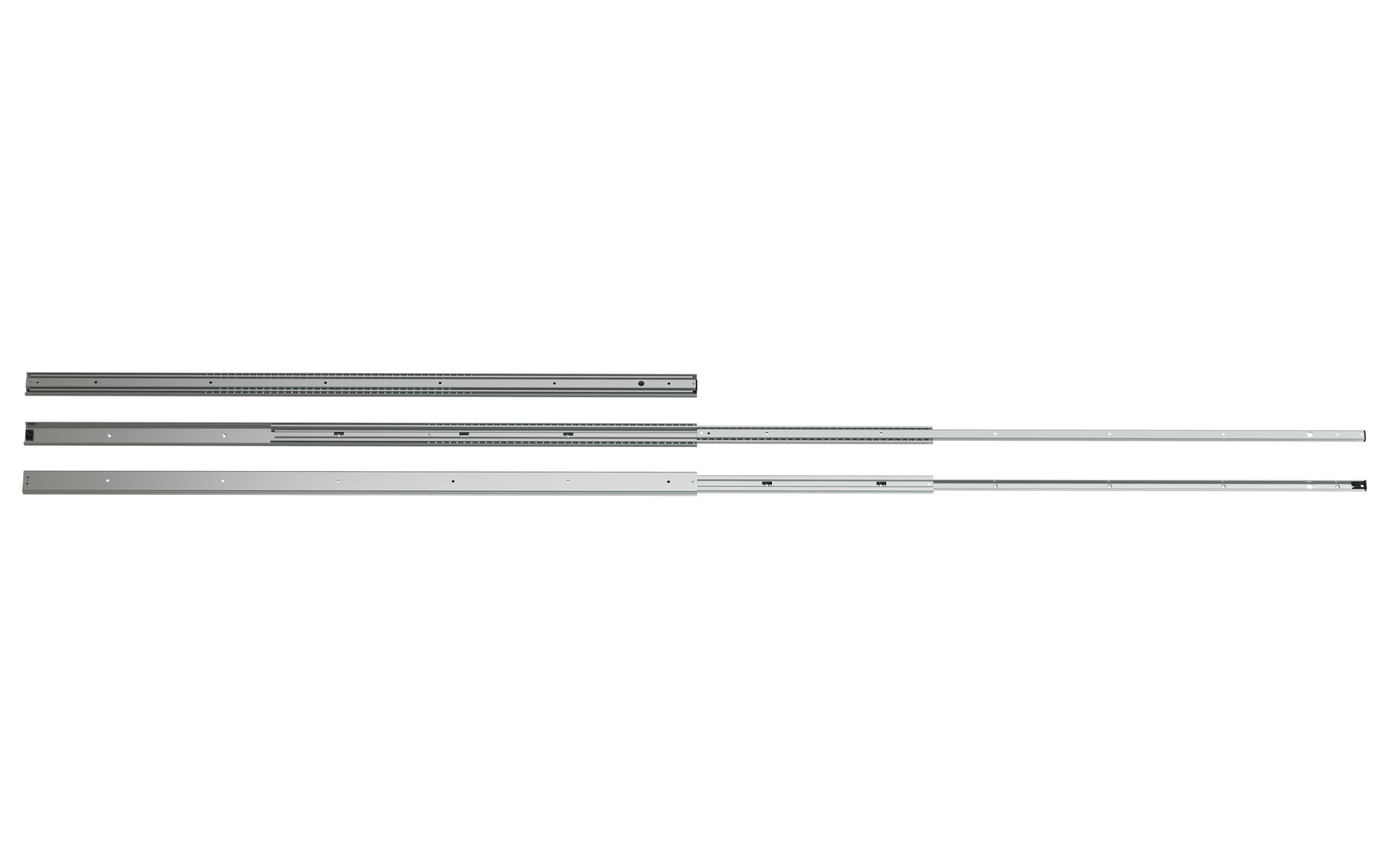

Telescopic slides Schock Metal full extension series 038

Item price and sale per piece. One pair = 2 pieces.

Article No. 038.11710

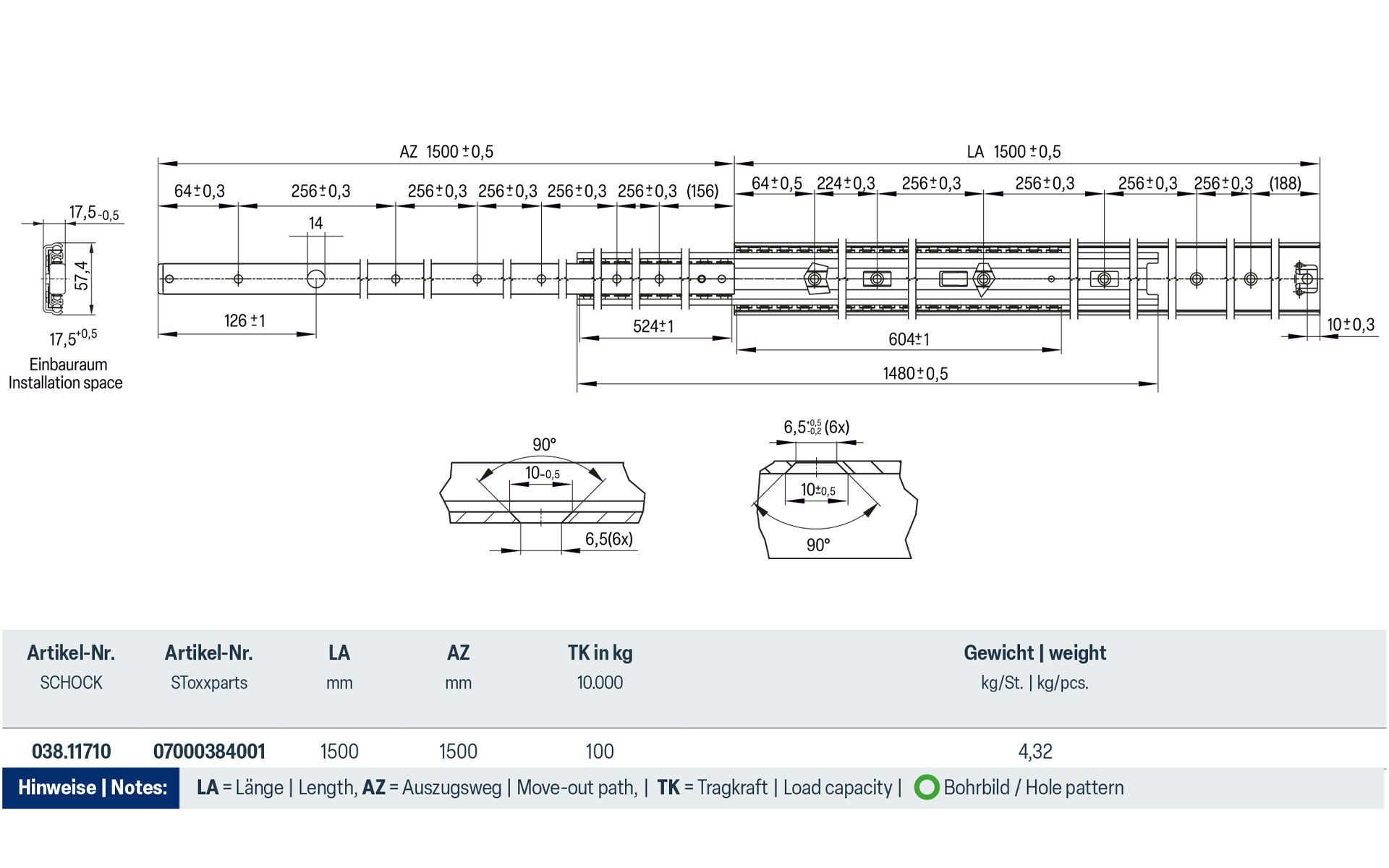

Telescopic slide series 038, steel, width 17.5 mm, full extension 1500 mm, up to 50kg

Description:

• Full extension
• Load capacity up to 50 kg per pair at 10.000 cycles
• Special length 1500 mm
• Locking device

Material: Rails made of hot-dip galvanized steel ball cages made of galvanized steel balls made of hardened carbon steel temperature range: Operating temperature 10 C to 40 C Storage and transport temperature -20 C to max. 80 C Notes: The locking device fixes the guide in the closed position. The specified load capacities are maximum values for a vertically mounted pair of telescopic slides with even load distribution when using all the provided fastening positions. In typical applications for particularly long telescopic slides, for example in transport systems and load carriers, additional external stops and external locking systems are absolutely necessary to ensure safe operation or transport due to the extreme load requirements.
