Telescopic slide full extension 038 | up to 100 kg | Hold-in | Schock telescopic slides

Description

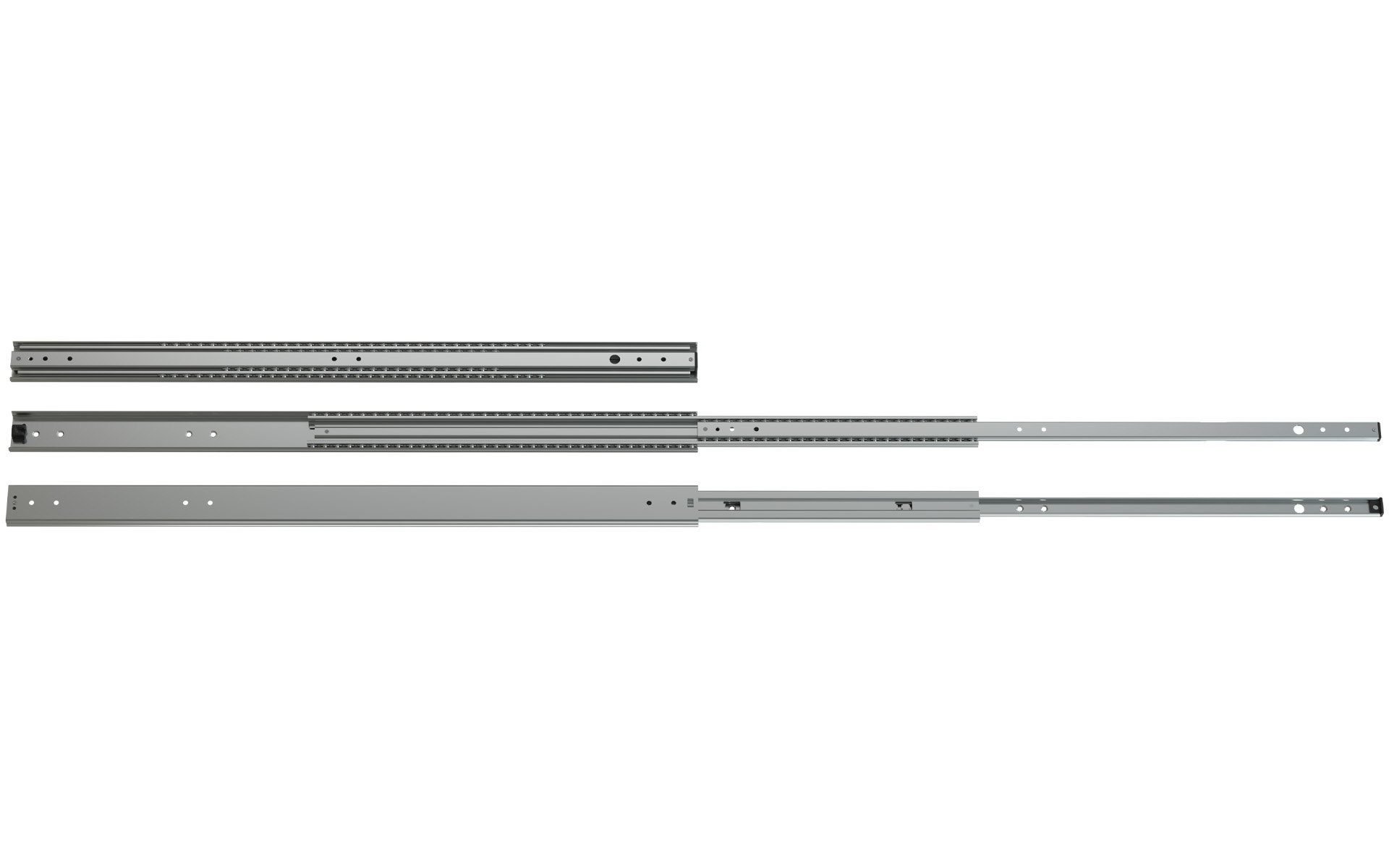

Telescopic Slides Schock Metall^® Over-extension Series 038

Item price and sale per piece

Item No. Schock 038.17870 – 038.17879

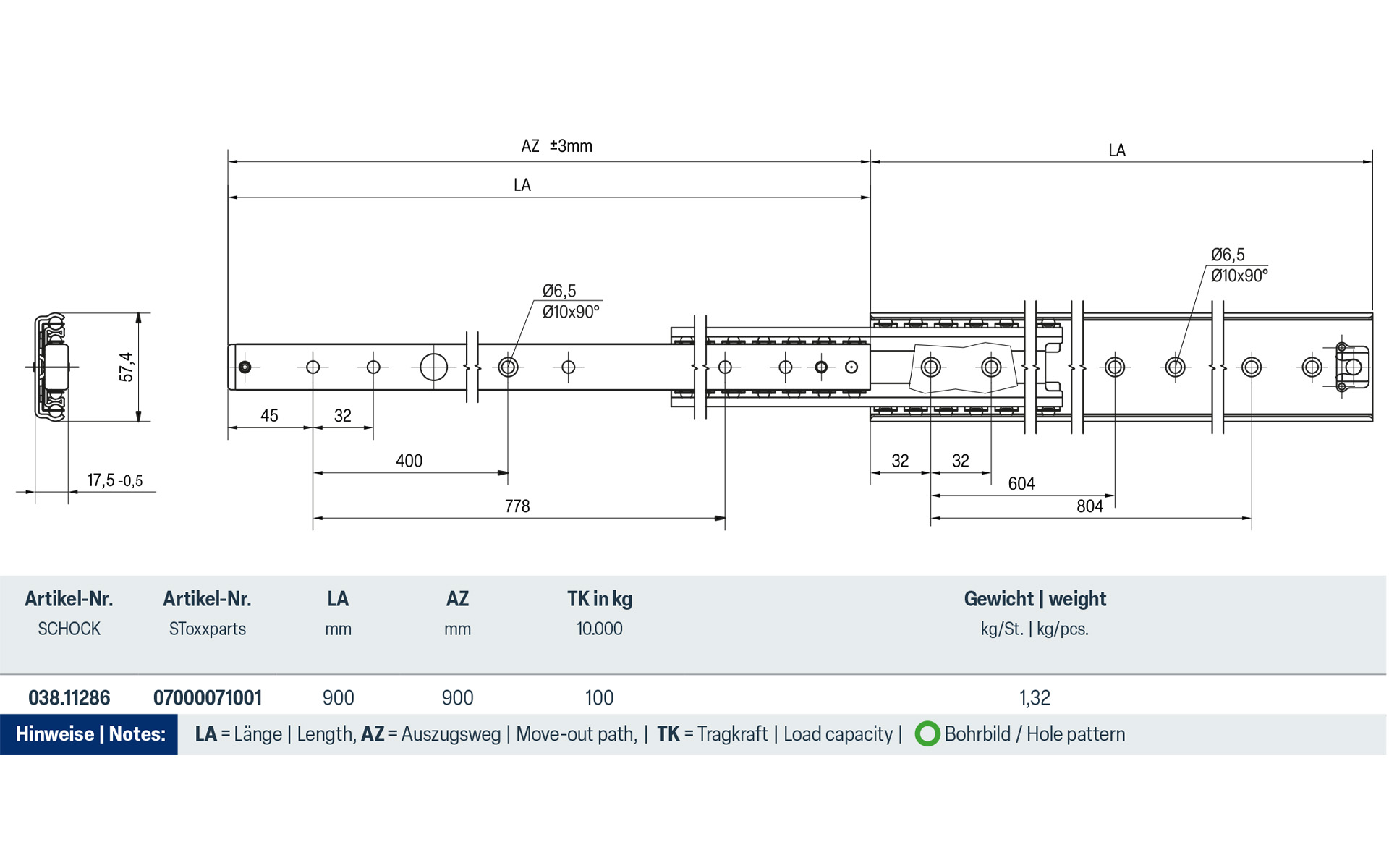

Telescopic slides Series 038, hot-dip galvanized steel, width 17.5 mm, over-extension, up to 100 kg/pair at 10,000 cycles

Description Telescopic Slide SM-038A

• Full-extension with over-extension
• Load capacity up to 100 kg per pair
• Locking mechanism

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of galvanized steel
• Balls made of hardened C-steel

Temperature Range:

• Operating temperature +10°C to +40°C
• Storage and transport temperature -20°C to max. +80°C

Notes:

The locking mechanism secures the guide in the closed position.

The specified load capacities are maximum values for a vertically mounted telescopic slide pair with even load distribution using all designated mounting positions. For horizontally mounted slides, the load capacity is reduced by approximately 70%.
