Telescopic slide full extension 048 | up to 150 kg | Schock telescopic slides

Description

Telescopic slides Schock Metall full extension series 048

Item price and sale per piece

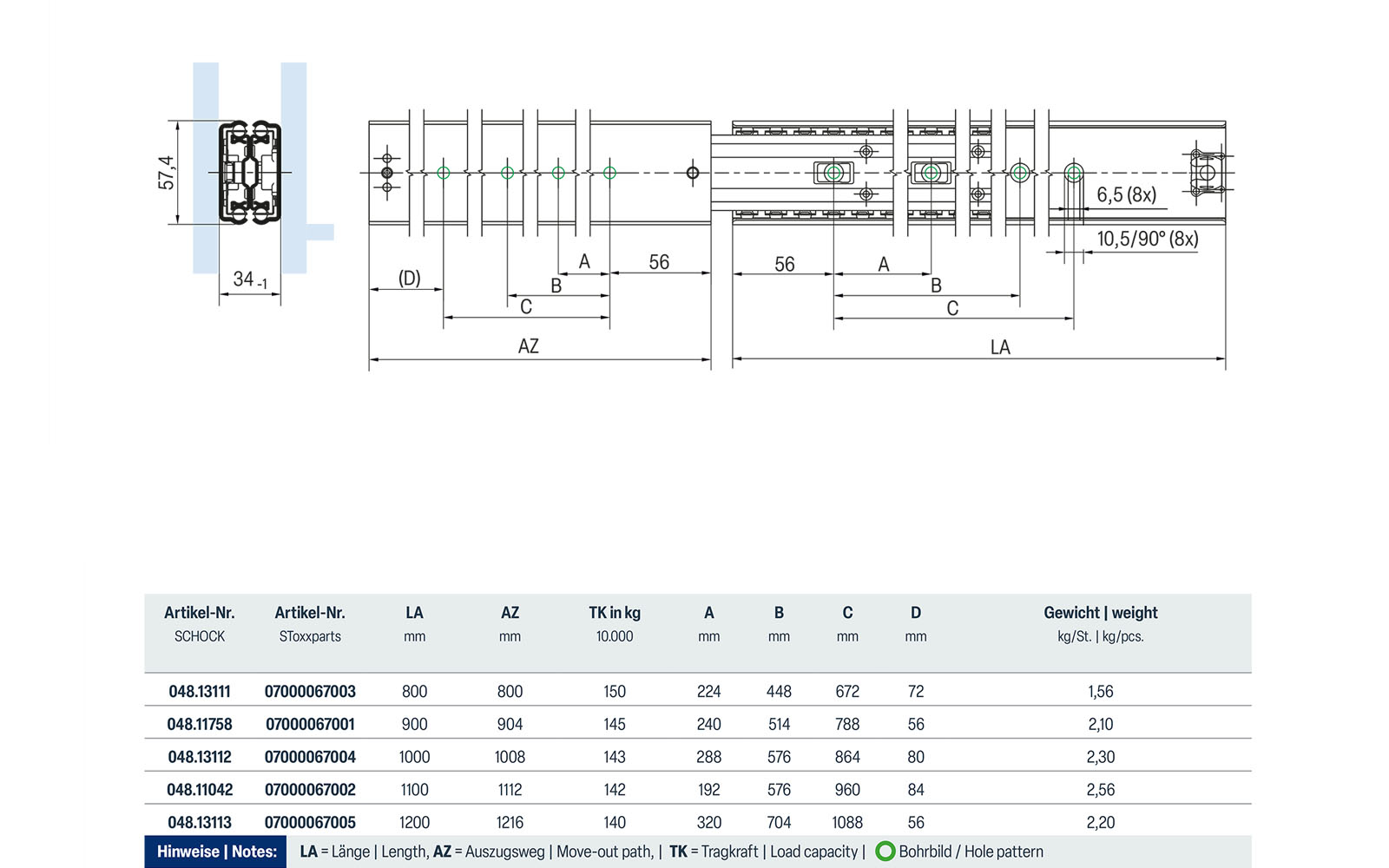

Telescopic slide series 048, hot-dip galvanized steel, width 34 mm, full extension, up to 150 kg

Description:

• Full extension
• Load capacity up to 150 kg per pair
• Locking device

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of galvanized steel
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10 C to 40 C
• Storage and transport temperature -20 C to max. 80 C

Notes:The locking device fixes the guide in the closed position.The specified load capacities are maximum values for a vertically mounted pair of telescopic slides with uniform load distribution when all the intended fastening positions are used.In typical applications for particularly long telescopic slides, for example in transport systems and load carriers, additional external stops as well as external locking systems are absolutely necessary to ensure safe operation or transport due to the extreme load requirements.
