Description

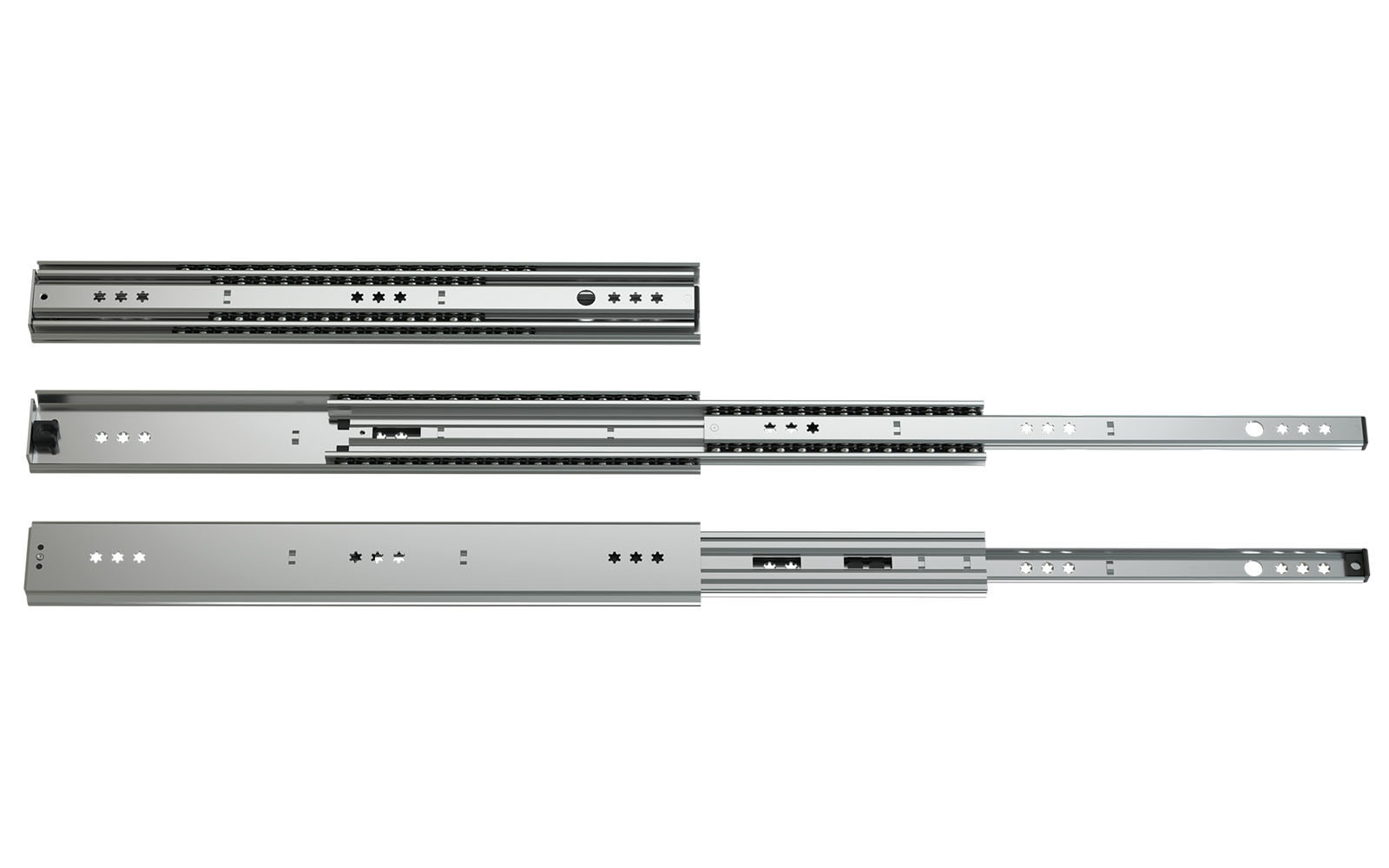

Telescopic slides Schock Metal full extension series 070

Article price and sale per piece

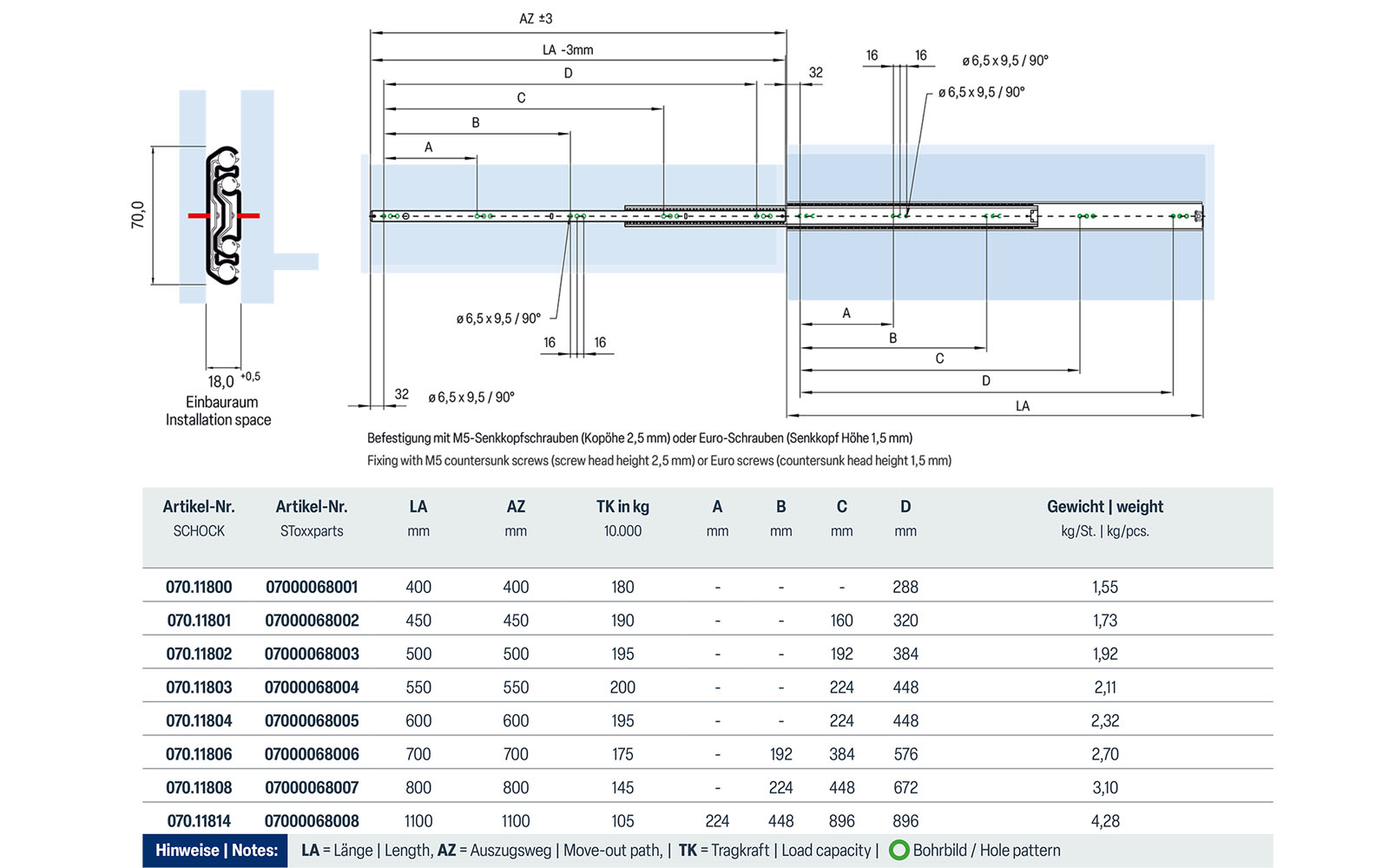

Article No. Schock 070.11800 – 070.11814

Telescopic slides series 070, hot-dip galvanized steel, width 18 mm, full extension, up to 200 kg

Description:

• Full extension
• Load capacity up to 200 kg per pair
• Locking device

Material:

• Rails made of galvanized and blue passivated steel
• Ball cages made of galvanized steel
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10 C to 40 C
• Storage and transport temperature -20 C to max. 80 C

Notes: The locking device fixes the guide in closed position. The indicated load capacities are maximum values based on the corresponding number of cycles. They apply to a vertically mounted pair of telescopic slides with uniform load distribution when all intended mounting positions are used. In typical applications for particularly long telescopic slides, for example in transport systems and load carriers, additional external stops as well as external locking systems are absolutely necessary due to the extreme load requirements in order to ensure safe operation or transport.
