Telescopic slide full extension 076 | up to 227 kg | with locking | Schock telescopic slides

Description

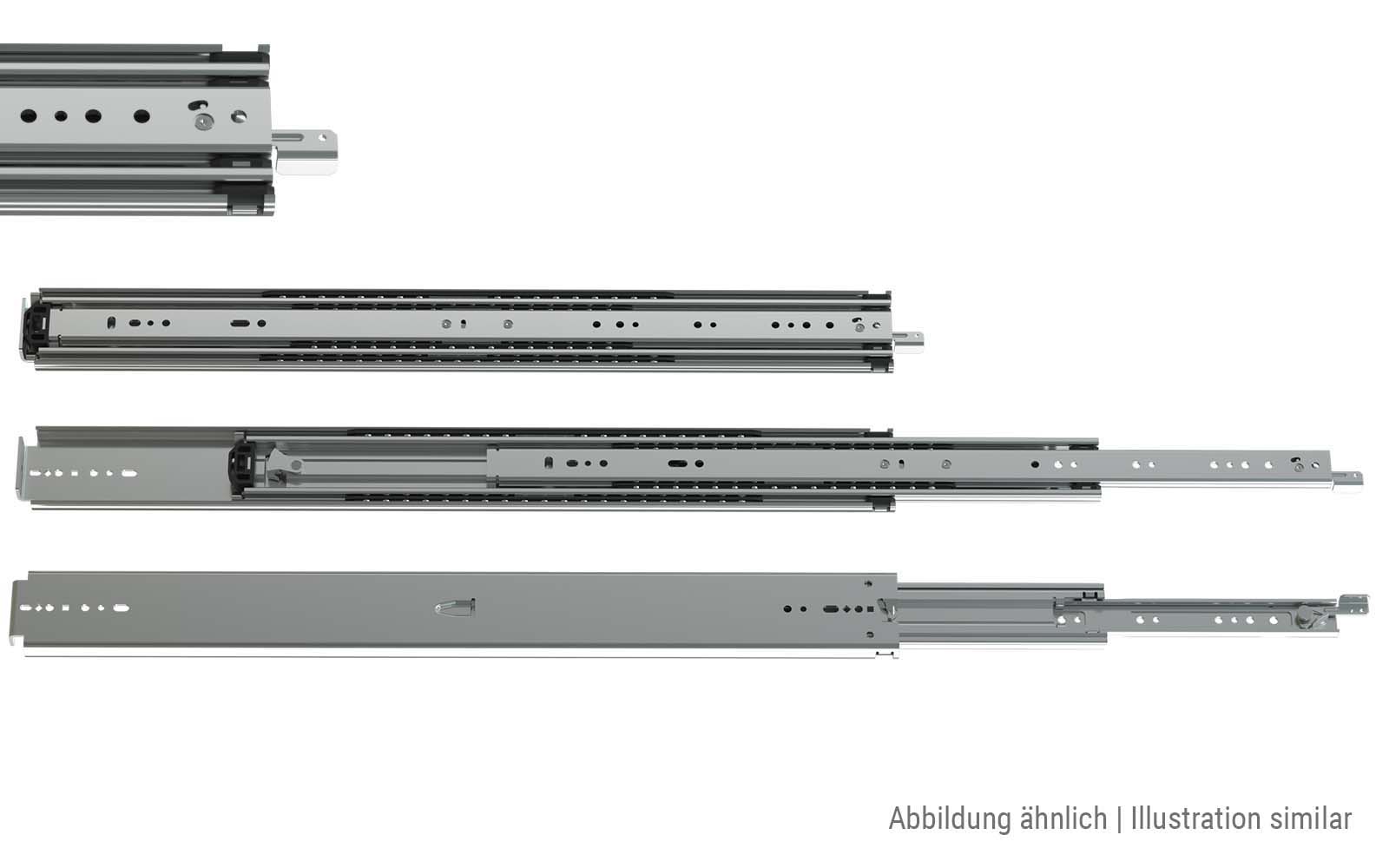

Ball-bearing full-extension slide with locking, load capacity up to 227 kg

Sliding rails with locking function help make the drawer safer when your vehicle is in motion. With a locking function, the drawer can be locked after being fully opened or closed, making installation more convenient and secure and preventing the drawer from opening automatically.

• 2.5 mm thickness of the steel plate of the individual elements ensures a high load capacity of the drawer slides.
• Slides are equipped with sound-dampened shock absorbers, providing smooth and quiet closing.
• Environmentally friendly galvanization allows the drawer slides to pass the 5% salt spray test for over 48 hours.
• Three elements can be fully extended, 100% extension of the sliding rails.
• Precision ball-bearing telescopic rails for smooth and quiet drawer movement.

Information:

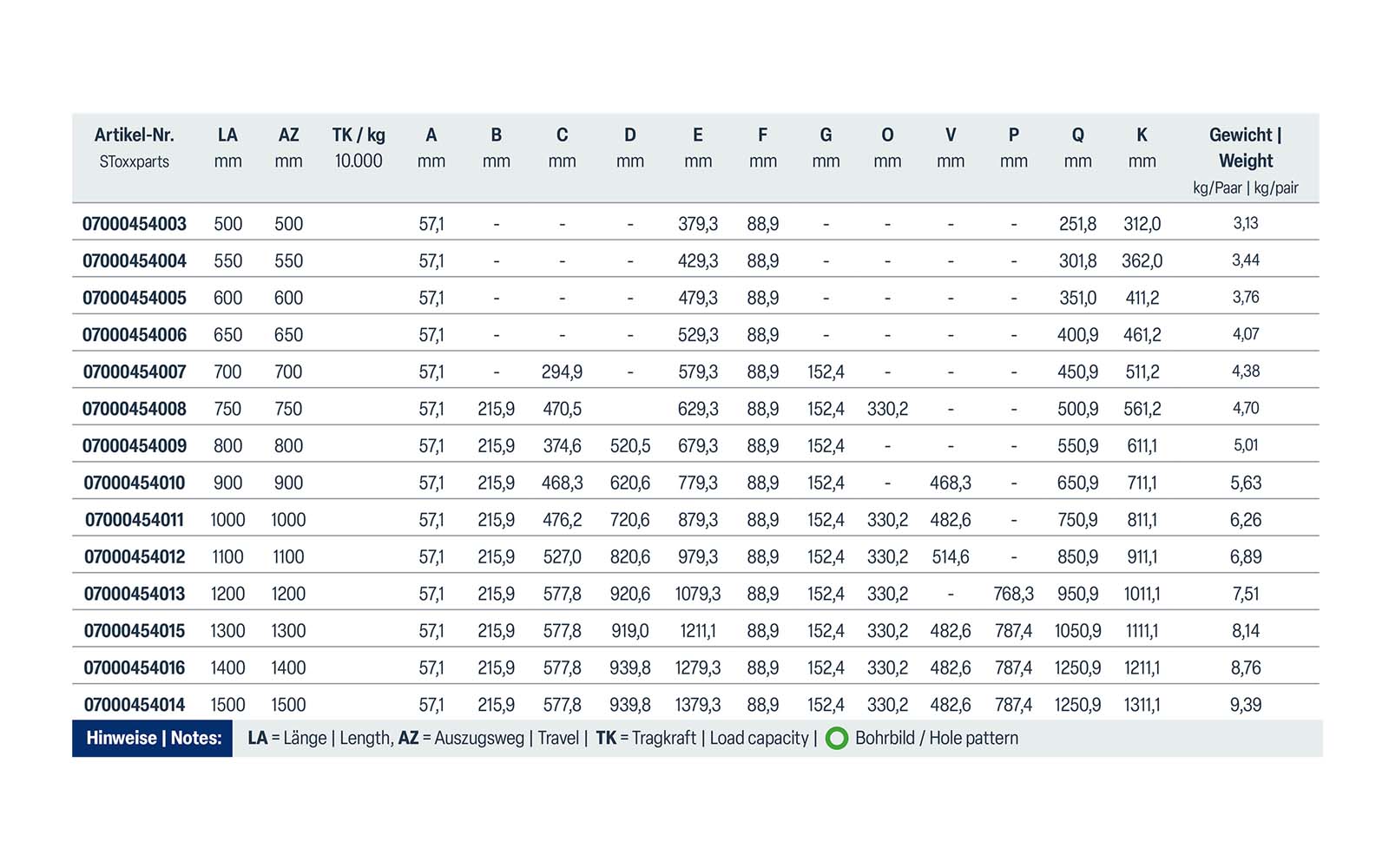

• HA7613 series up to 227 kg. Full-extension with locking, 19mm x 76mm.
• Sales and price per pair. No screws are included.
• (M6 screws for the outer slide)

Ideal for use in drawers and compartments in rescue vehicles, fire trucks, luxurious RVs, heavy-duty warehouses, workplaces, tool storage, motorhomes, caravans, automobiles, overland trucks, vending machines, as well as for heavy-duty fixtures and devices in the household.

Features:

• Load capacity: up to 227 kg / pair
• Extension: 100% full-extension
• Height: 76 mm
• Width: 19.1 mm
• Material: hardened cold-rolled steel
• Steel plate thickness: 2.5*2.5*2.5 mm
• Mounting: Side or flat mounting

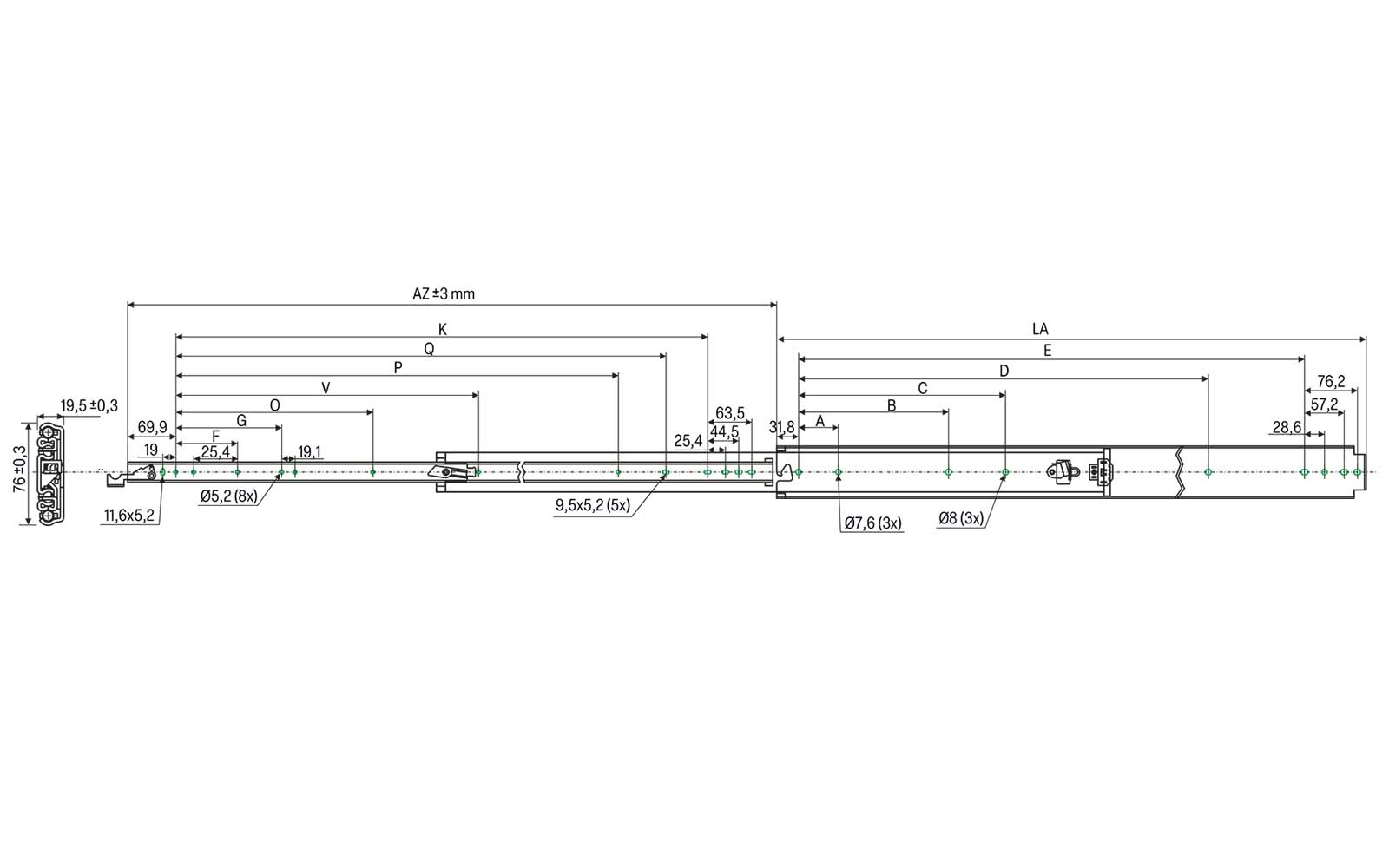

• Drawing: 2D, CAD, 3D
