Telescopic slide full extension 076 | up to 227 kg | with soft-stop | Schock telescopic slides

Description

Functions:

• Soft-stop

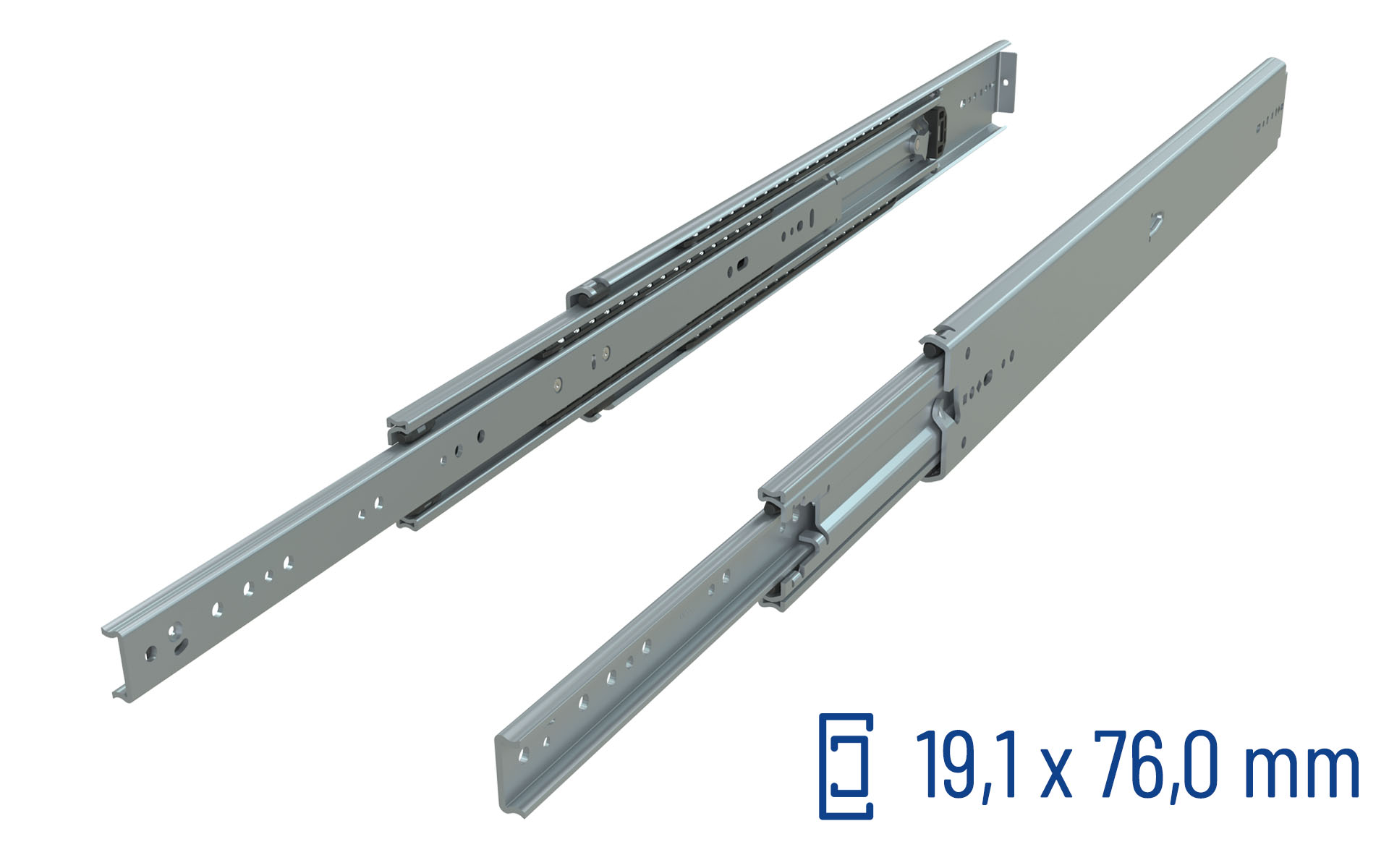

Schock telescopic slide Full extension Series 076

The Schock telescopic slide Full extension Series 076 is the ideal solution for a wide range
of applications where ease of use and seamless accessibility
are essential.

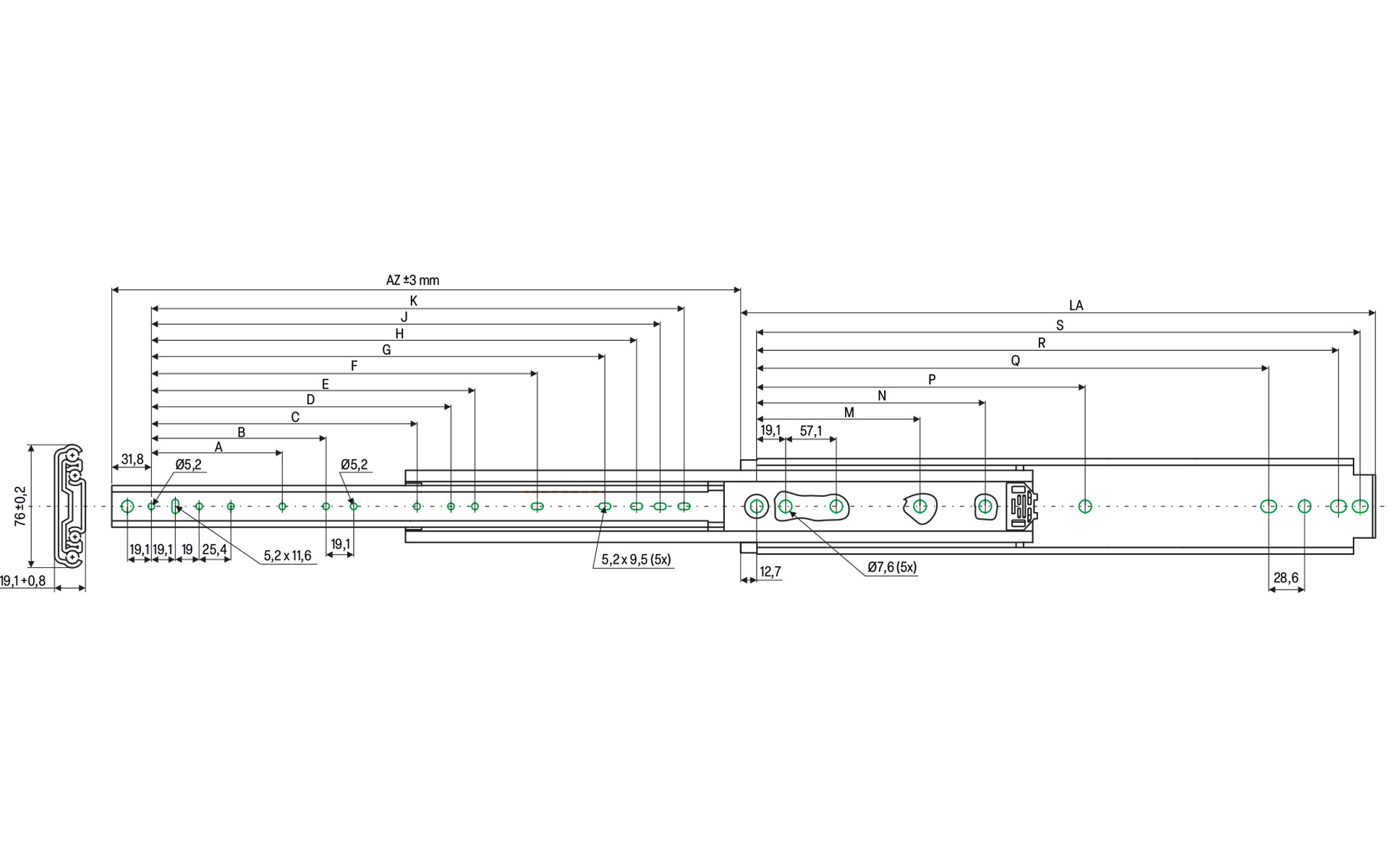

With dimensions of 19.1 x 76.0 mm (w/h) and available lengths from 254 mm to 1524 mm,
they offer exceptional flexibility and adaptability for various projects.

These Full extensions feature a soft-stop for smooth damping
when closing the slide.

This function not only ensures safe handling but also provides
comfortable and reliable use.

The Schock Full extension telescopic slides of Series 076 are versatile, as they are suitable
for both vertical and horizontal mounting. This enables their seamless
integration into a wide range of projects.

Technical Data:

• Load capacity up to 230 kg/pair at 10,000 cycles

Material:

• Rails made of galvanized steel
• Ball cages made of galvanized steel
• Balls made of hardened C-steel

Temperature Range:

• Operating temperature: -20 C to +70 C

Notes:

The specified load capacities are maximum values for a vertically mounted
telescopic slide pair with even load distribution using all designated
mounting positions.

WARNING: In case of flat mounting , the load capacity is reduced by up to 75%.
