Description

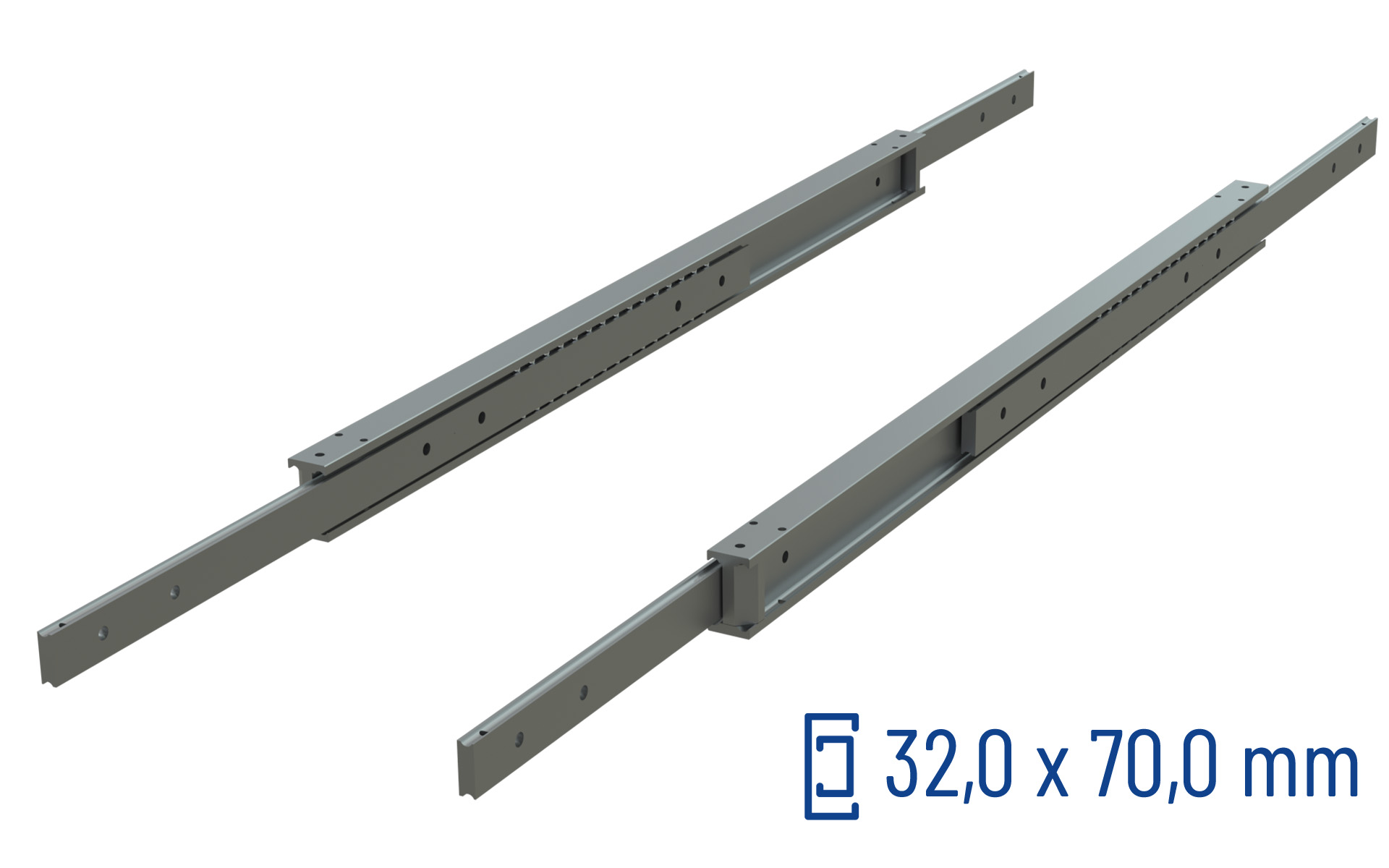

Full-extension Series ADTSB-70

The telescopic slides of the ADTSB series offer extension in both directions.
Due to the construction of the guide elements from solid material, the slides can be manufactured in almost any desired aluminum.

Extension: 100%, extendable on both sides
Material: Aluminum EN-AW 6082 T6
Length: 200 mm to 2000 mm

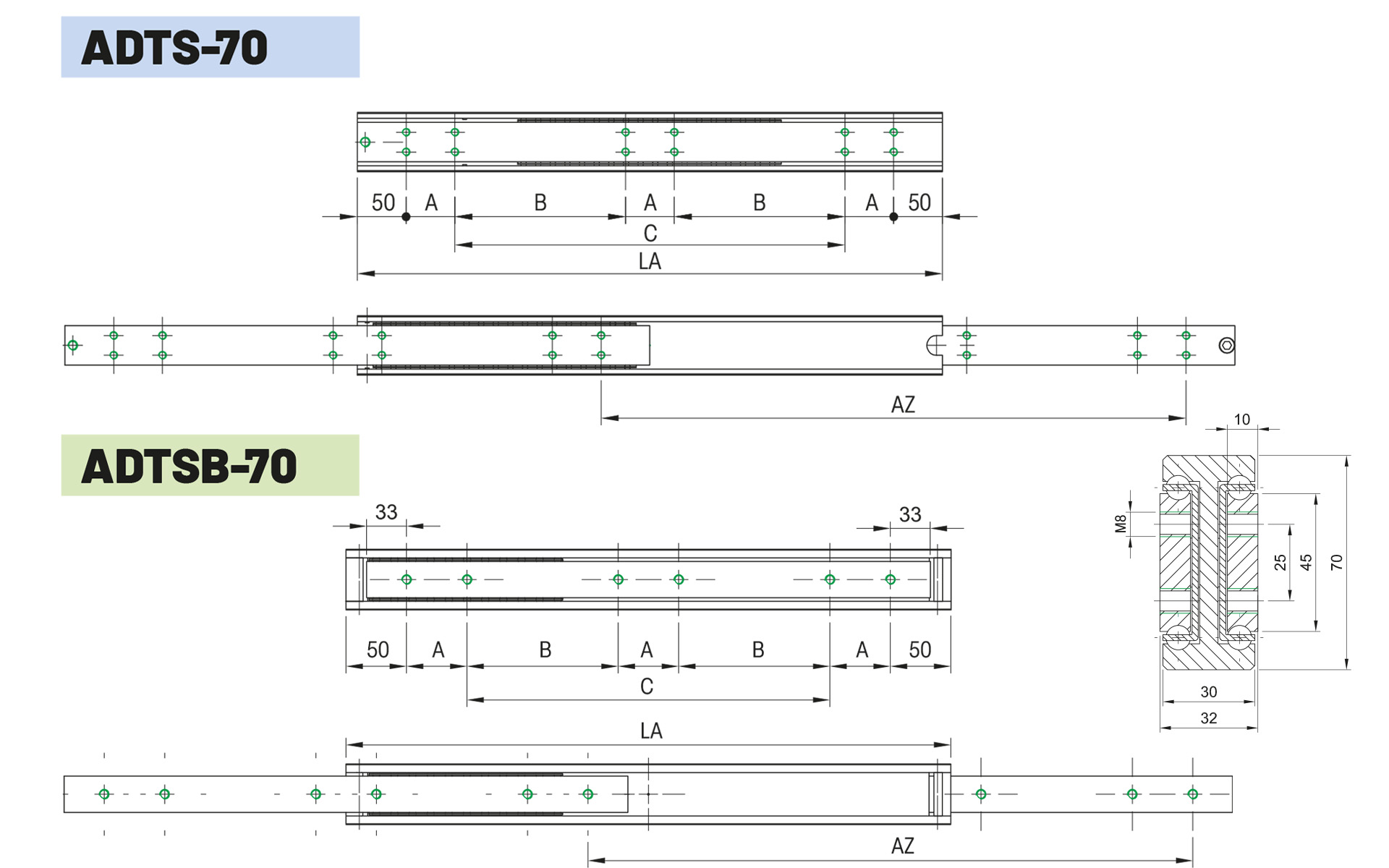

Cross-section: 32 x 70 mm
Extension length: 200 mm to 2000 mm
Load capacity: up to 330 kg/pair
Operating temperature: -40 to +200 C

The aluminum telescopic slides of the ADTSB series are smooth and precise full-extension slides.
Due to their light weight, the slides are ideal for military and airborne applications. Additionally, the slides are used for defense applications at sea and in the air.
With anodized surfaces and the use of stainless steel bearings, cages, and end stops, the slides are corrosion-resistant. Additional surface finishes can be selected upon request.
The ADTSB telescopic slides are limited to operating speeds of <0.3m/s. Therefore, we do not recommend these telescopic slides for precise robotic pick-and-place or high-speed shuttles.

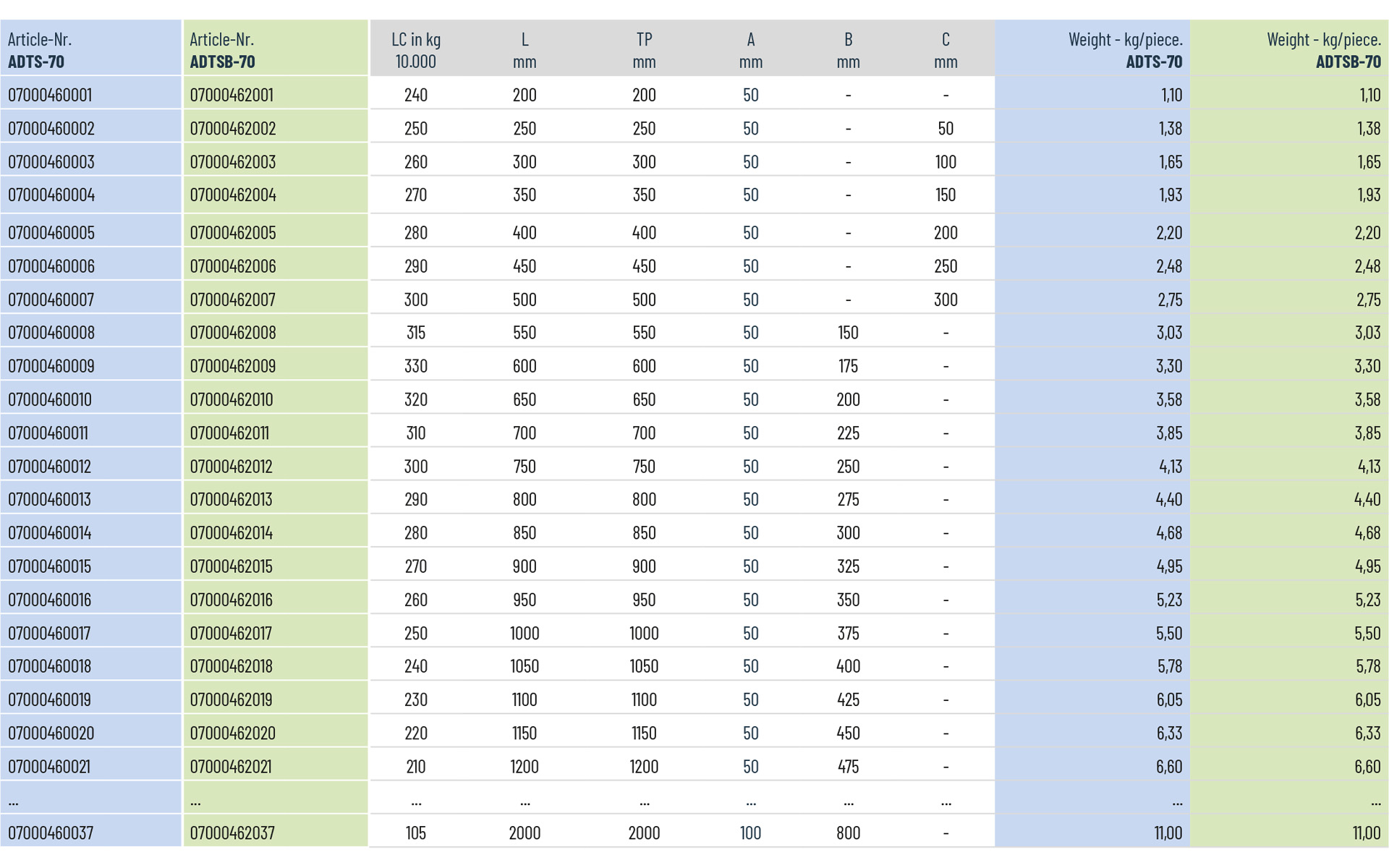

Load Capacities:
The telescopic slides offer high load capacity and compact dimensions. The maximum load capacity is specified for fully extended slide pairs installed in the main axis direction and whose load is evenly distributed over the inner slide.

Note:
As these telescopic slides are custom-made to order, they are excluded from returns. The slides are secured with high-quality wooden packaging during transport.
