Description

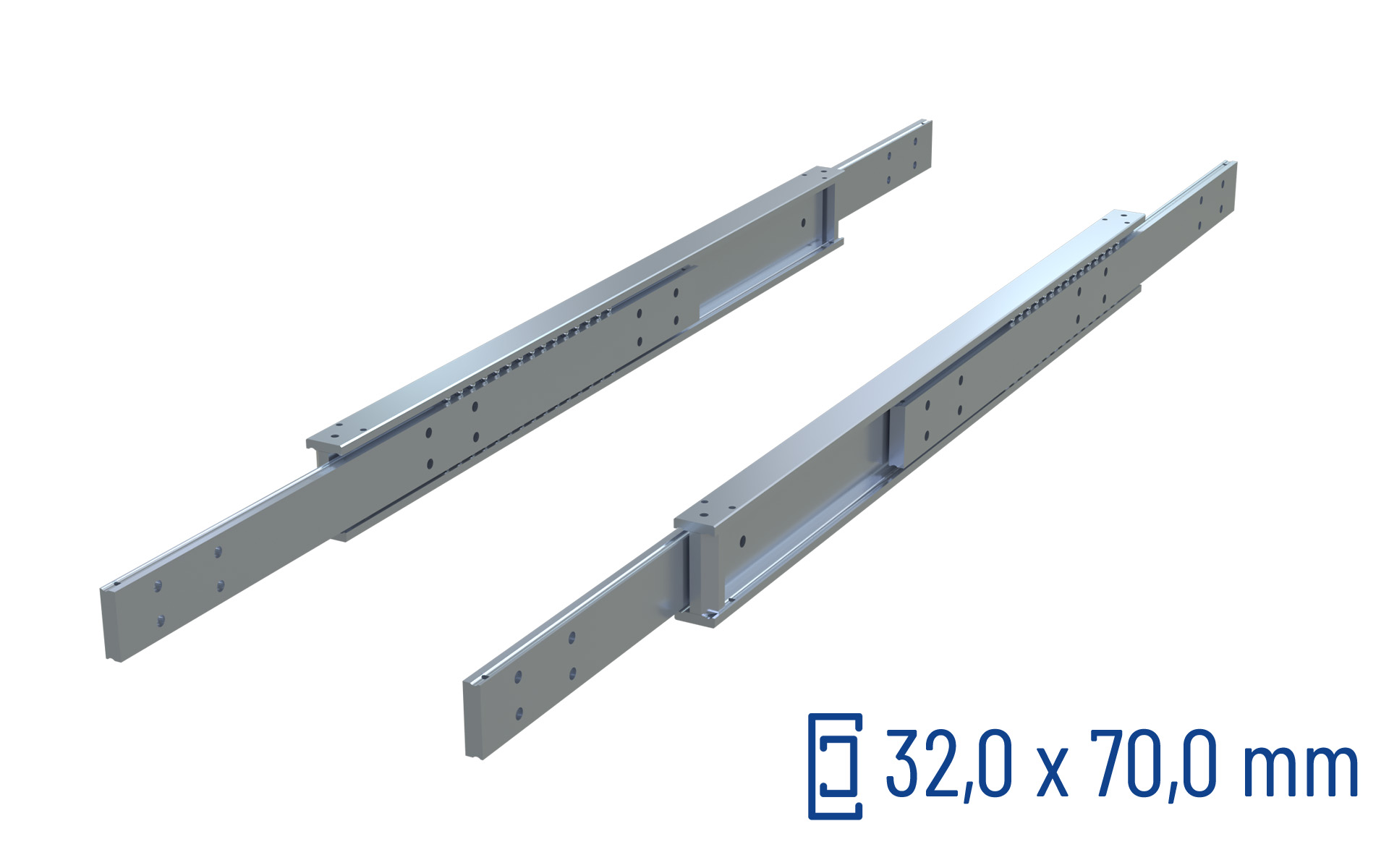

Full-extension Series DTSB-70

The DTSB-70 offers full extension both forward and backward. This is enabled by an internal rocking mechanism that releases each beam one after the other. Ideal for drawers where access may be restricted from both sides.
This is a telescopic slide with full extension for heavy loads, suitable for a variety of applications.

Extension: 100%, extendable on both sides
Material: Steel C45 E + C
Length: 200 mm to 2000 mm

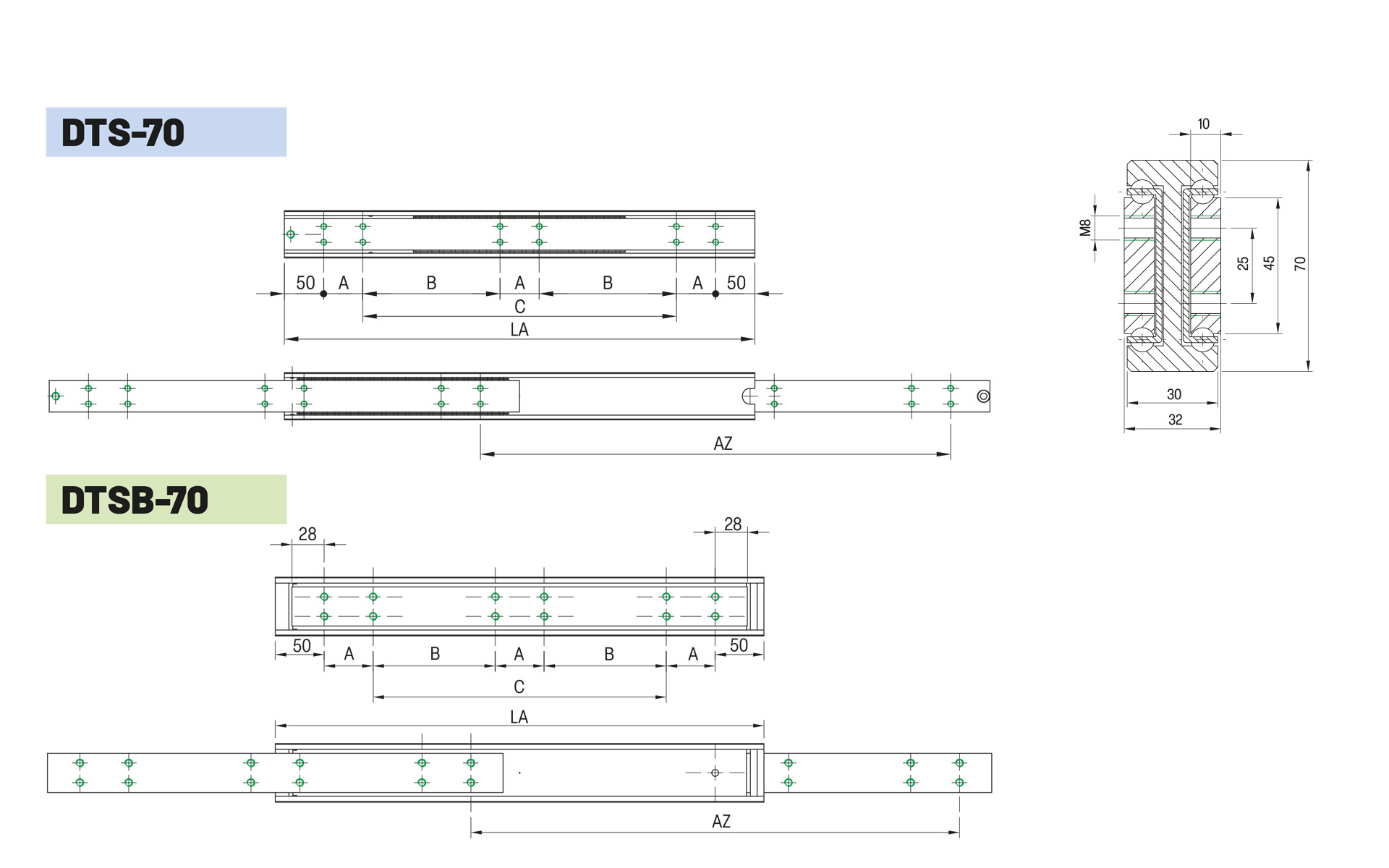

Cross-section: 32 x 70 mm
Extension length: 200 mm to 2000 mm
Load capacity: up to 700 kg/pair
Operating temperature: -40 to +200 C

Slides made of cold-drawn steel profiles with machined ball tracks offer excellent shock and vibration resistance. Accordingly, the product is well-suited for supporting emergency truck drawers and train seats.

Due to the extreme strength of the movable I-beam, this slide is robust against applied loads in the extended state, making it an excellent choice for dynamic applications. No plastic parts are used in the manufacturing of this series, making it ideal for use in high-temperature environments.

The slides are made of cold-drawn steel C45E+C according to EN 10277. The standard ball cages are made of galvanized sheet metal, and the ball bearings are made of carbon steel C85 G100 according to DIN 5401.

Load Capacities:
The telescopic slides offer high load capacity and compact dimensions. The maximum load capacity is specified for fully extended slide pairs installed in the main axis direction with the load evenly distributed over the inner slide.

Note:
As these telescopic slides are custom-made to order, they are excluded from returns. The slides are secured with high-quality wooden packaging during transport.
