Telescopic slide full extension Series 070 | Schock telescopic slides

Description

Functions:

• Hold-in

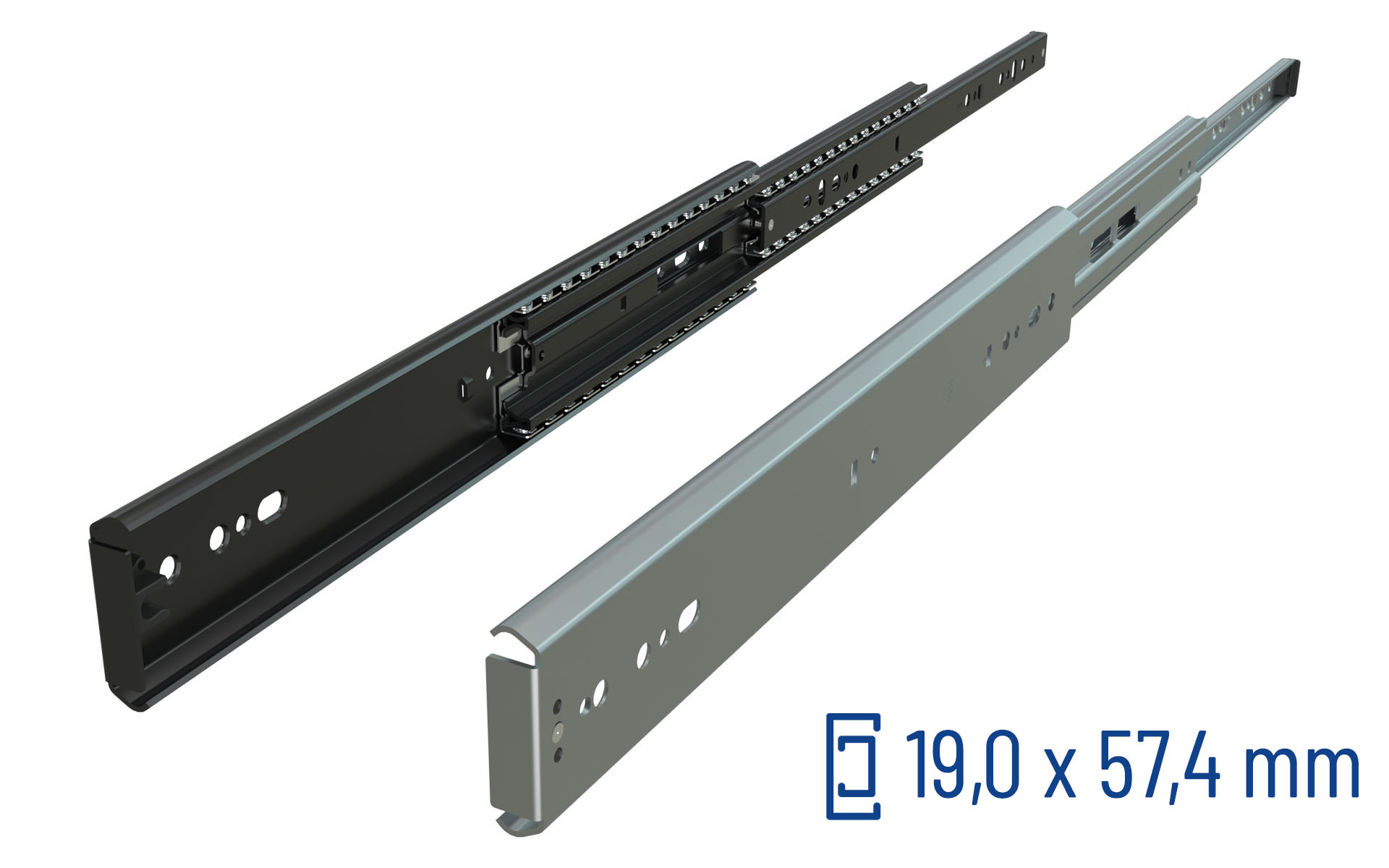

Schock telescopic slide Full extension Series 070

The Schock telescopic slide Full extension Series 070 is the ideal solution for a wide range
of applications where ease of use and seamless accessibility
are essential.

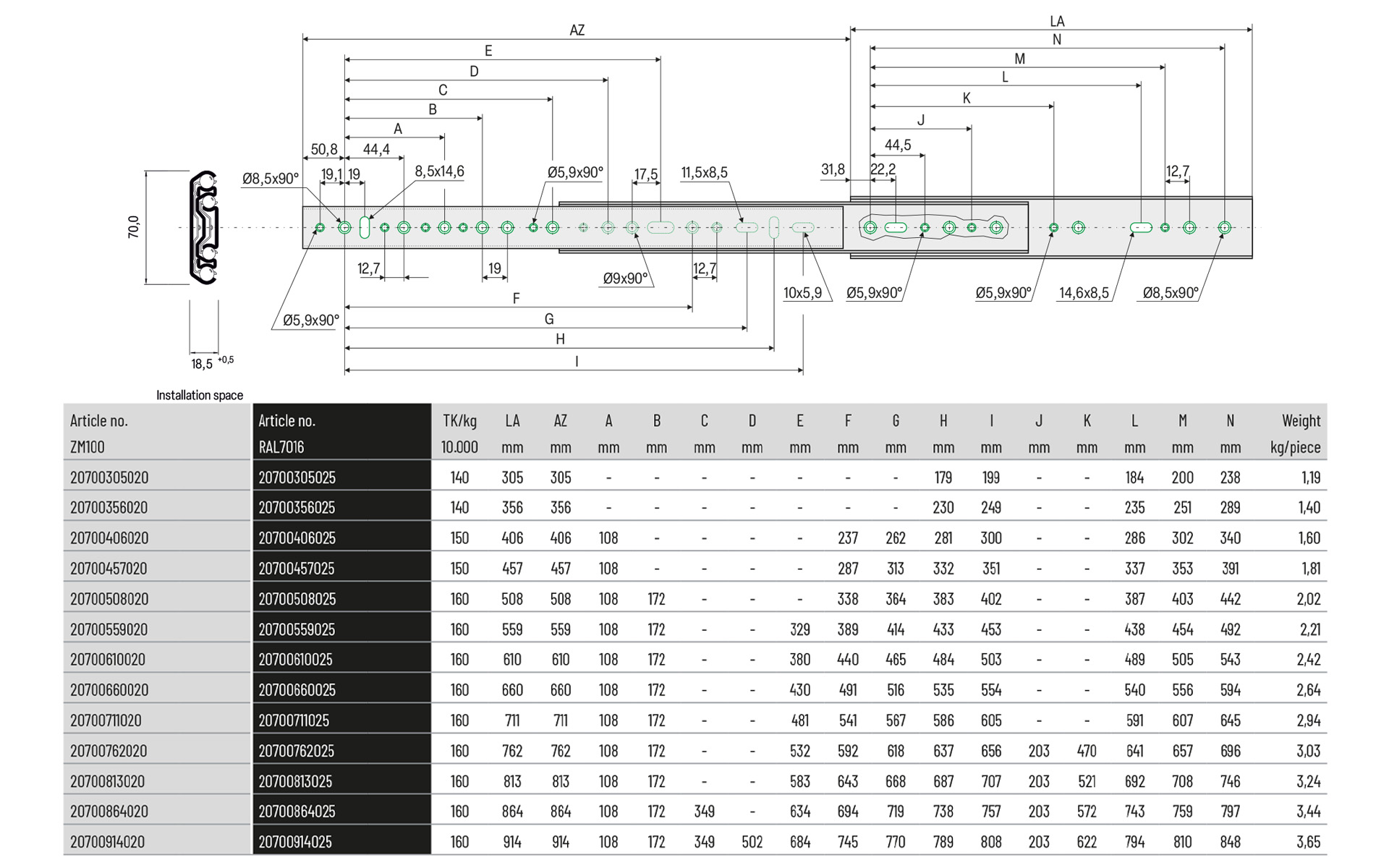

With dimensions of 19.0 x 57.4 mm (w/h) and available lengths from 305 mm to 914 mm,
they offer exceptional flexibility and adaptability for various projects.

These Full extensions come with a useful function, the hold-in.

This function not only ensures safe handling but also provides a
comfortable and reliable use.

The Schock Full extension telescopic slides of Series 070 are versatile, as they are suitable
for both vertical and horizontal mounting. This enables their seamless
integration into a wide range of projects.

Technical Data:

• Load capacity up to 160 kg/pair at 10,000 cycles

Material:

• Rails made of galvanized steel (ZM100)
• Ball cages made of galvanized steel (ZM70)
• Balls made of hardened C-steel

Temperature Range:

• Operating temperature: -20 C to +70 C
• Operating temperature with Soft-Close: +10 C to +40 C

Notes:

The specified load capacities are maximum values for a vertically mounted
telescopic slide pair with even load distribution using all designated
mounting positions.

WARNING: In case of flat mounting , the load capacity is reduced by up to 75%.
