Telescopic slide over extension 036 | up to 70 kg | insertion pins | Schock telescopic slides

Description

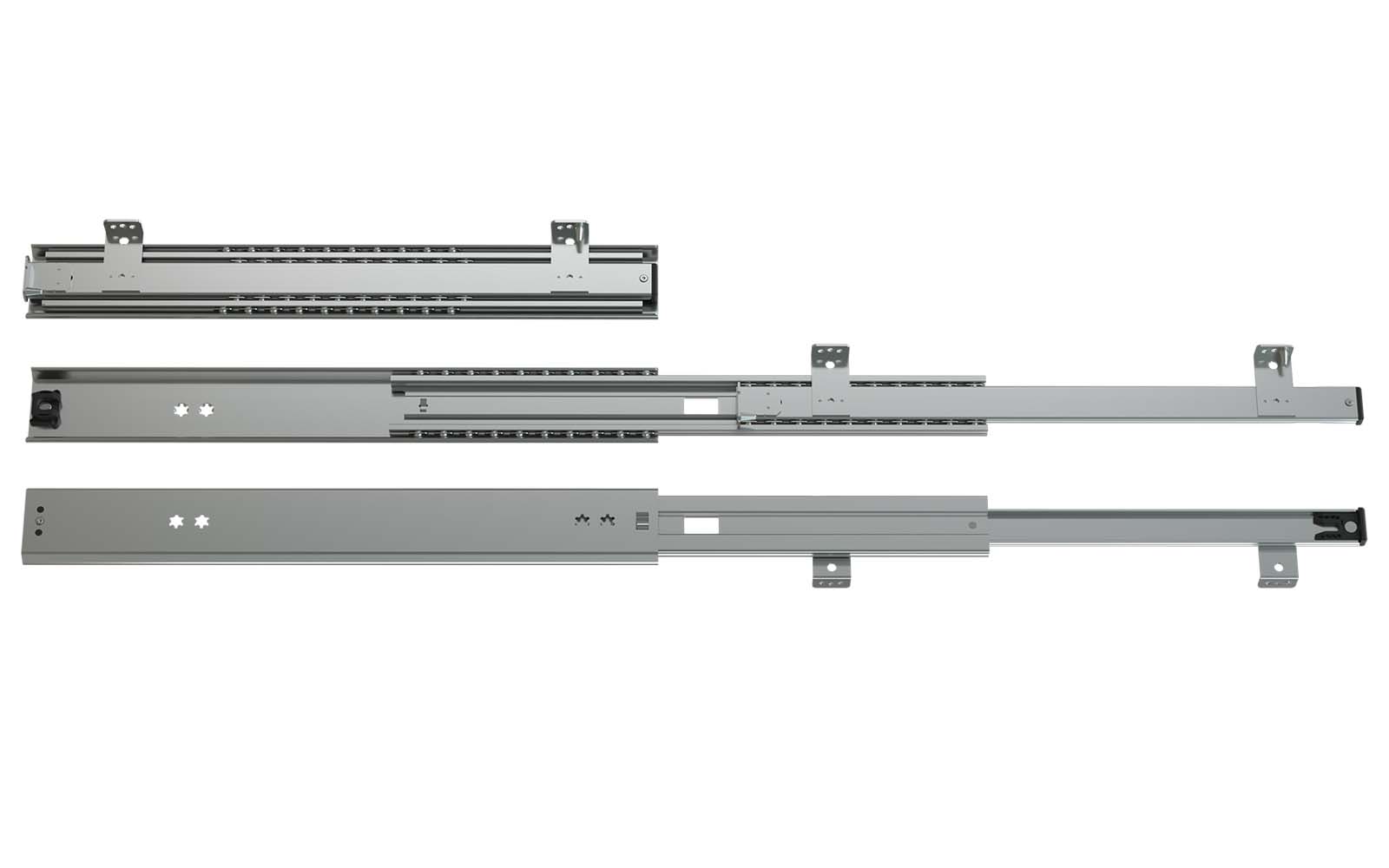

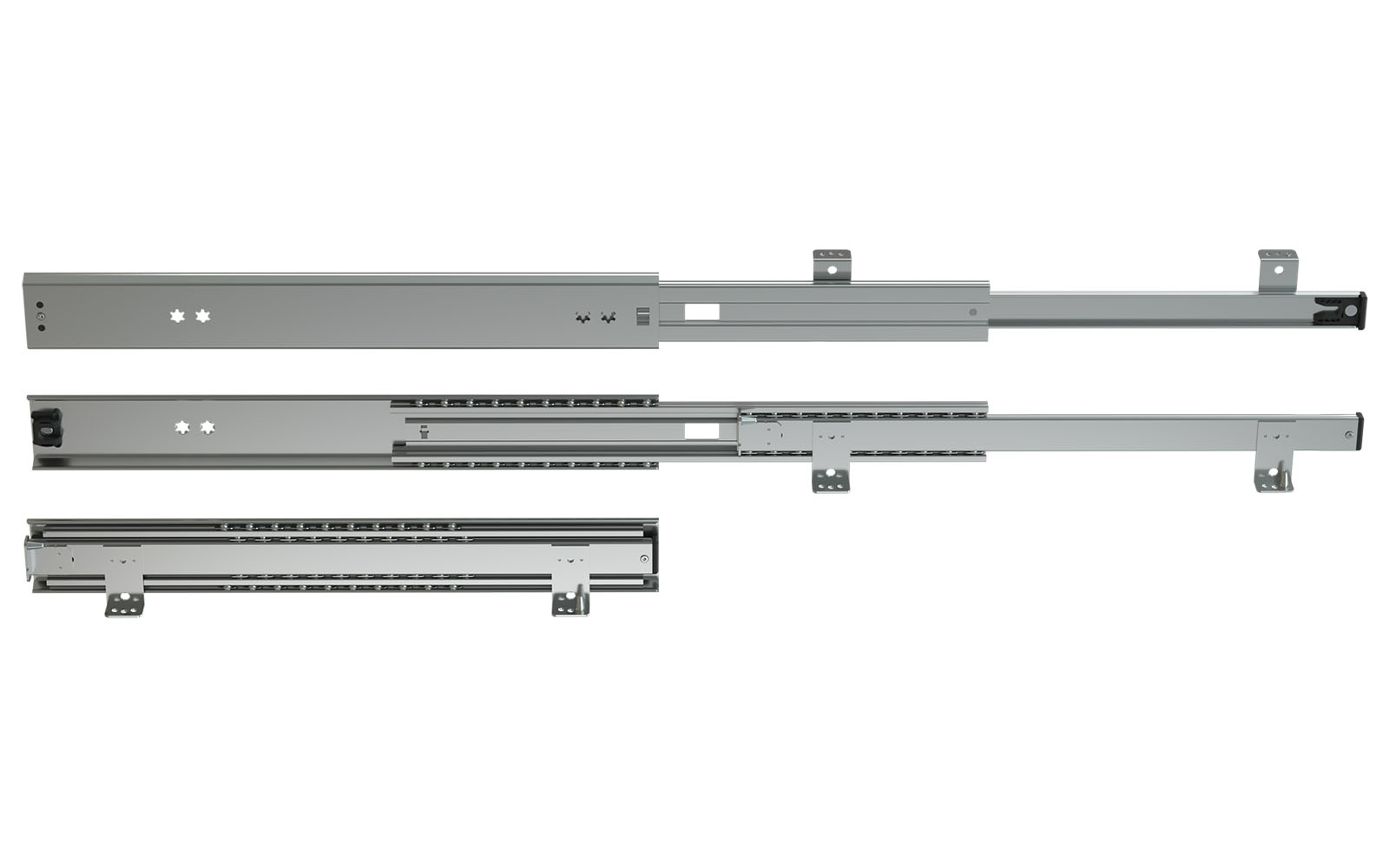

Telescopic slides Schock Metall over-extension series 036

Article price and sale per piece

PLEASE NOTE: Rails consist of a left and a right rail see family table.you need for a drawer two versch. Part numbers.

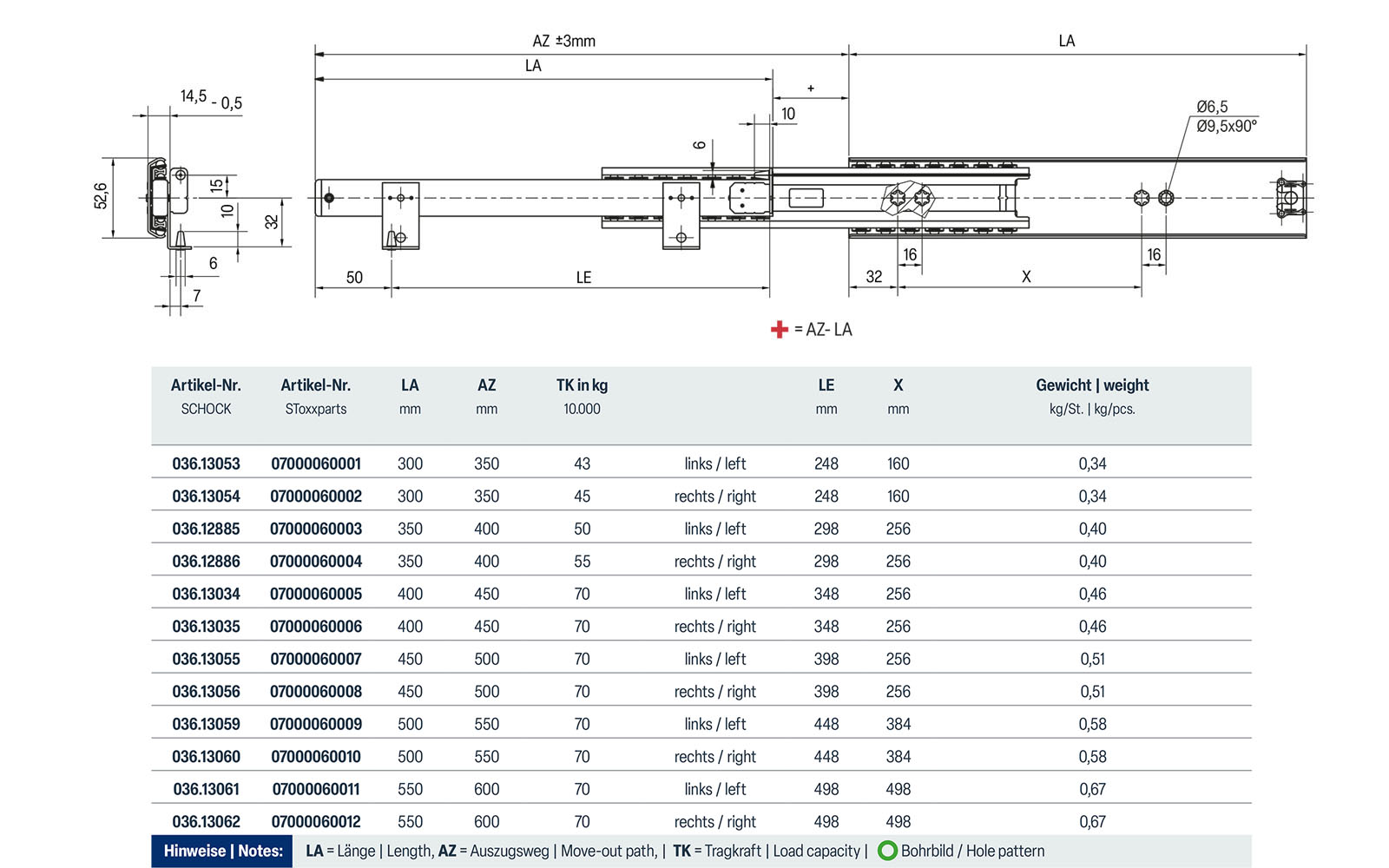

Article No. Schock 036.17100 – 036.17105

Telescopic slidesseries 036, hot-dip galvanized steel, width 14,5 mm, over-extension, insertion pins, up to 70kg/pair at 10.000 cycles, 50kg/pair at 100.000 cycles.

Description:

• Full extension with over extension
• Load capacity up to 70kg per pair
• Locking device
• Mortise pins

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of galvanized steel
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10 C to 40 C
• Storage and transport temperature -20 C to max. 80 C

Notes:The locking device fixes the guide in closed position.The insertion pins allow quick and tool-free assembly and disassembly of the drawer, for example for cleaning purposes.The indicated load capacities are maximum values for a vertically mounted pair of telescopic slides with even load distribution when using all provided mounting positions.
