Telescopic slide over-extension 037 | up to 100 kg | Schock telescopic slides

Description

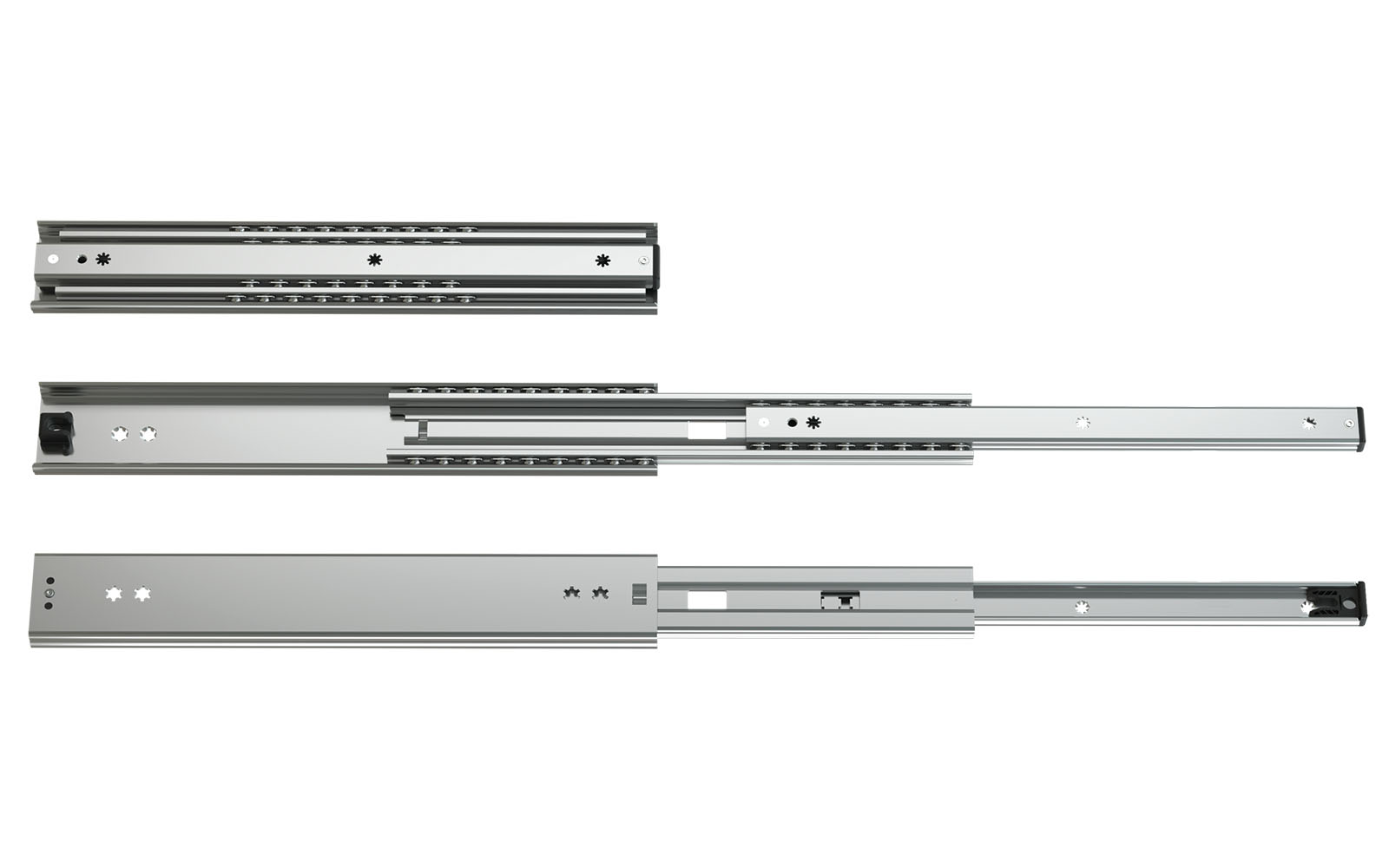

Telescopic slides Schock Metall over extension 037

Article price and sale per piece

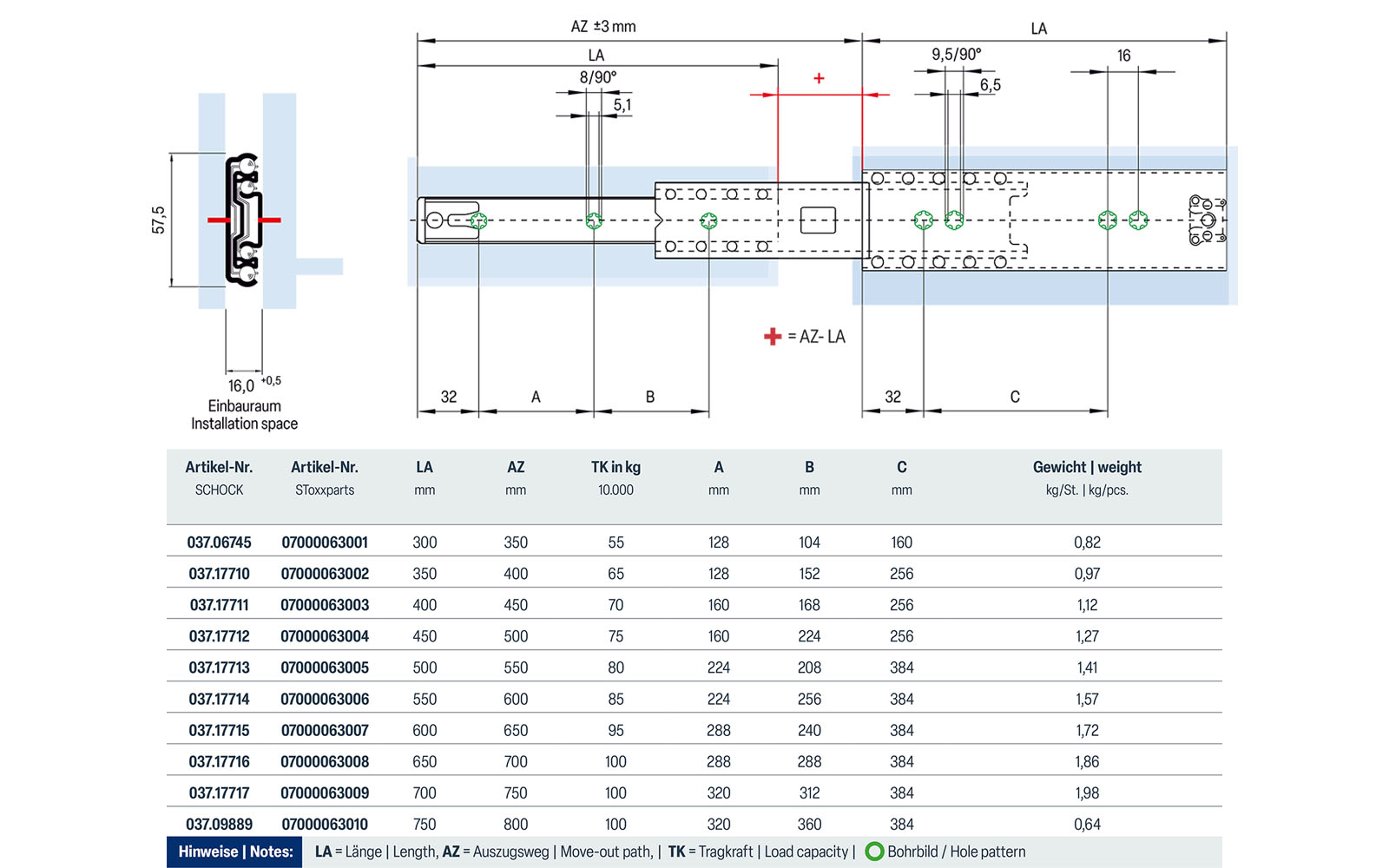

Article No. Schock 037.06745, 037.17710 – 037.17717 as well as 037.09889

Telescopic slides series 037, hot-dip galvanized steel, width 16 mm, over-extension, up to 100 kg at 100.000 cycles

Description:

• Full extension with over-extension
• Load capacity up to 100 kg per pair
• Locking device

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of galvanized steel
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10 C to 40 C
• Storage and transport temperature -20 C to max. 80 C

Notes: The locking device fixes the guide in closed position.The indicated load capacities are maximum values for a vertically mounted pair of telescopic slides with even load distribution when using all provided fixing positions.
