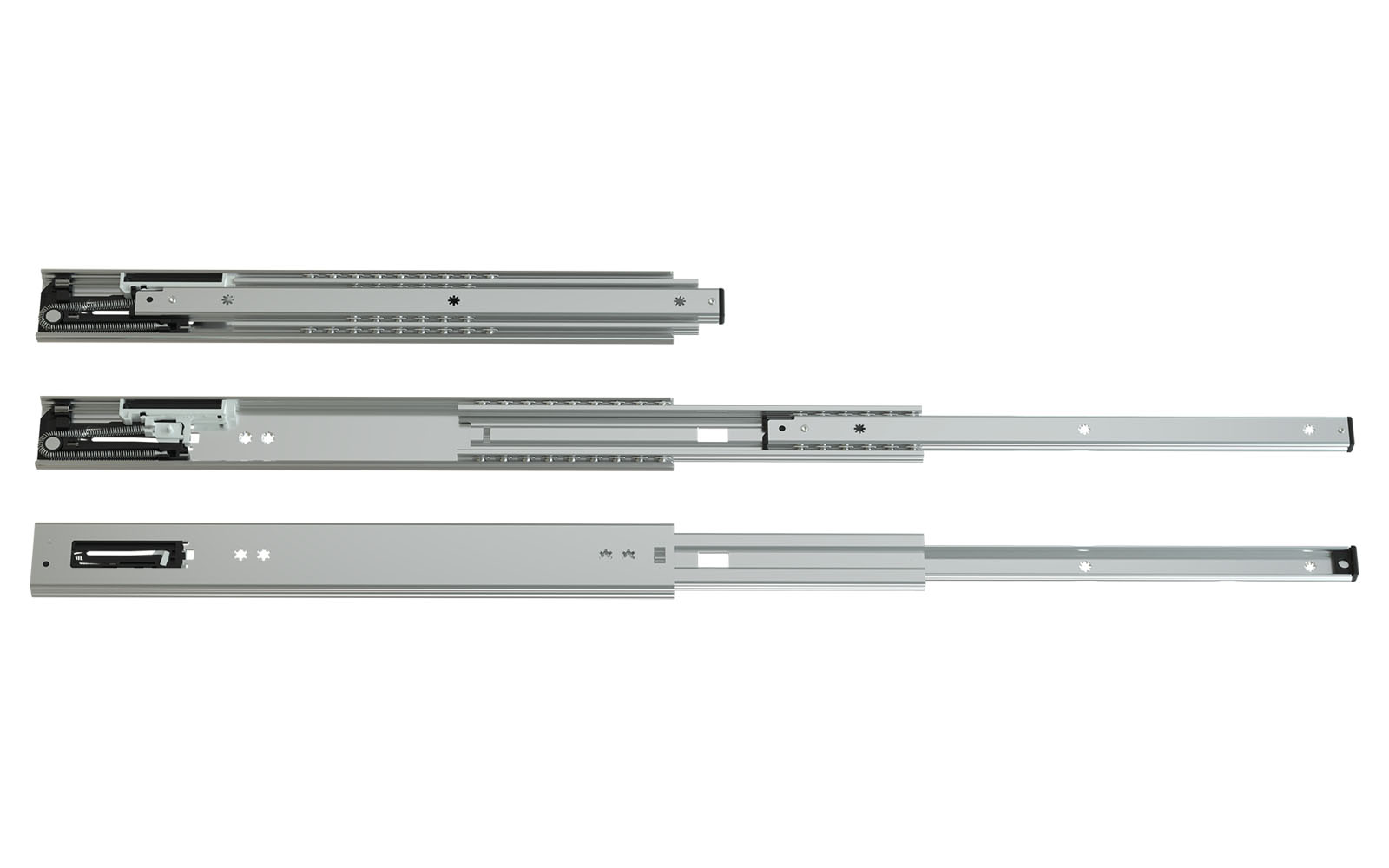

Telescopic slide over extension 037 | up to 100 kg | soft close | Schock telescopic slides

Description

Telescopic slides Schock Metall over extension series 037

Article price and sale per piece

Article No. Schock 037.06807

Telescopic slide series 037, hot-dip galvanized steel, width 16 mm, full extension 1100 mm, up to 90 kg/pair

Dimensions:

• Full extension
• Load capacity up to 90 kg per pair
• Special length 1100 mm
• Locking device

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of galvanized steel
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10 C to 40 C
• Storage and transport temperature -20 C to max. 80 C

Notes:The locking device fixes the guide in closed position.The indicated load capacities are maximum values for a vertically mounted pair of telescopic slides with even load distribution when using all provided fixing positions.In typical applications for particularly long telescopic slides, for example in transport systems and load carriers, additional external stops as well as external locking systems are absolutely necessary due to the extreme load requirements in order to ensure safe operation or transport.
