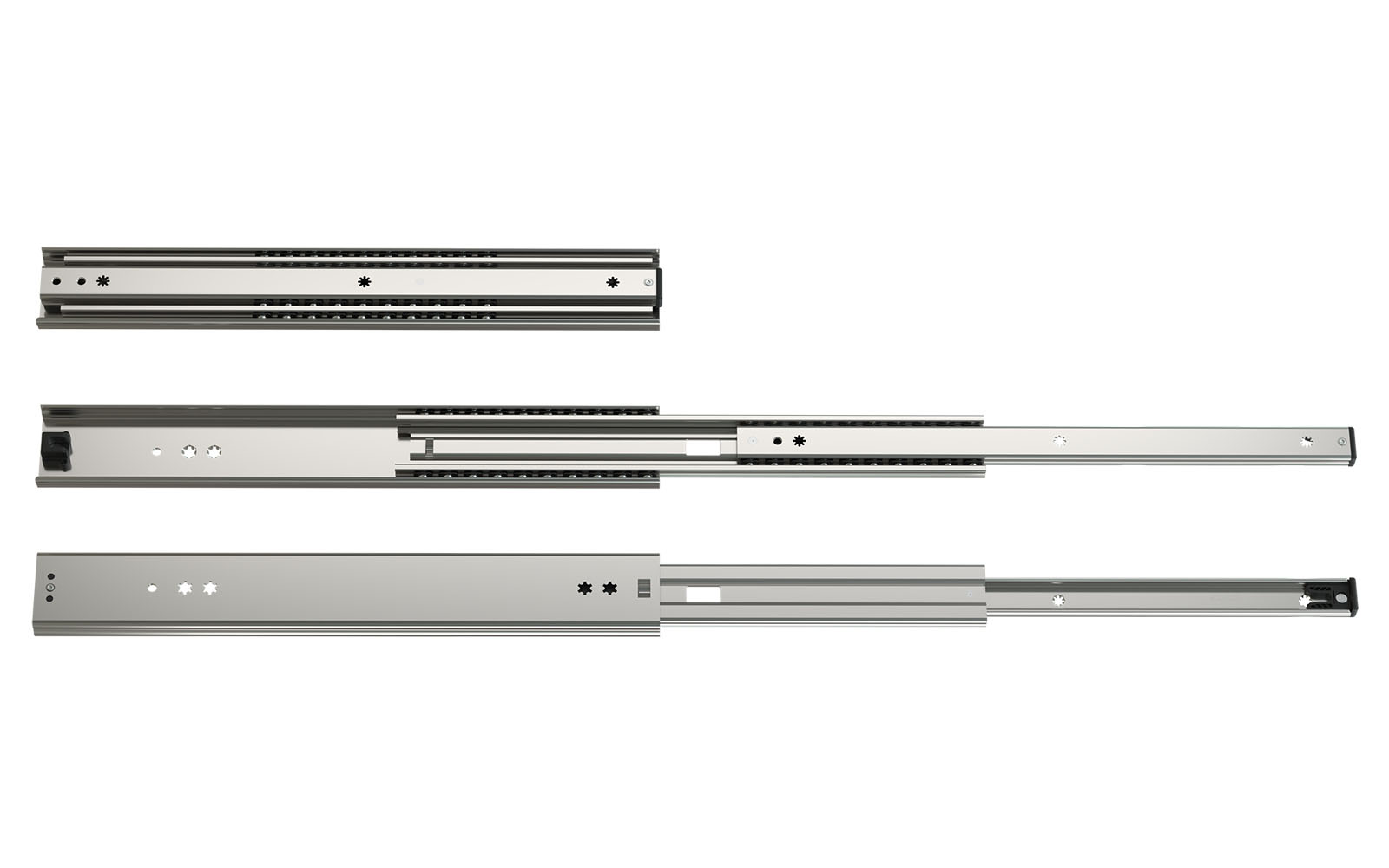

Telescopic slide over extension 038 | up to 100 kg | Schock telescopic slides

Description

Telescopic slides Schock Metal over-extension series 038

Article price and sale per piece

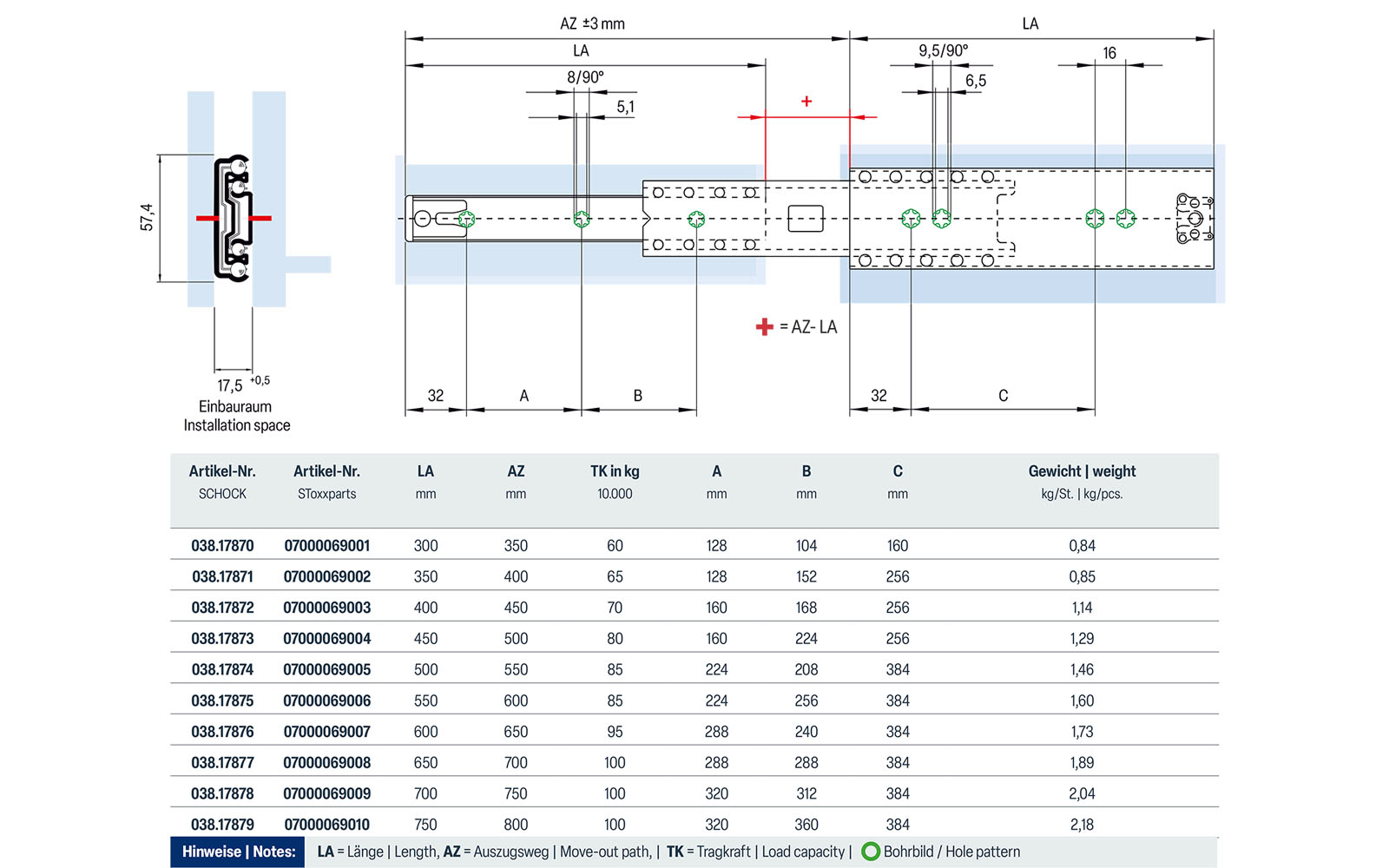

Article No. Schock 038.17870 – 038.17879

Telescopic slides series 038, hot-dip galvanized steel, width 17.5 mm , over-extension, up to 100 kg /pair at 10.000 cycles

Description:

• Full extension with over-extension
• Load capacity up to 100 kg per pair
• Locking device

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of galvanized steel
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10 C to 40 C (50 F to 104 F)
• Storage and transport temperature -20 C to max. 80 C (-4 F to 176 F)

Notes: The locking device fixes the guide in the closed position. The specified load capacities are maximum values for a vertically mounted pair of telescopic slides with uniform load distribution when all the intended mounting positions are used. For horizontally mounted telescopic slides, the load capacity is reduced by approx. 70%.
