Telescopic slide over extension 038 | up to 100 kg | insertion pins | Schock telescopic slides

Description

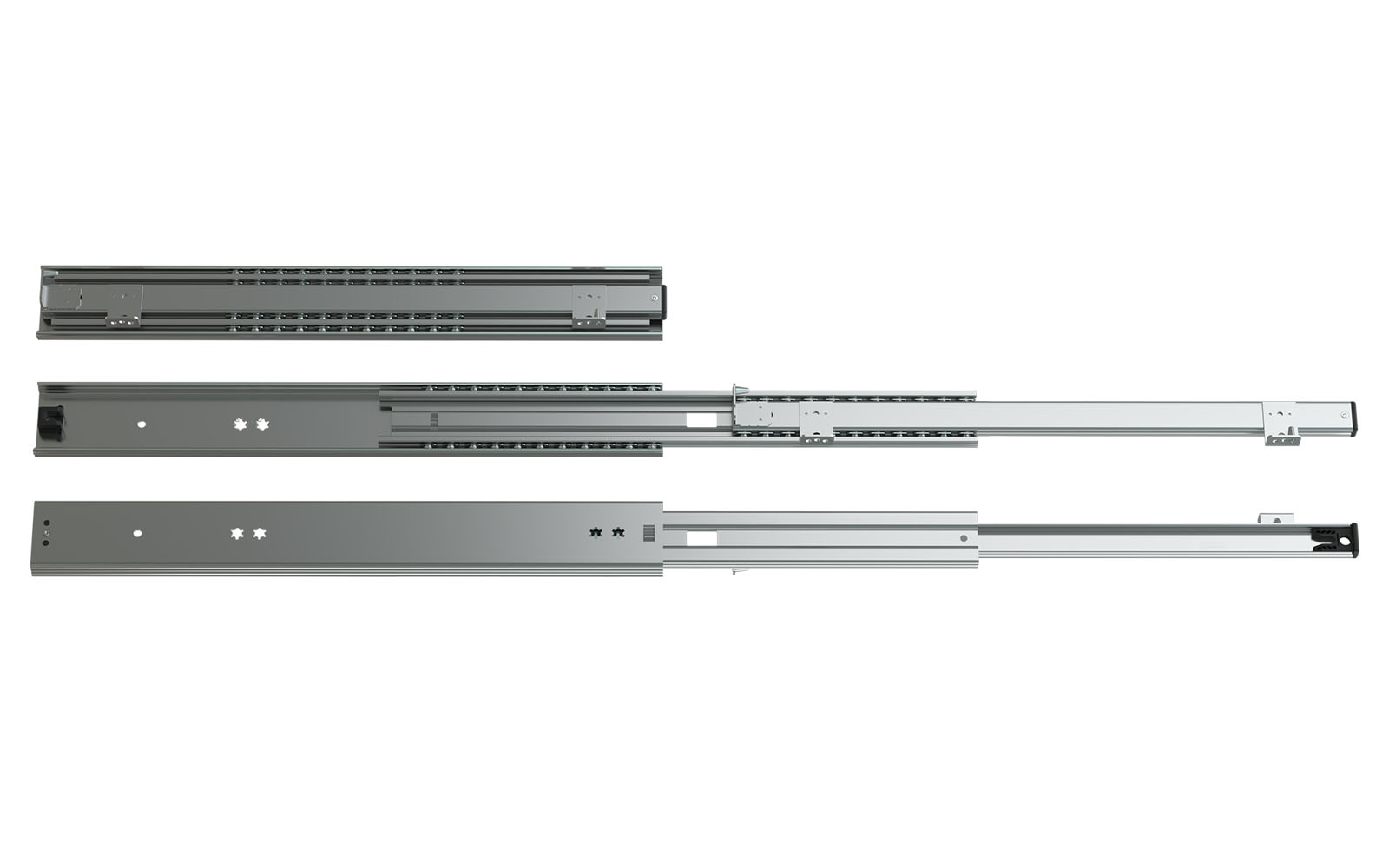

Telescopic slides Schock Metall over-extension series 038

Article price and sale per piece.

ATTENTION: Rail consisting of one left and one right rail see family table. You need for a drawer two versch.

Article No. Schock 038.17700 – 038.17709

Series 038 telescopic slides, hot-dip galvanized steel, width 19 mm, over-extension, insertion pins, up to 70kg/pair at 100,000 cycles

Description:

• Full extension with over-extension
• Load capacity up to 70kg per pair
• Locking device
• Mortise pins

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of galvanized steel
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10 C to 40 C
• Storage and transport temperature -20 C to max. 80 C

Notes: The locking device fixes the guide in closed position.The insertion pins allow quick and tool-free assembly and disassembly of the drawer, for example, for cleaning purposes.The specified load capacities are maximum values for a vertically mounted pair of telescopic slides with even load distribution when using all provided fastening positions.
