Telescopic slide over extension 040 | up to 30 kg | length 310 mm | Schock telescopic slides

Description

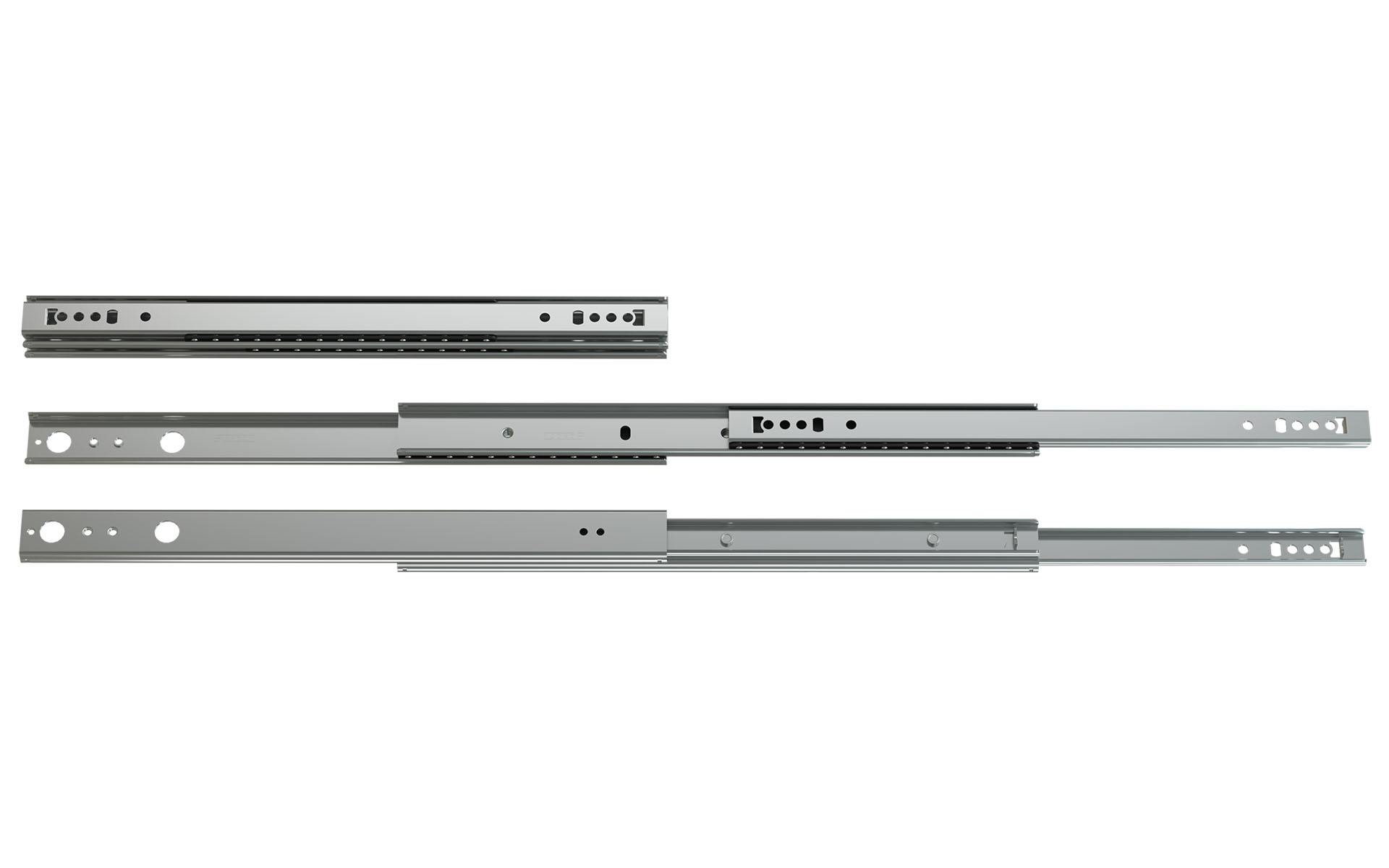

Telescopic slide Schock Metall over extension series 040

Item price and sale per piece

Schock standard program: Article No. 040.17474

Article group: Telescopic slide series 040, steel, width 20 mm, over-extension, up to 20 kg at 100.000 cycles

Description:

• Full extension with over-extension
• Load capacity up to 30 kg per pair
• Extendable on both sides

Material: Slides made of hot-dip galvanized steel Ball cages made of plastic Balls made of hardened carbon steel Temperature range: Operating temperature 10 C to 40 CStorage and transport temperature -20 C to max. 80 C Notes: Telescopic slides extendable on both sides are suitable for different drawer depths. The specified load capacities are maximum values for a vertically mounted pair of telescopic slides with even load distribution when using all provided mounting positions.
