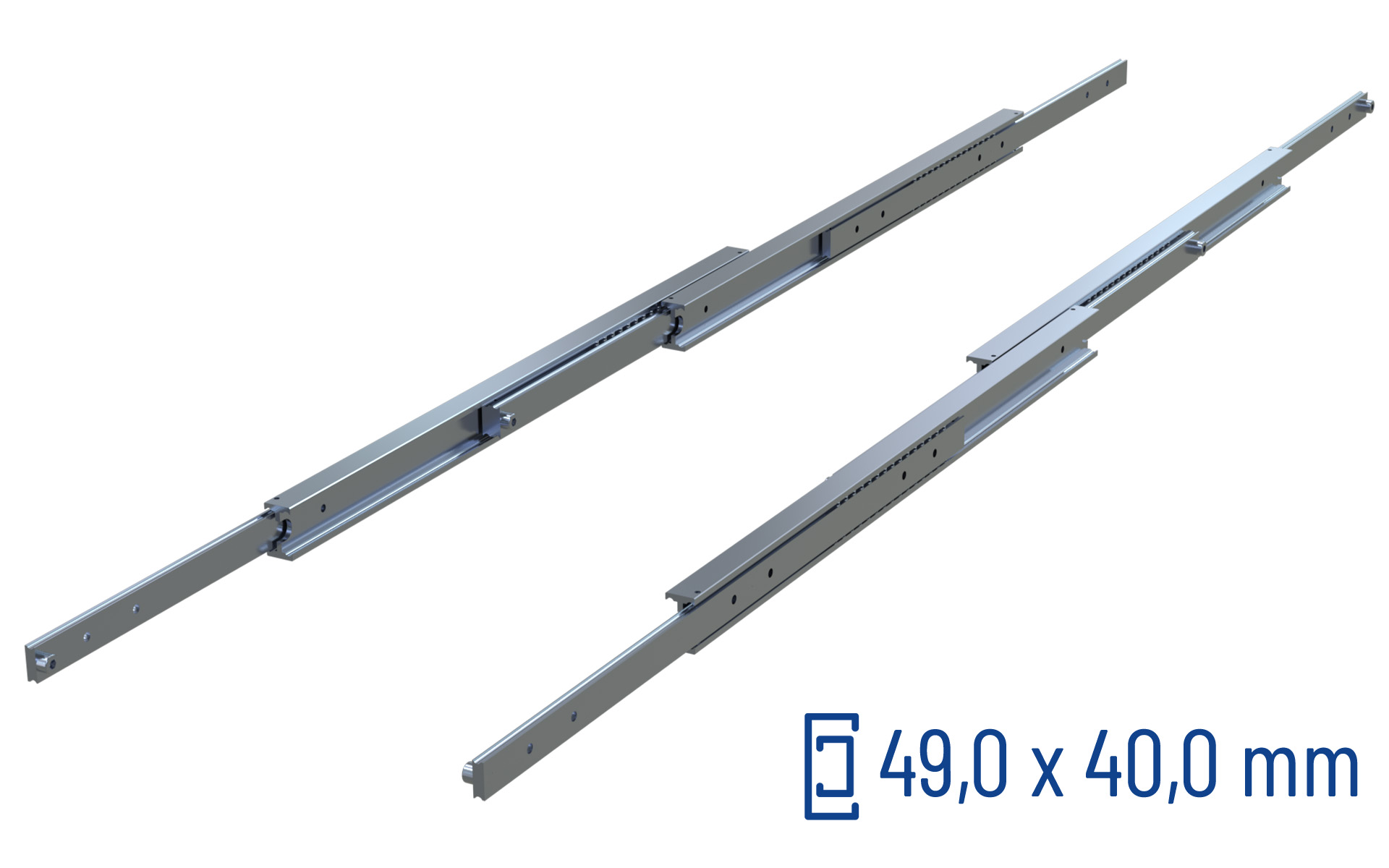

Telescopic slide over extension SDDTS-40 | up to 50 kg | Schock telescopic slides

Description

The telescopic slides of the SDDTS series offer a standard extension of 200%. The manufacturing of the guide elements from solid material provides this slide with high rigidity, making it suitable for demanding applications.

Extension: 200%
Material: Stainless steel 316L (1.4404)
Length: 200 mm to 1200 mm

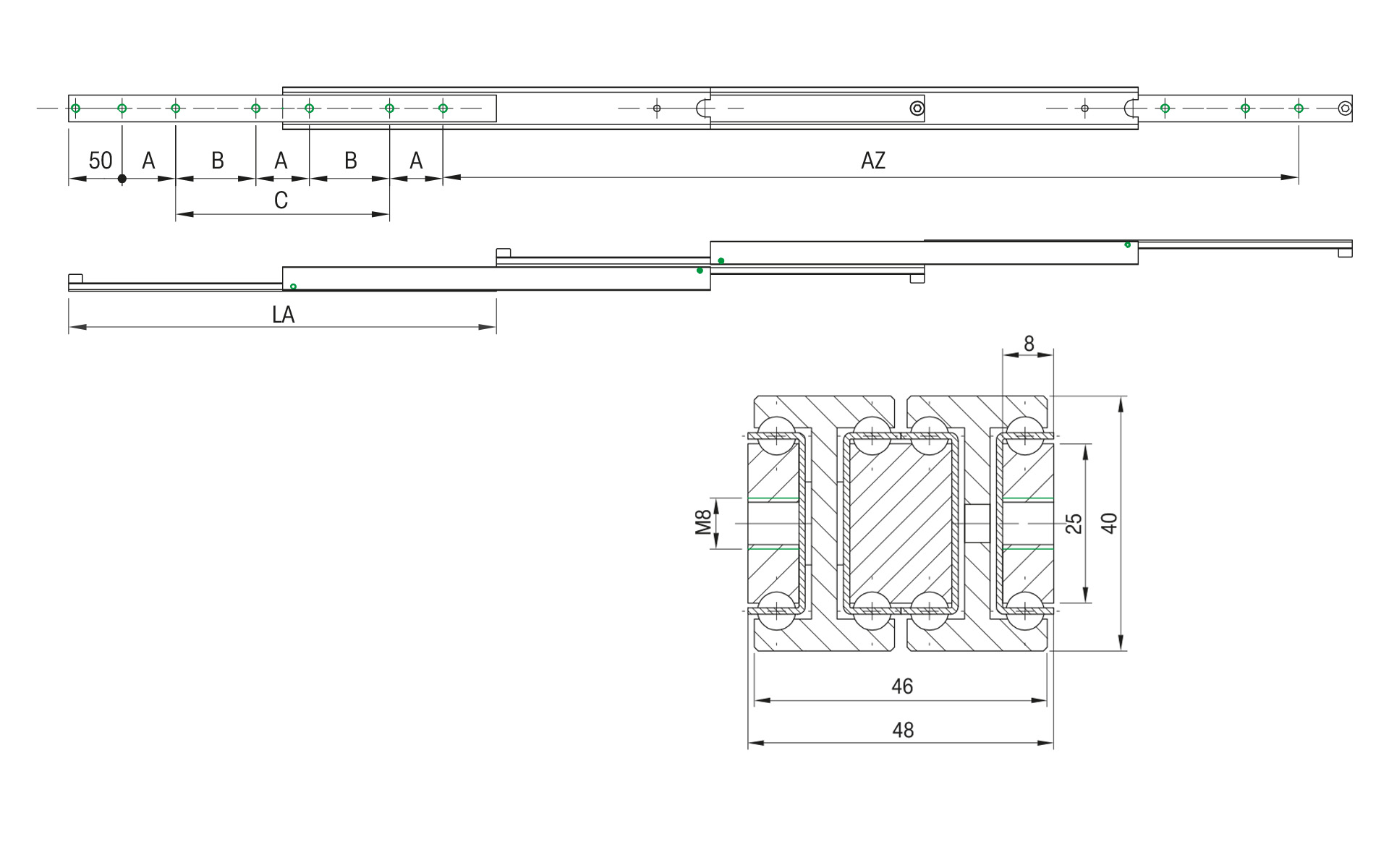

Cross-section: 48 x 40 mm
Extension path: 400 mm to 2400 mm
Load capacity: up to 50 kg/pair
Operating temperature: -10 to +150 C

The stainless steel telescopic slides of the SDDTS series are characterized by high precision and excellent shock and vibration resistance. The movable I-beams make the telescopic slides robust against loads in the extended state. This makes them ideal for dynamic applications with high loads and torques while minimizing deflection.

Applications include military truck drawers, offshore storage, and splash water environments aboard ships. The use of stainless steel ensures corrosion resistance.

The telescopic slides of the SDDTS series are made without any plastic components and are therefore suitable for use at extreme temperatures. Due to the materials used, these slides have a low electromagnetic signature, making them ideal for defense applications.

Additional variants for special applications can be produced with alternative closed lengths, extensions, mounting systems, surface treatments, and bearings.

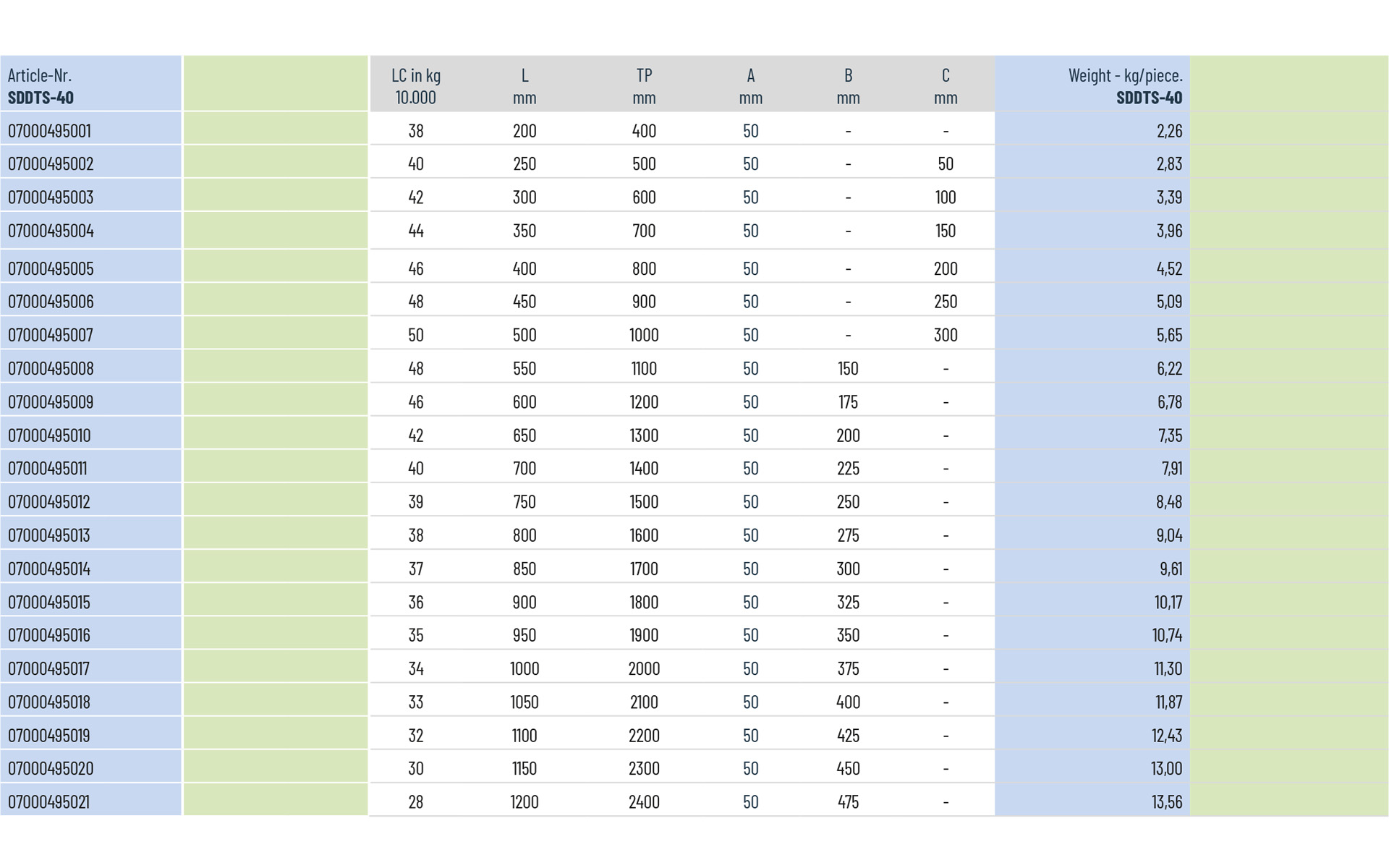

Load Capacities:
The telescopic slides offer high load capacity and compact dimensions. The maximum load capacity is specified for fully extended slide pairs installed in the main axis direction, with the load evenly distributed over the inner slide.

Note:
As these telescopic slides are custom-made for you upon order, they are excluded from returns. The slides are securely delivered with high-quality wooden packaging.
