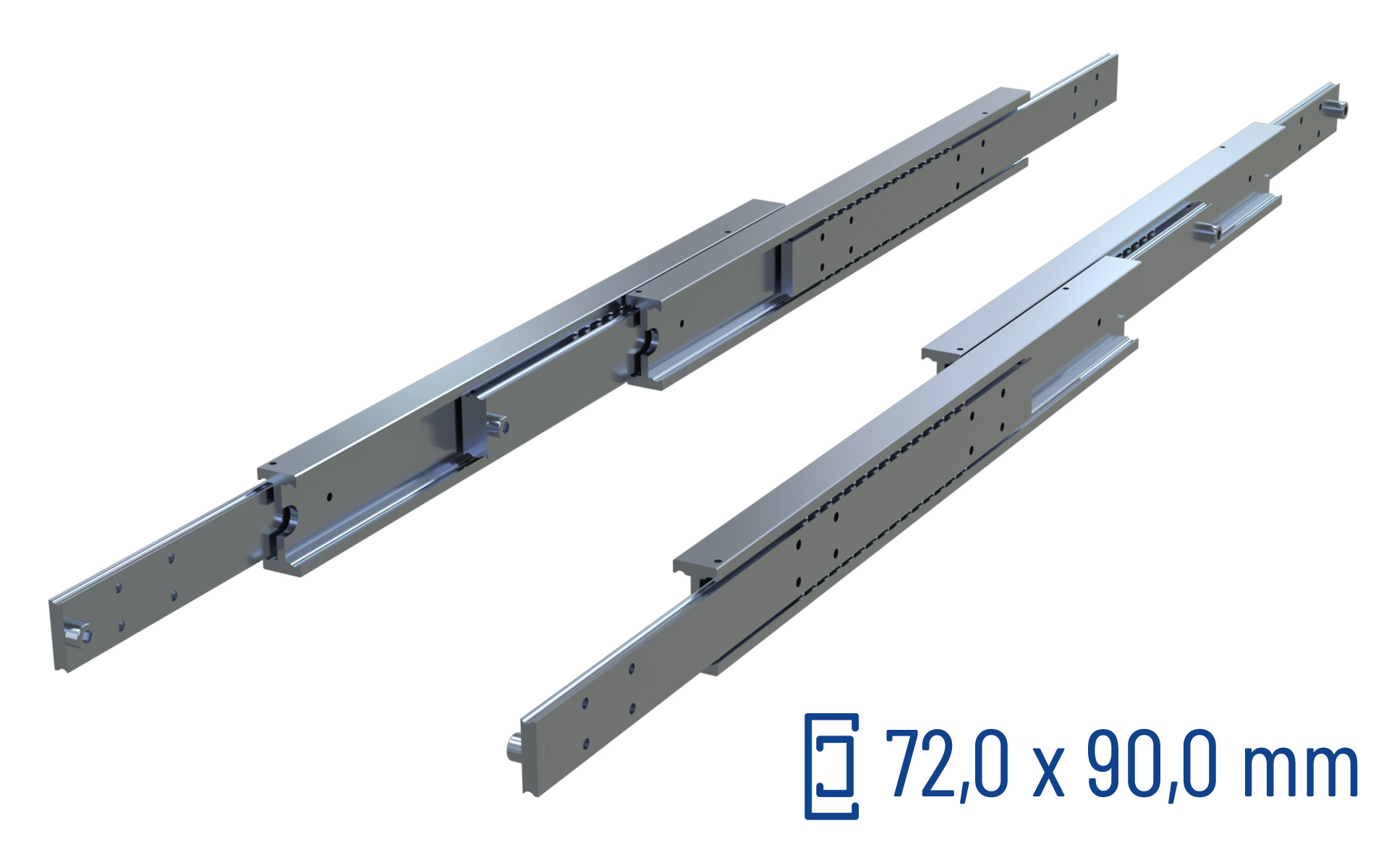

Telescopic slide over extension SDDTS-90 | up to 170 kg | Schock telescopic slides

Description

The telescopic slides of the SDDTS series offer a standard extension of 200%. The manufacturing of the guide elements from solid material provides this slide with high rigidity, making it suitable for demanding applications.

Extension: 200%
Material: Stainless steel 316L (1.4404)
Length: 300 mm to 1600 mm

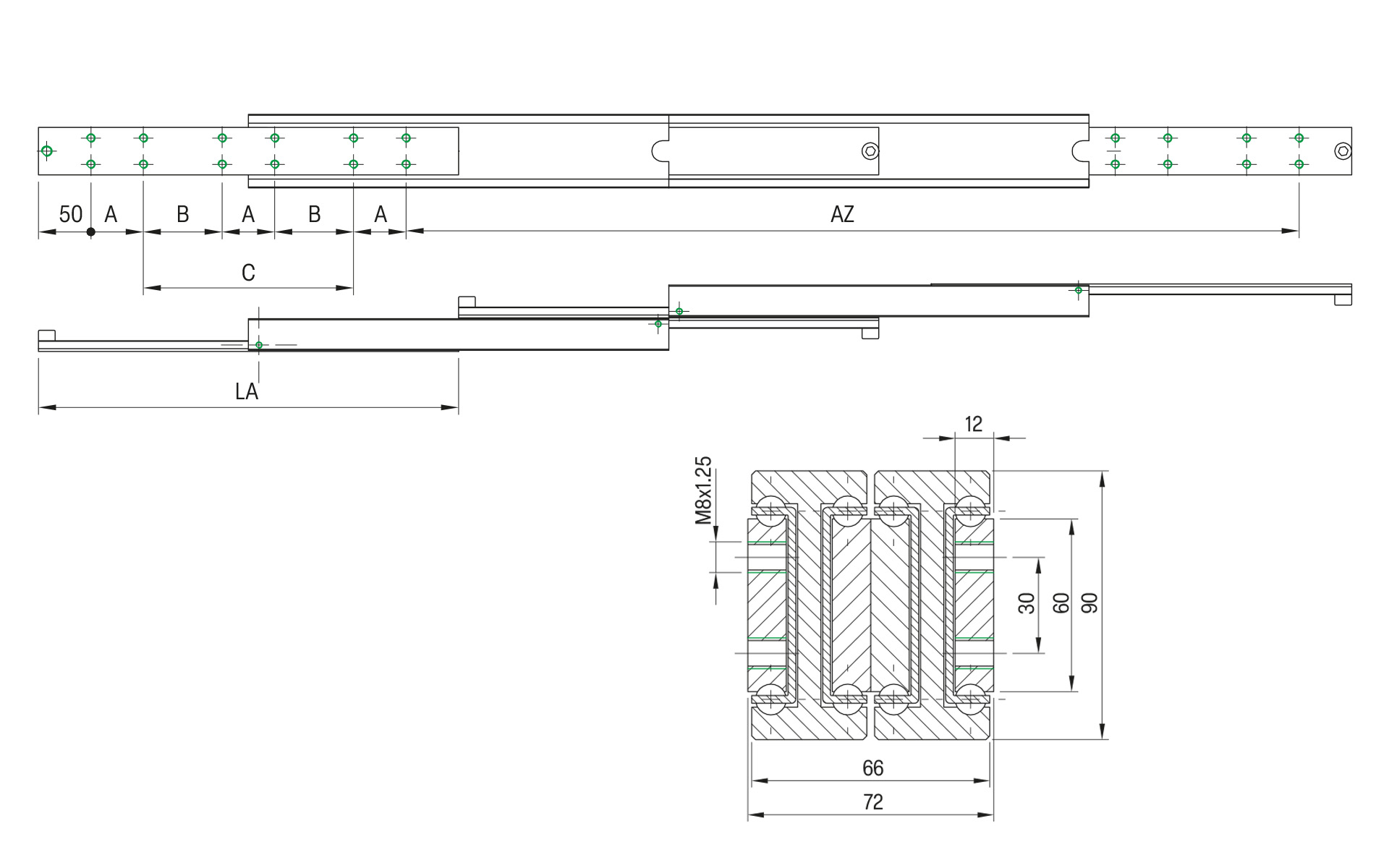

Cross-section: 72 x 90 mm
Extension path: 600 mm to 3200 mm
Load capacity: up to 170 kg/pair
Operating temperature: -40 to +200 C

The stainless steel telescopic slides of the SDDTS series are characterized by high precision and excellent shock and vibration resistance. Applications include military truck drawers, offshore storage, and splash water environments aboard ships. The use of stainless steel ensures corrosion resistance.

The telescopic slides of the SDDTS series are made without any plastic components and are therefore suitable for use at extreme temperatures. Due to the materials used, these slides have a low electromagnetic signature, making them ideal for defense applications.

Additional variants for special applications can be produced with alternative closed lengths, extensions, mounting systems, surface treatments, and bearings.

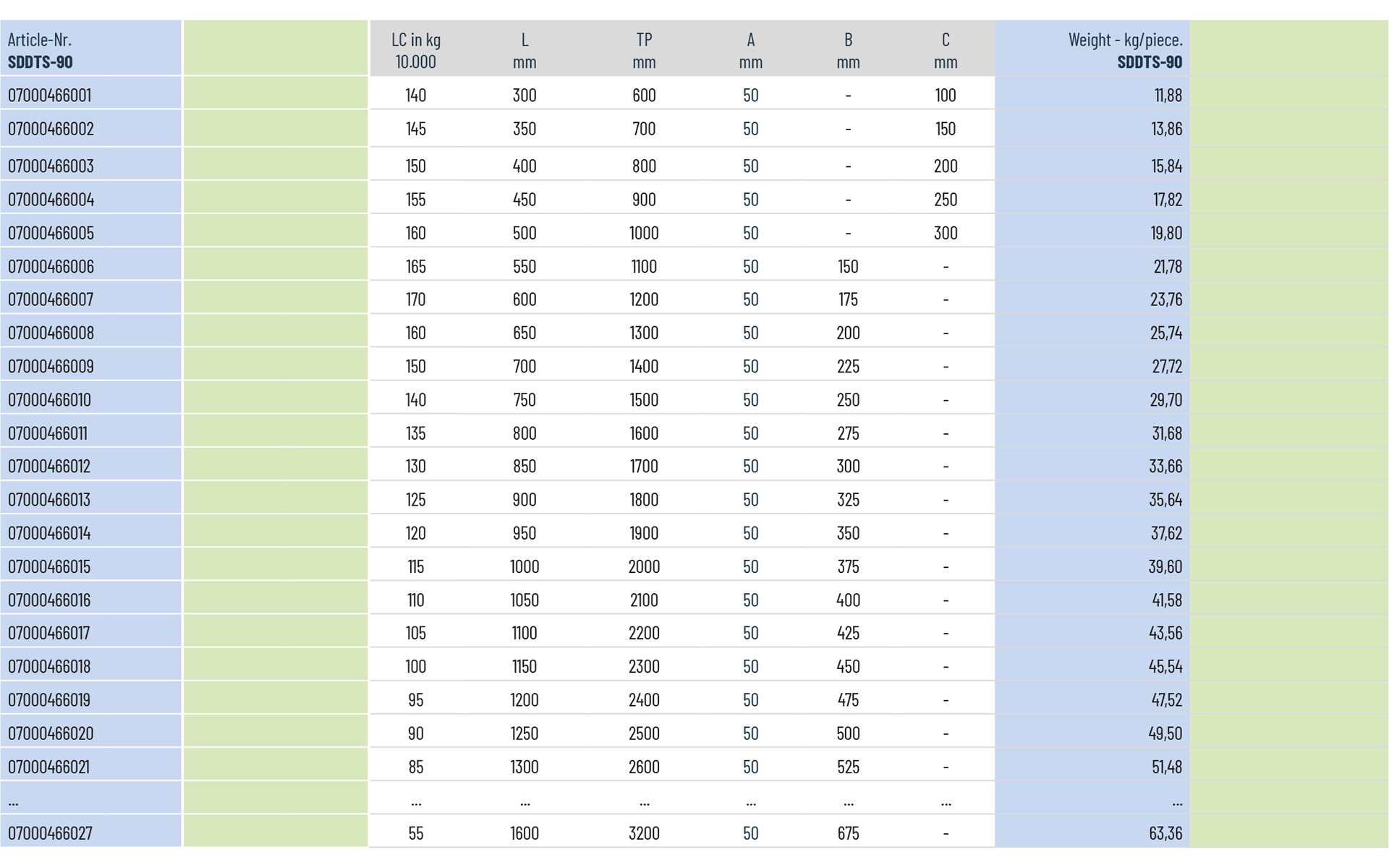

Load Capacities:
The telescopic slides offer high load capacity and compact dimensions. The maximum load capacity is specified for fully extended slide pairs installed in the main axis direction, with the load evenly distributed over the inner slide.

Note:
As these telescopic slides are custom-made for you upon order, they are excluded from returns. The slides are securely delivered with high-quality wooden packaging.
