Description

Functions:

• Soft-close
• Hold-out

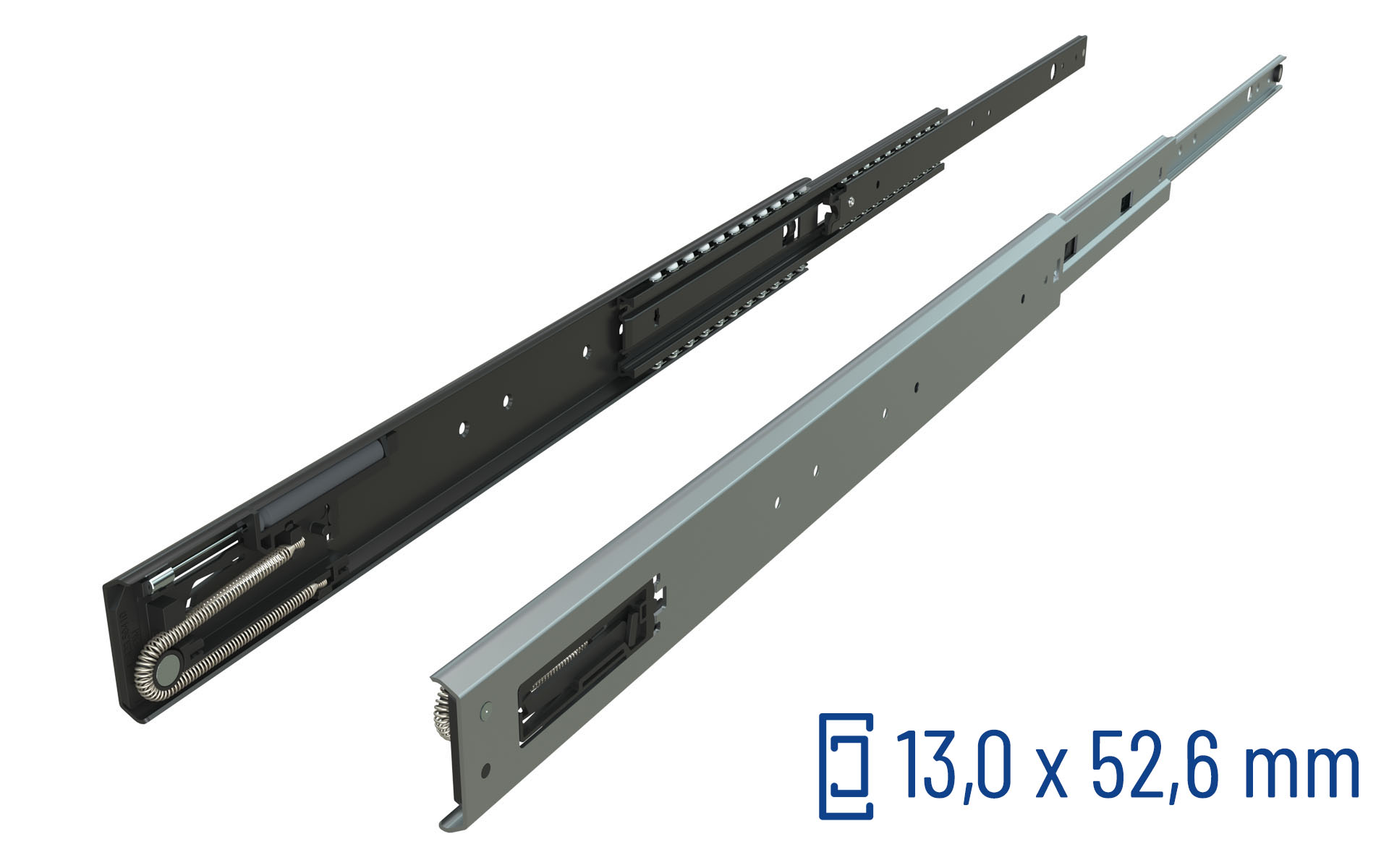

Schock telescopic slide Over extension Series 036

The Schock telescopic slide Over extension Series 036 is the ideal solution for a wide range
of applications where ease of use and seamless accessibility
are essential.

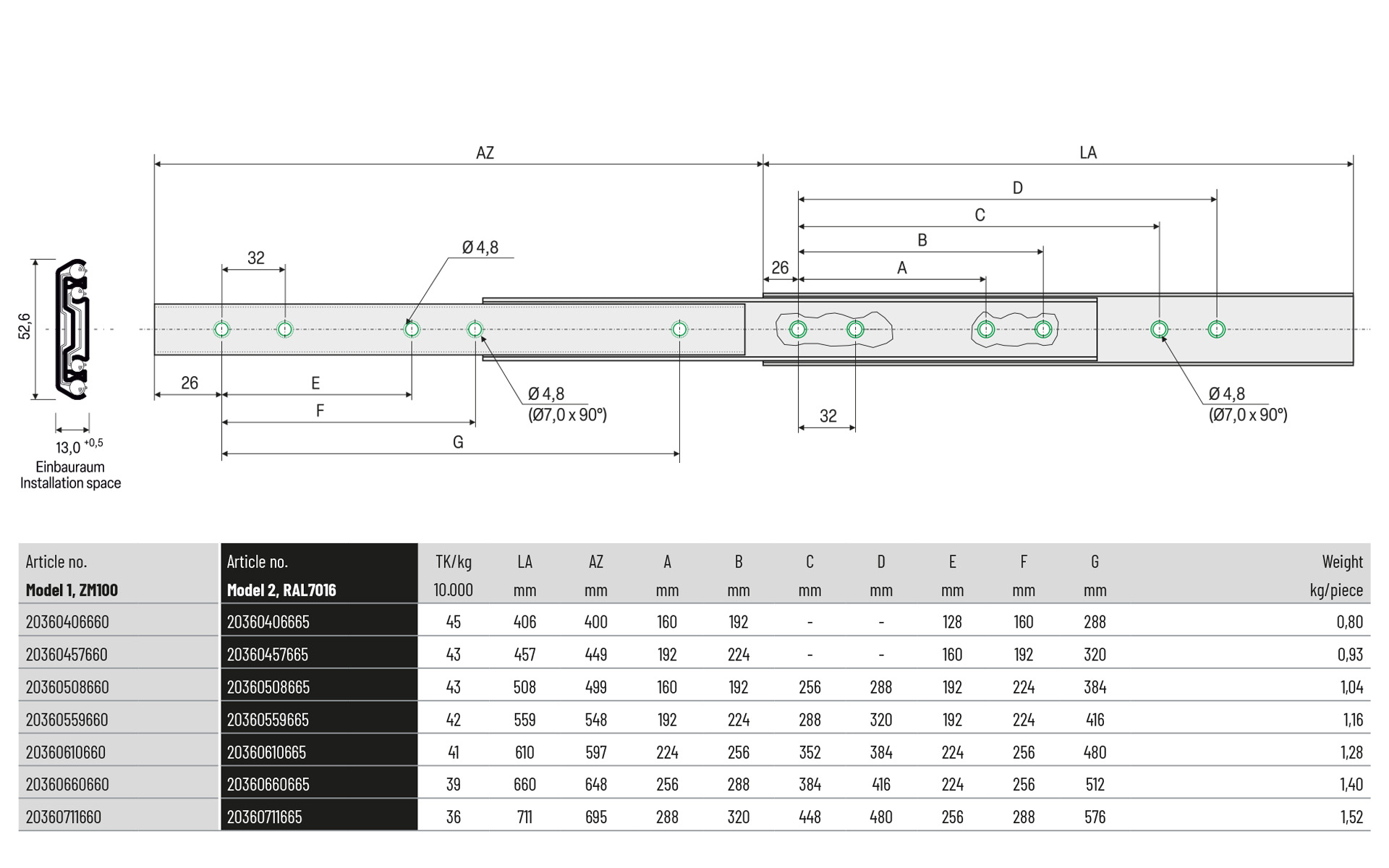

With dimensions of 13.0 x 52.6 mm (w/h) and available lengths from 305 mm to 711 mm,
they offer exceptional flexibility and adaptability for various projects.

These Over extensions come with a comprehensive range of useful functions,
including a soft-close and a hold-out.

These functions not only ensure safe handling but also provide
comfortable and reliable use.

The Schock Over extension telescopic slides of Series 036 are versatile,
as they are suitable for both vertical and horizontal mounting. This enables
their seamless integration into a wide range of projects.

Technical Data:

• Load capacity up to 40 kg/pair at 10,000 cycles

Material:

• Rails made of galvanized steel (ZM100)
• Ball cages made of galvanized steel (ZM70)
• Balls made of hardened C-steel

Temperature Range:

• Operating temperature: -20 C to +70 C
• Operating temperature with Soft-Close: +10 C to +40 C

Notes:

The specified load capacities are maximum values for a vertically mounted
telescopic slide pair with even load distribution using all designated
mounting positions.

WARNING: In case of flat mounting , the load capacity is reduced by up to 75%.
