Telescopic slide over extension Series 044 | Disconnect/Lock-out | Schock telescopic slides

Description

Functions:

• Lock-out
• Disconnect
• Air Motion smooth-action ball mix

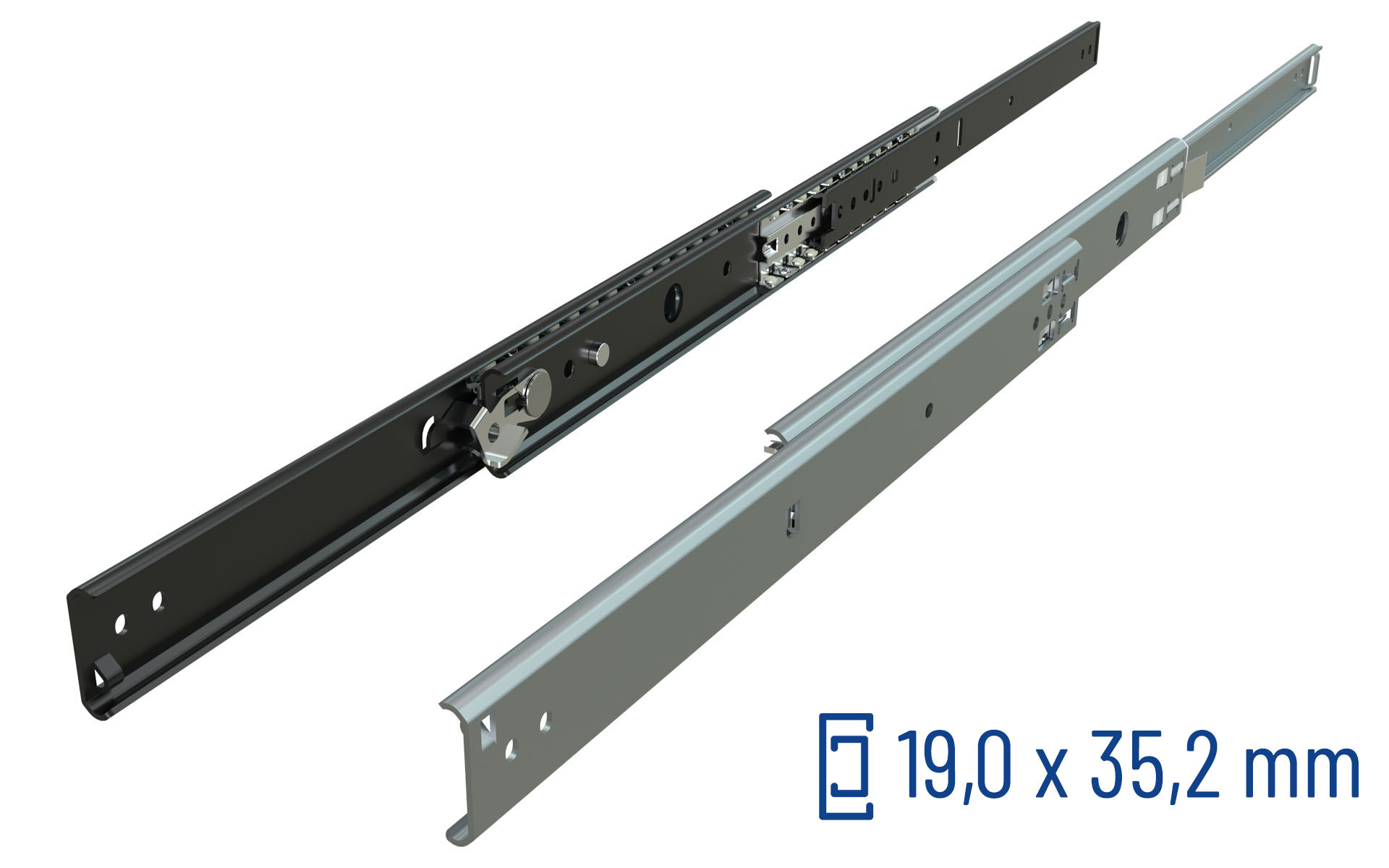

Schock telescopic slide Over extension Series 044

The Schock telescopic slide Over extension Series 044 is the ideal solution for a wide range
of applications where ease of use and seamless accessibility
are essential.

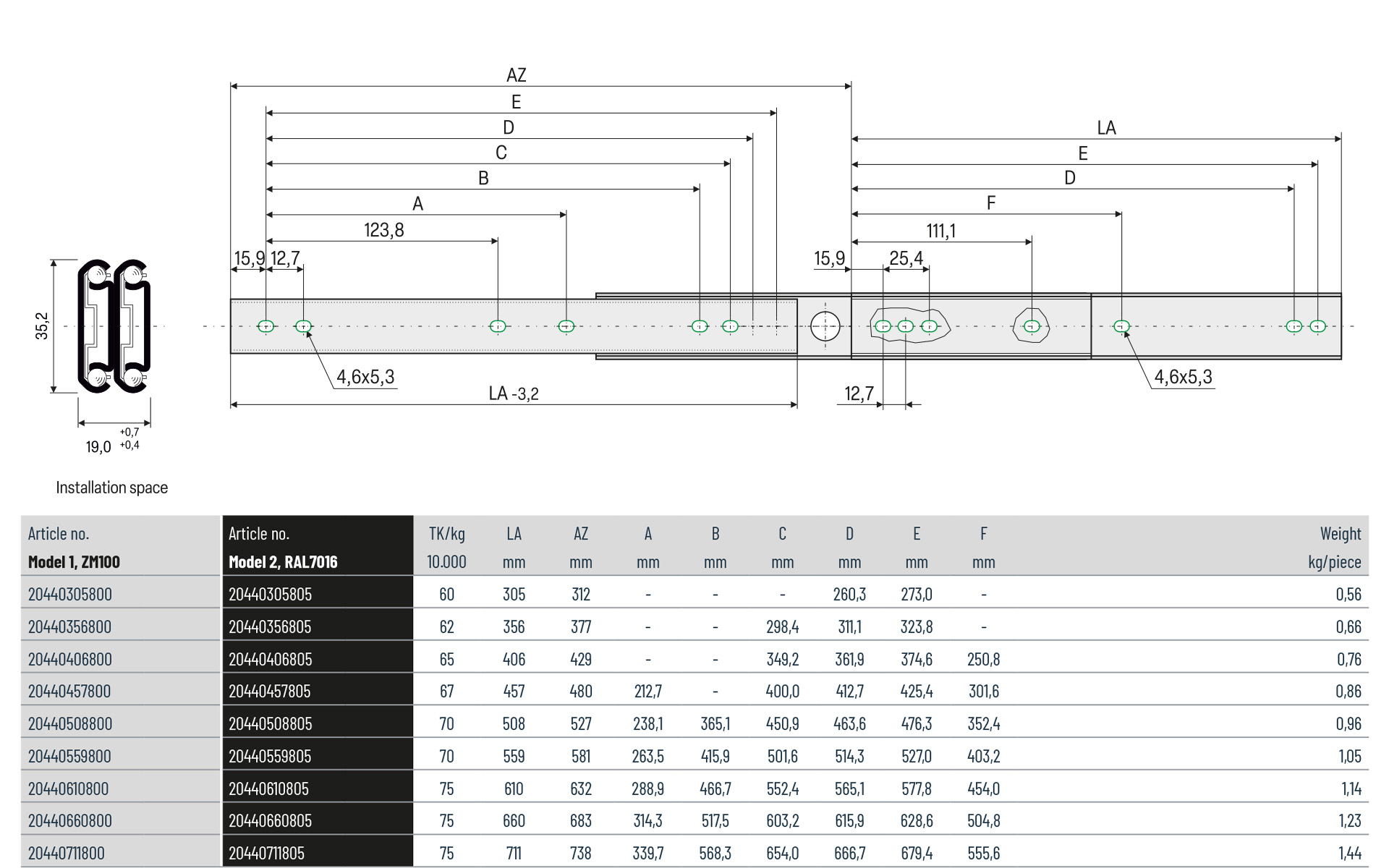

With dimensions of 19.0 x 35.2 mm (w/h) and available lengths from 305 mm to 711 mm,
they offer exceptional flexibility and adaptability for various projects.

These Over extensions come with a comprehensive range of useful functions,
including a lock-out, a disconnect, and Air Motion smooth-action, our patented
ball mix of metal and plastic balls.

These functions not only ensure safe handling but also provide
comfortable and reliable use.

The Schock Over extension telescopic slides of Series 044 are versatile,
as they are suitable for both vertical and horizontal mounting. This enables
their seamless integration into a wide range of projects.

Technical Data:

• Load capacity up to 75 kg/pair at 10,000 cycles

Material:

• Rails made of galvanized steel (ZM100)
• Ball cages made of galvanized steel (ZM70)
• Balls made of hardened C-steel

Temperature Range:

• Operating temperature: -20 C to +70 C
• Operating temperature with Soft-Close: +10 C to +40 C

Notes:

The specified load capacities are maximum values for a vertically mounted
telescopic slide pair with even load distribution using all designated
mounting positions.

WARNING: In case of flat mounting , the load capacity is reduced by up to 75%.
