Description

Telescopic slides Schock Metal partial extension series 010

Item price and sale per piece

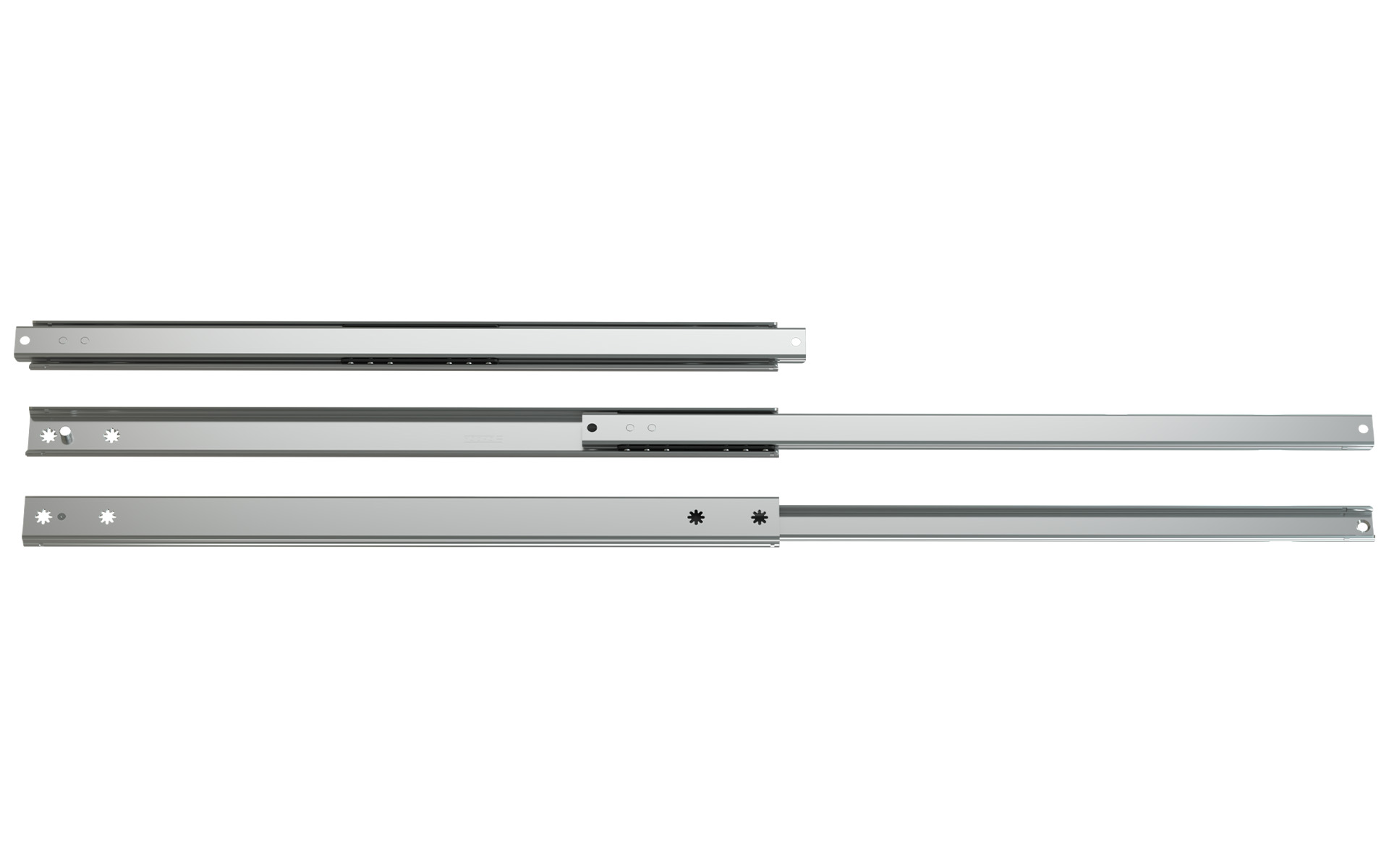

Telescopic slides Series 010, hot-dip galvanized steel, width 10 mm , partial extension with center detent

• Partial extension slide
• Load capacity up to 15 kg per pair
• Extendable on both sides with center detent
• Length: 340 mm
• Pull-out travel: 260 mm on both sides

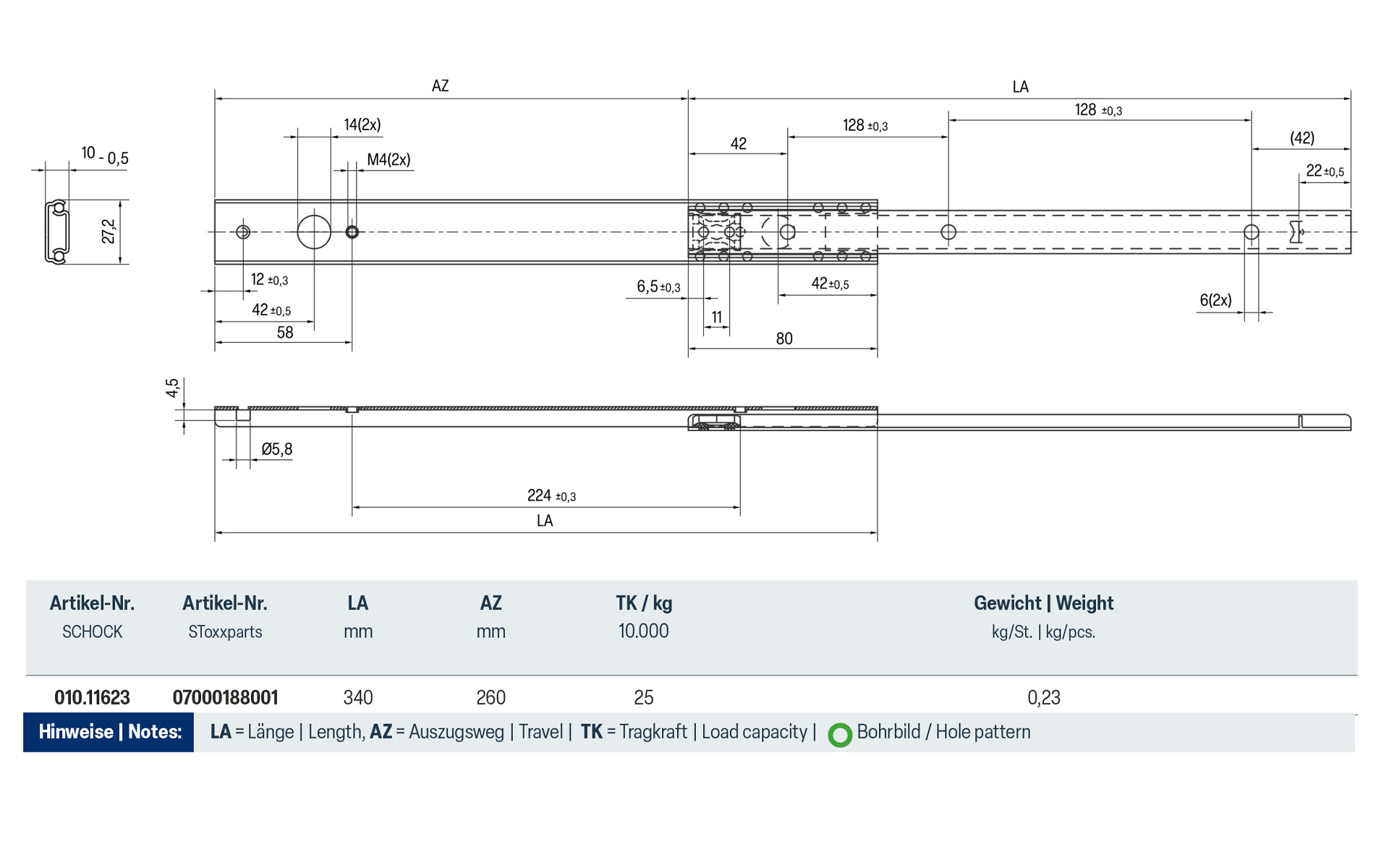

• Hole pattern outer rail: 2 x M4 thread (58 – 224 mm)
• Hole pattern inner rail: 3 x hole D 6 mm (42 – 128 – 128 mm)

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of plastic
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10 C to 40 C (50 F to 104 F)
• Storage and transport temperature -20 C to max. 80 C (50 F to 176 F)

Notes: The center detent fixes extendable runners on both sides in closed position. The indicated load capacities are maximum values for a vertically mounted pair of telescopic slides with even load distribution when using all provided mounting positions. Mounting vertically with side recesses on the drawer front or horizontally with shadow gap under the drawer. The load capacity for horizontal mounting is approx. 60% less than for vertical mounting.
