Telescopic slide partial extension 010 | up to 25 kg | Length 402 mm | Schock telescopic slides

 36,36

  • Cross section 10 x 27,2 mm
  • Length 402 mm
  • Extendable on both sides
  • center detent

10 in stock

SKU: 07000386001 Category:

Description

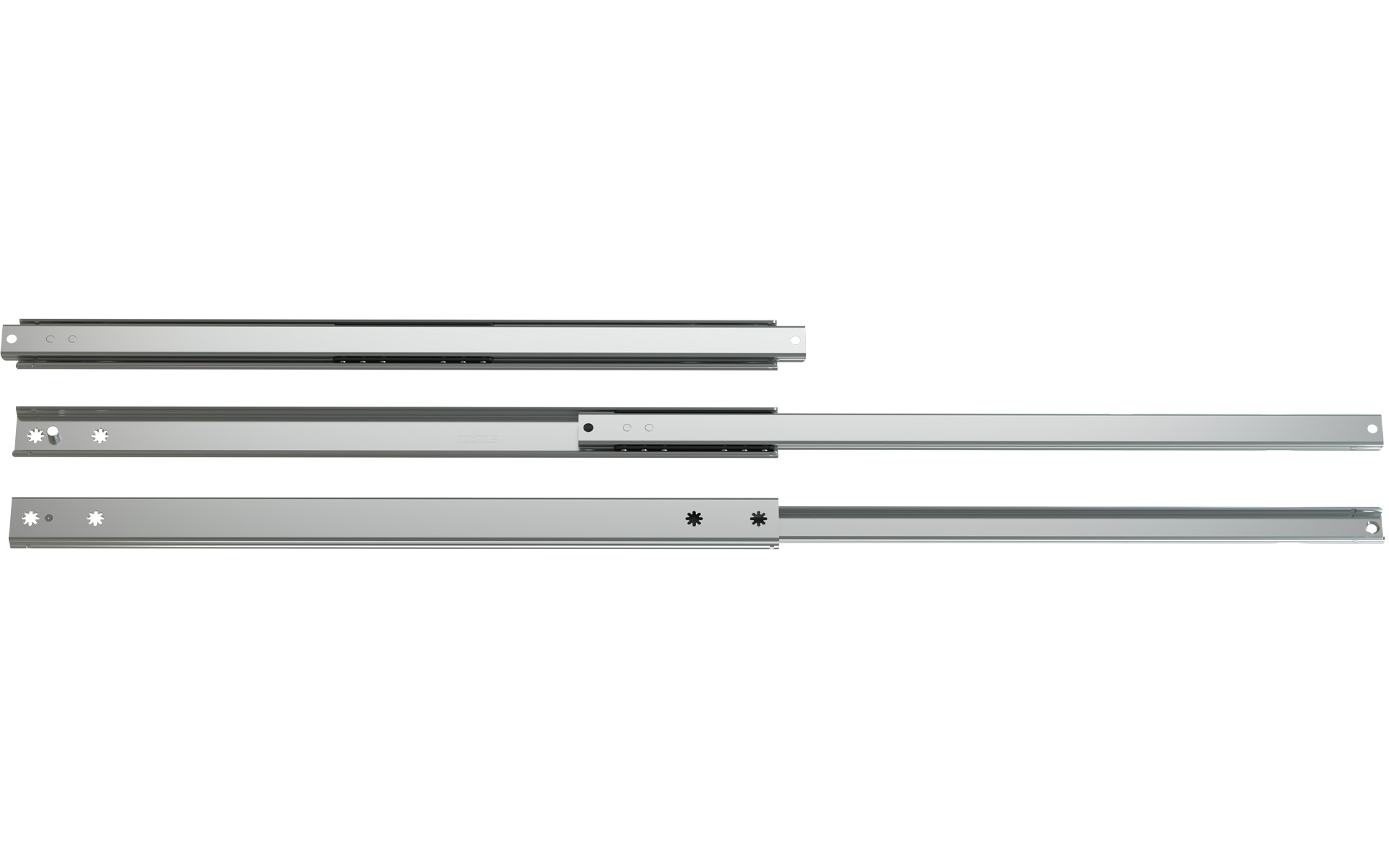

Telescopic slides Schock Matal partial extension series 010

Item price and sale per piece

Telescopic slides Series 010, hot-dip galvanized steel, width 10 mm, partial extension with center detent

  • Partial extension slide
  • Load capacity up to 15 kg per pair
  • Extendable on both sides with center detent
  • Length: 402 mm
  • Extension path: 292 mm on both sides
  • Hole pattern outer rail: 2 x countersunk hole 90 D 5.1 x 7.4 mm (10 – 360 mm)
  • Hole pattern inner rail: 2 x countersunk hole 90 D 5.1 x 7.4 mm (5 – 391.5 mm)

Material:

  • Rails made of hot-dip galvanized steel
  • Ball cages made of plastic
  • Balls made of hardened carbon steel

Temperature range:

  • Operating temperature 10 C to 40 C
  • Storage and transport temperature -20 C to max. 80 C

Notes:The center detent fixes extendable guides on both sides in closed position.The indicated load capacities are maximum values for a vertically mounted pair of telescopic slides with even load distribution when using all provided mounting positions.Mounting vertically with side recesses on the drawer front or horizontally with shadow gap under the drawer. The load capacity for horizontal mounting is approx. 60% less than for vertical mounting.

Additional information

Weight 0,25 g
Dimensions 402 × 10 × 27,2 mm
Slide length

Travel path

Load Capacity

Cross section

Material

Special feature

Extract type
