Telescopic slide partial extension 012 | up to 70 kg | Schock telescopic slides

Description

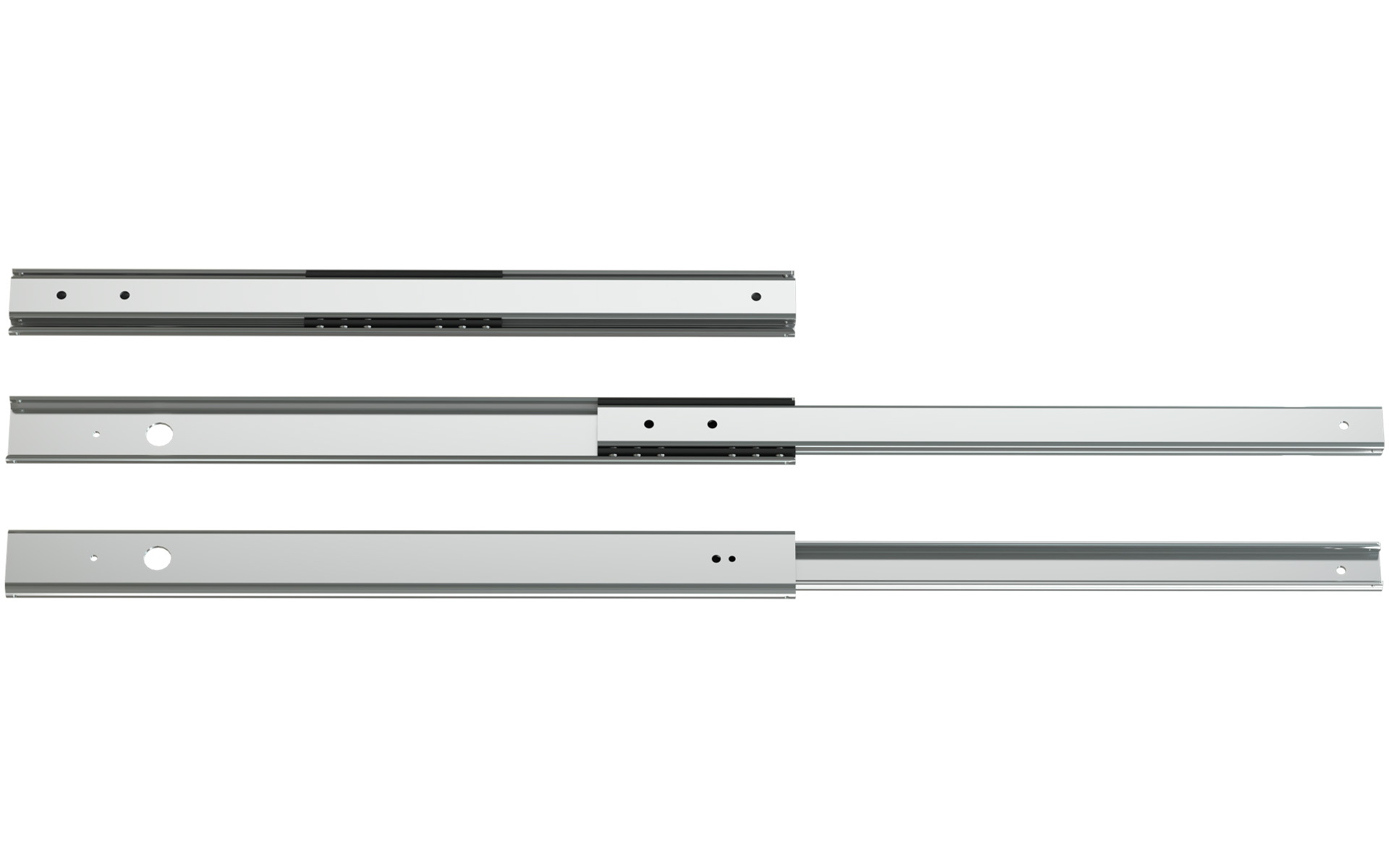

Telescopic slides Schock Metal partial extension series 012

Article price and sale per piece

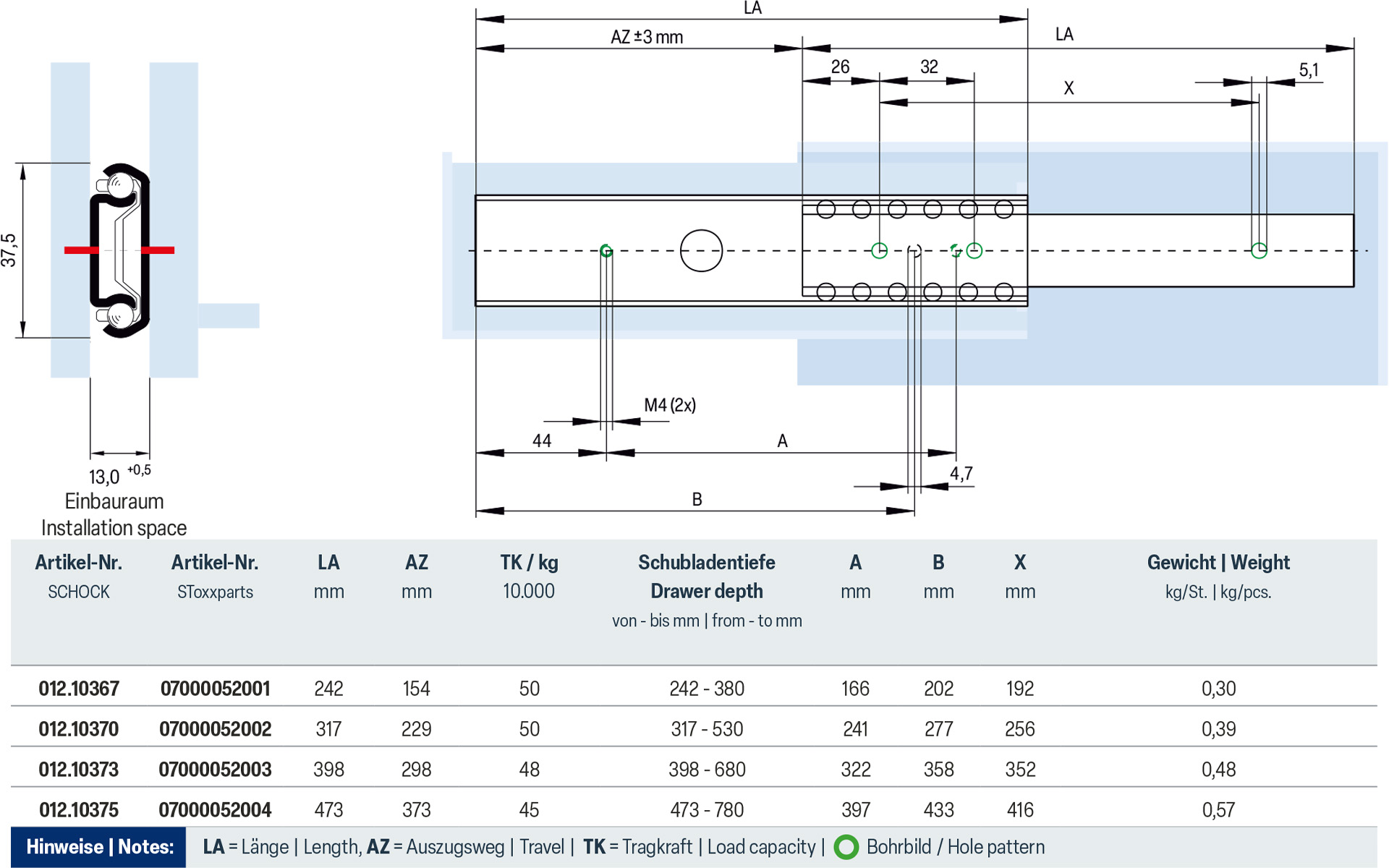

Article No. 012.10367, 012.10370, 012.10373, 012.10375 Telescopic slides series 012, hot-dip galvanized steel, width 13 mm , partial extension, up to 35 kg at 100.000 cycles

Description of Telescopic slide SM-012A

• Partial extension
• Load capacity up to 35 kg per pair
• Extendable on both sides

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of plastic
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10 C to 40 C (50 F to 104 F)
• Storage and transport temperature -20 C to max. 80 C (-4 F to 176 F)

Notes: Telescopic slides extendable on both sides are suitable for different drawer depths. The specified load capacities are maximum values for a vertically mounted pair of telescopic slides with uniform load distribution when all the intended mounting positions are used. With horizontally mounted pull-out rails, the load-bearing capacity is reduced by approx. 70%.
