Description

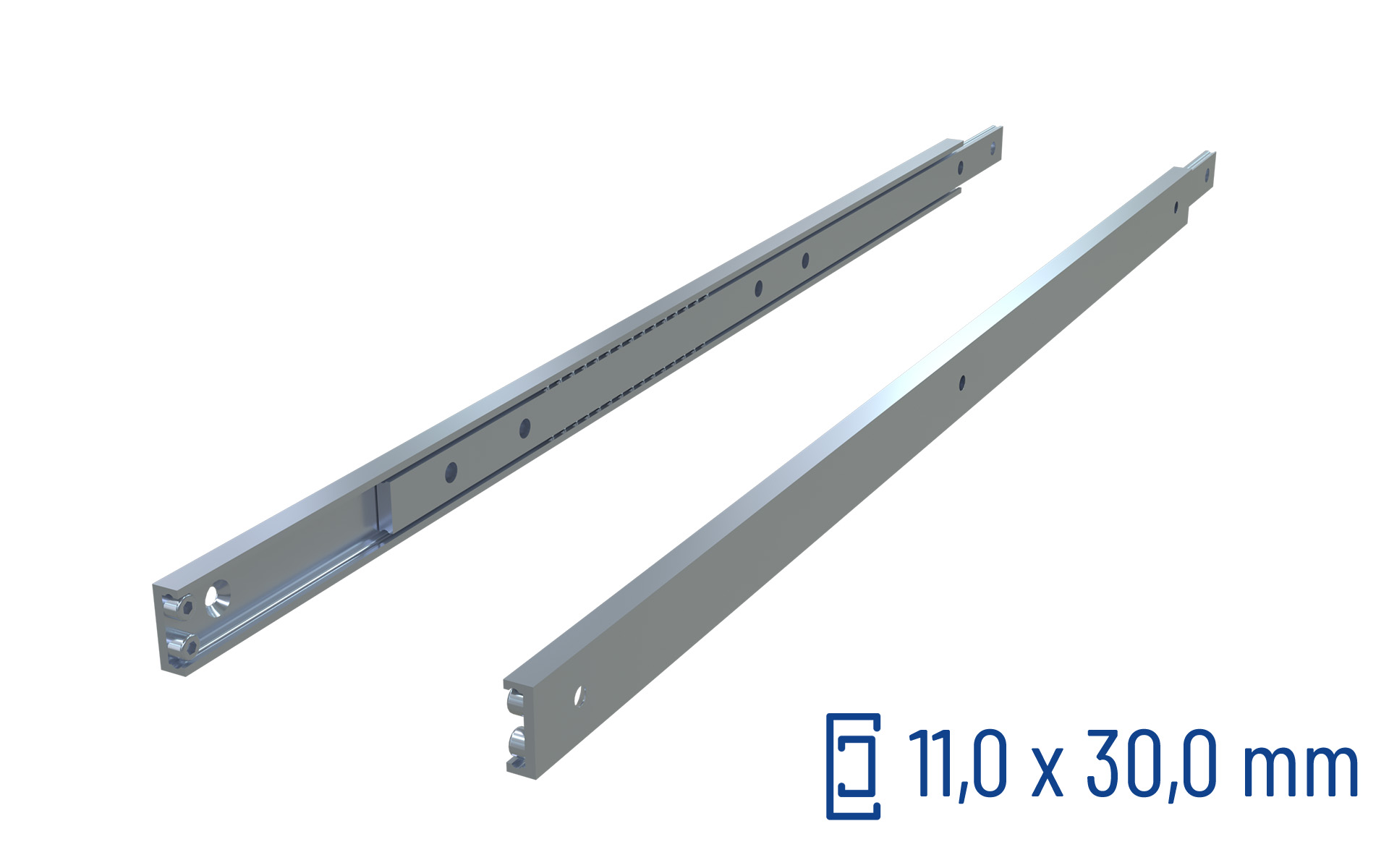

Partial Extension Series OWS-30

The OWS-30 is a robust telescopic slide with partial extension, developed to maximize load capacity in a compact space. It is especially suitable for heavy-duty seats in trains and military use, but also for a variety of applications where torsional rigidity is of utmost importance.

Extension: 50%
Material: Steel C45 E + C
Length: 150 mm to 1000 mm
Cross-section: 11 x 30 mm
Travel: 75 mm to 500 mm
Load capacity: up to 280 kg/pair
Operating temperature: -40 to +200 C

This is a 50% extension slide for heavy loads. Made from cold-drawn steel profiles and precision-milled ball bearing tracks, the OWS-30 telescopic slide offers good shock and vibration resistance when supporting a static load in the closed position. Accordingly, this slide is well-suited for installation on vehicles. The telescopic slide, made from solid steel profiles, offers a low overall height for its high load capacity. In the extended position, the slide is also very resistant to applied loads, making it an excellent choice for dynamic applications and manually operated systems.

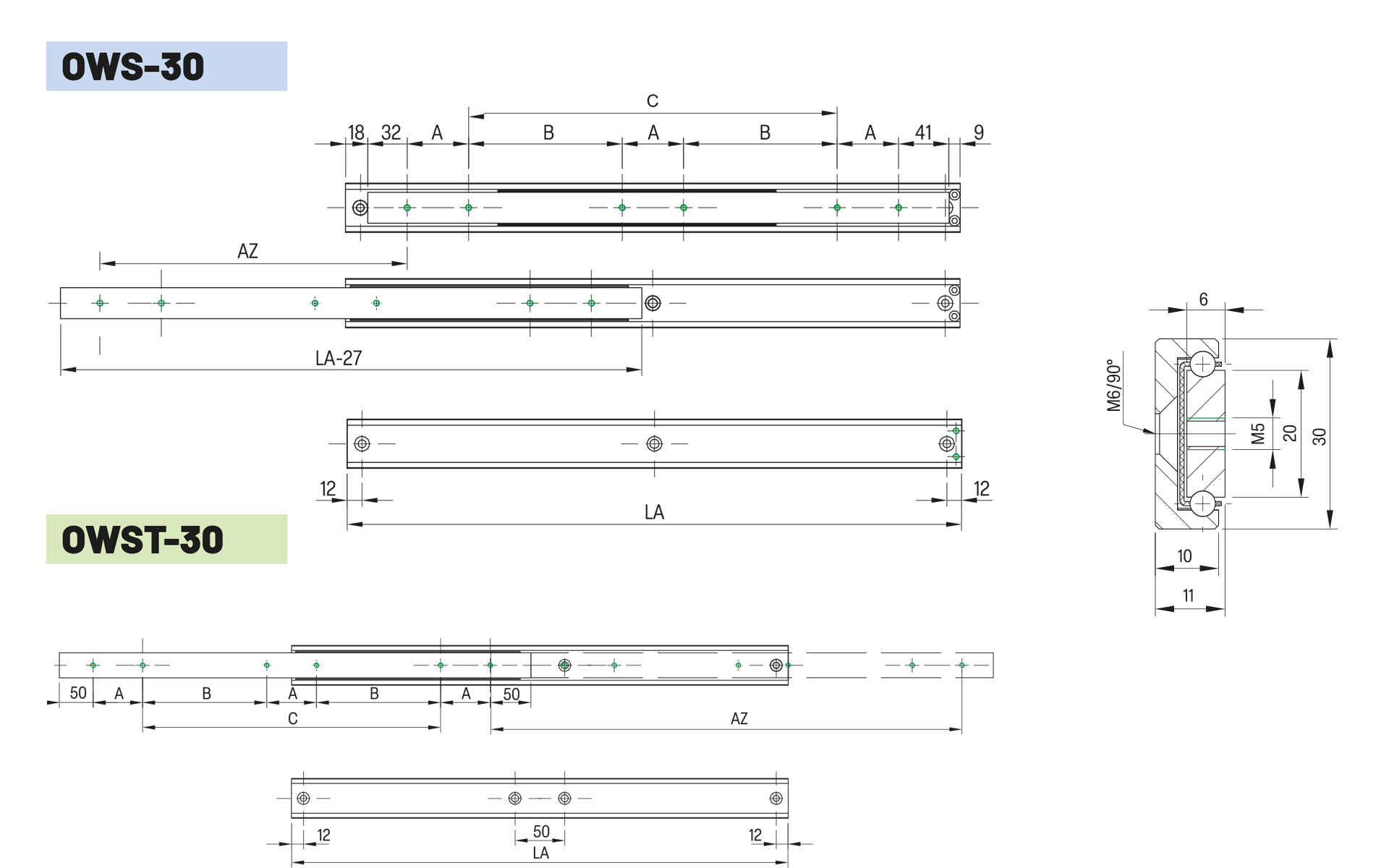

The OWST version of this slide is equipped with a front and rear extension equal to the closed length.

Load capacities:
The telescopic slides offer a high level of load capacity and compact dimensions. The maximum load capacity is specified for fully extended slide pairs, installed in the main axis direction, with the load evenly distributed over the inner slide.

Note:
Since these telescopic slides are specially produced for you after the order is placed, they are excluded from return. The slides are secured during transport with high-quality wooden packaging.
