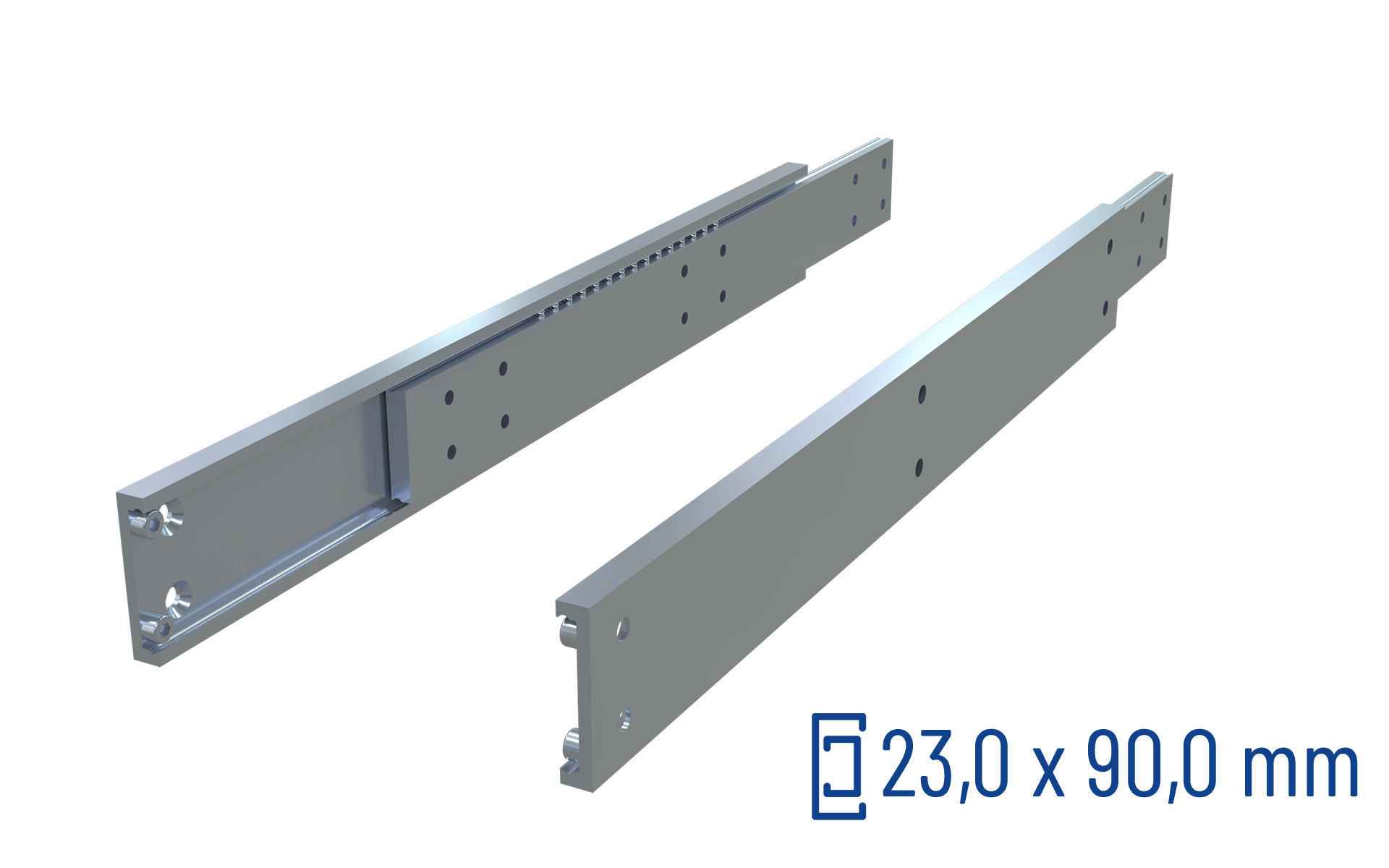

Telescopic slide partial extension OWS-90 | up to 1600 kg | Schock telescopic slides

The OWS-90 is a robust telescopic slide with partial-extension, designed to maximize load capacity in a compact space. It is particularly suitable for heavy-duty seats in trains and the military, as well as for various applications where torsional strength is of utmost importance.

This is a 50% extension slide for heavy loads. Made of cold-drawn steel profiles and precision-milled ball tracks, the OWS-90 telescopic slide provides excellent shock and vibration resistance when carrying a static load in the closed position. As such, this slide is well-suited for vehicle installations. The solid steel profile construction offers a low overall height for its high load capacity. Additionally, the slide is highly resistant to applied loads in the extended position, making it an excellent choice for dynamic applications and manually operated systems.

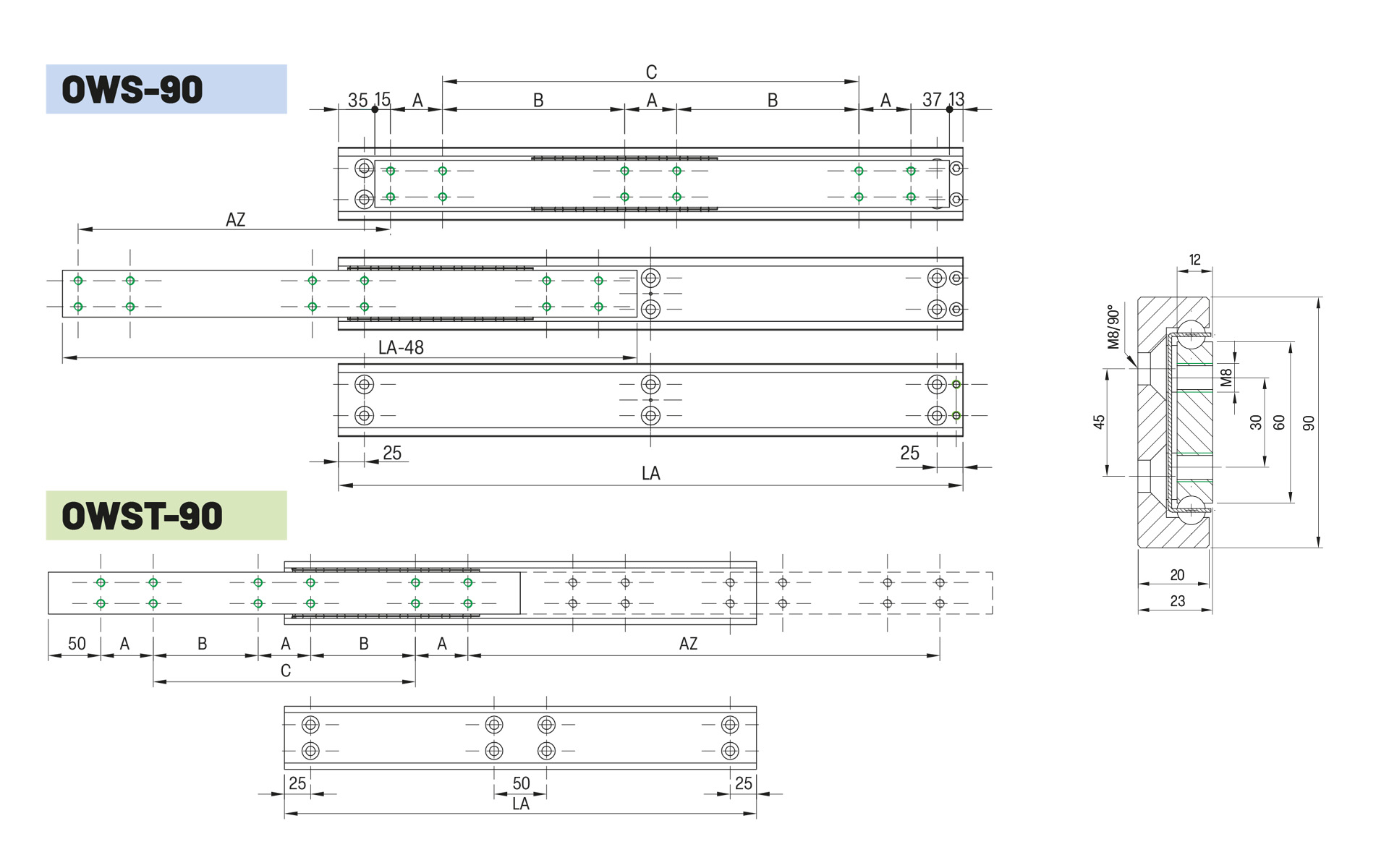

The OWST version of this slide is equipped with front and rear extensions that match the closed length.

Load capacities:
The telescopic slides offer high load capacity and compact dimensions. The maximum load capacity is specified for fully extended slide pairs installed in the main axis direction with the load evenly distributed over the inner slide.

Note:
As these telescopic slides are custom-made to order, they are excluded from returns. The slides are secured with high-quality wooden packaging during transport.
