Description

‘

Functions:

• Hold-in
• Hold-out
• Air Motion smooth-running ball mix

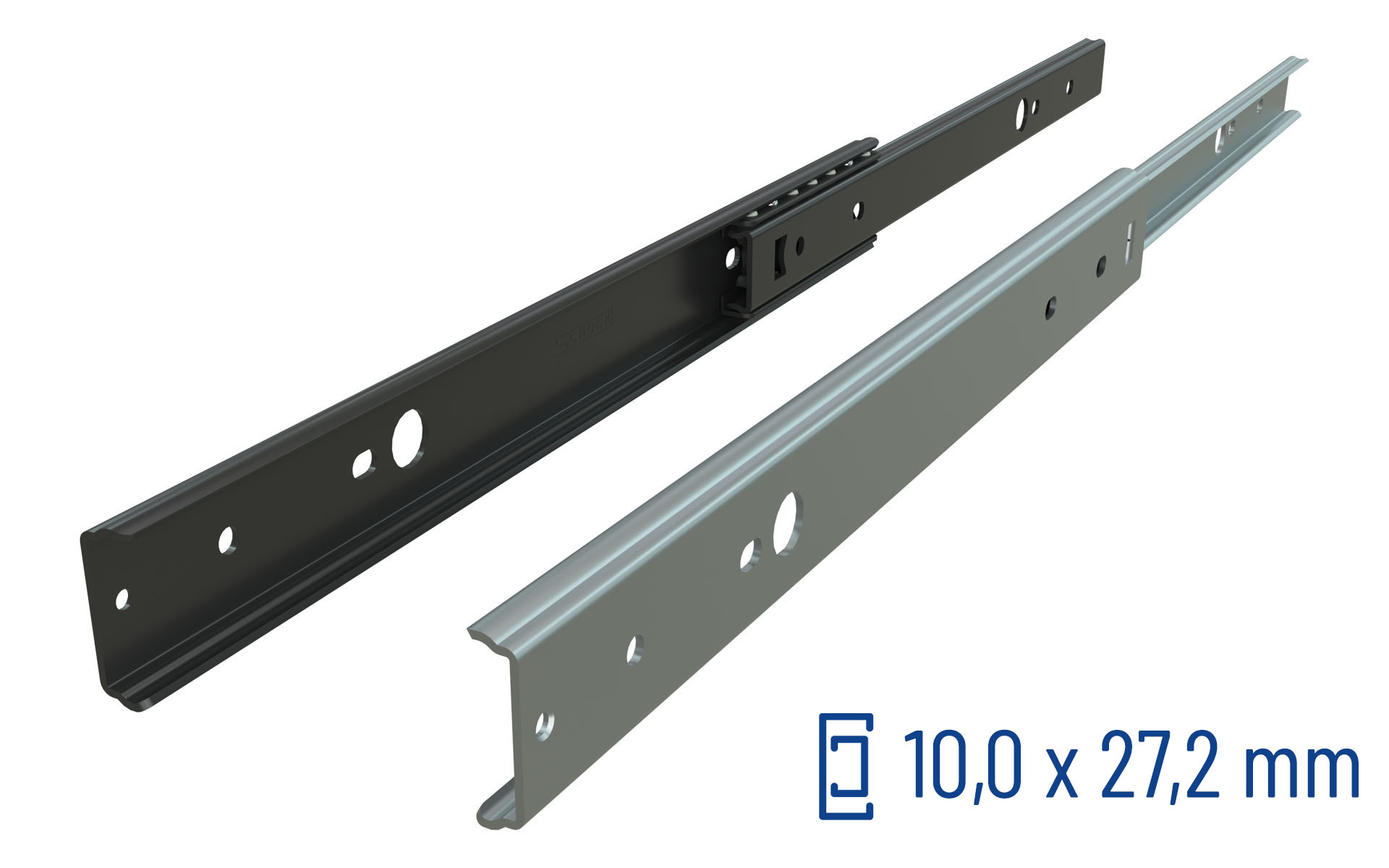

Schock telescopic slides partial extension series 010

The Schock telescopic slide partial extension series 010 is the ideal solution for a wide range of applications where easy handling and accessibility are crucial.

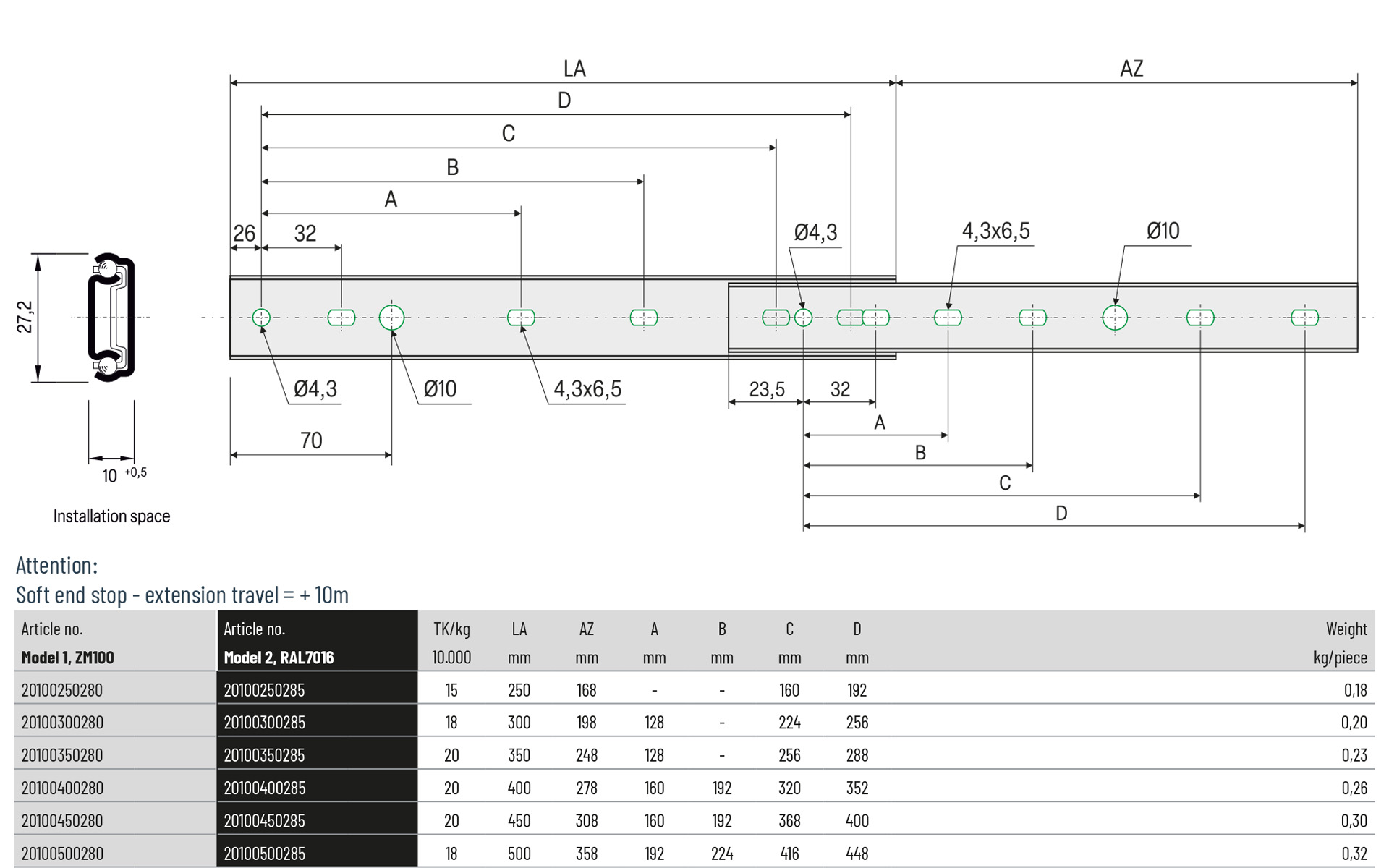

With dimensions of 10.0 x 27.2 mm (w/h) and available lengths from 250 mm to 500 mm they offer exceptional flexibility and adaptability for a wide range of projects.

These pull-outs have a comprehensive range of useful functions:

• Hold-in
• Hold-out
• Air Motion Smooth running – our patented ball mix of metal and plastic balls

These functions not only ensure safe handling, but also convenient and reliable use.

The Schock partial extension telescopic slides of the 010 series are versatile, as they are suitable for both vertical and horizontal installation. This allows them to be easily integrated into a wide range of projects.

Technical data:

• Load capacity:Up to 20 kg/pair with 10,000 cycles

Material:

• Rails made of galvanized steel (ZM100)
• Ball cages made of galvanized steel (ZM70)
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature: -20 C to +70 C
• Operating temperature with damped solf-closing mechanism: +10 C to +40 C

Notes:

The specified load capacities are maximum values for a vertically mounted pair of telescopic slides with even load distribution when using all intended fixing positions.

ATTENTION: When mounted flat (horizontally), the load capacity is reduced by up to 75%.
