Telescopic slide partial extension Series 016 | Lock-out/Disconnect | Schock telescopic slides
Price range: zł 86,15 through zł 171,02
Cross section: 9.5 x 35.2 mm | Length: 305 up to 711 mm
Description
Functions:
- Lock-out
- Disconnect

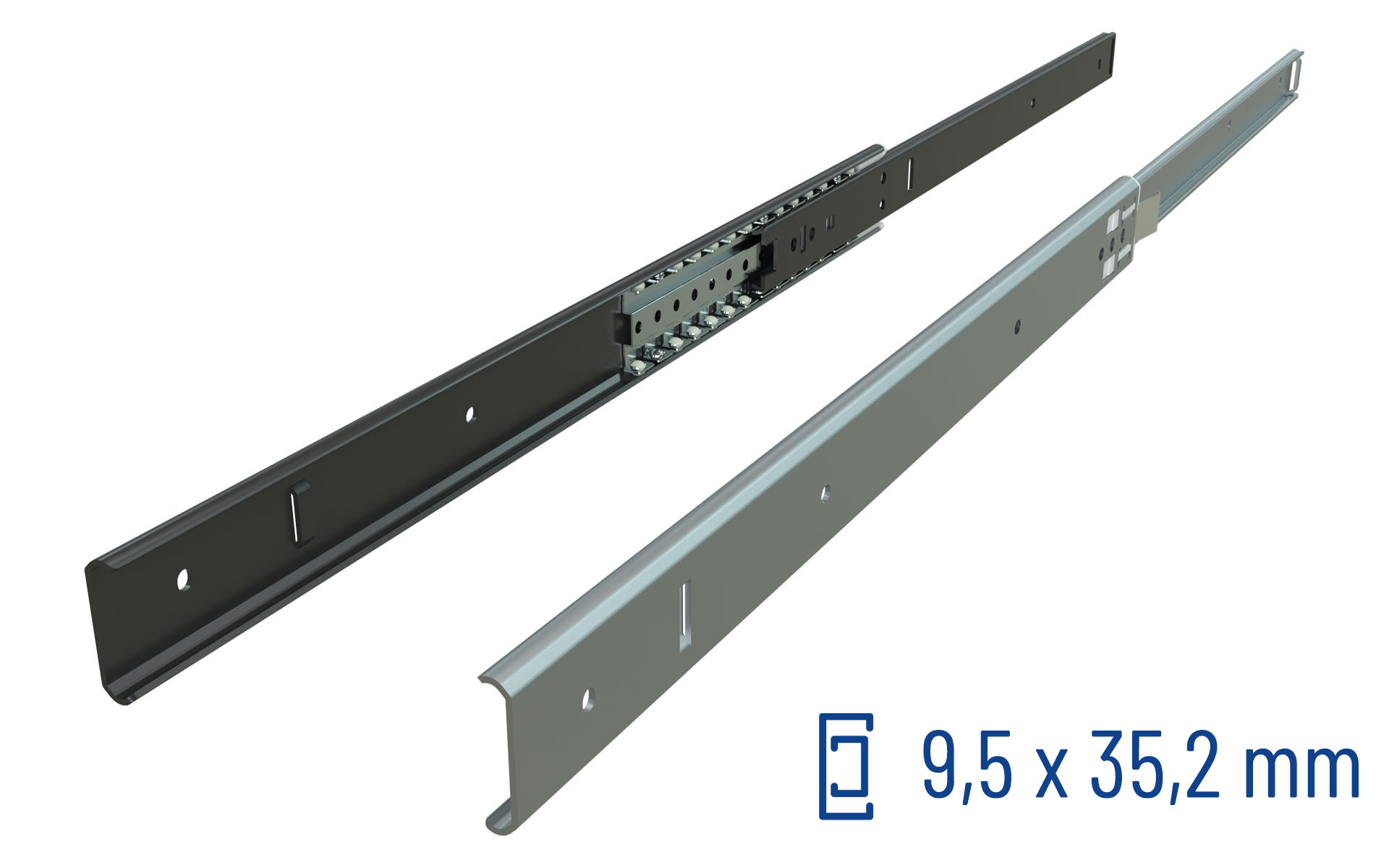

Schock telescopic slide Partial extension Series 016
The Schock telescopic slide Partial extension Series 016 is the ideal solution for a wide range
of applications where ease of use and seamless accessibility
are essential.

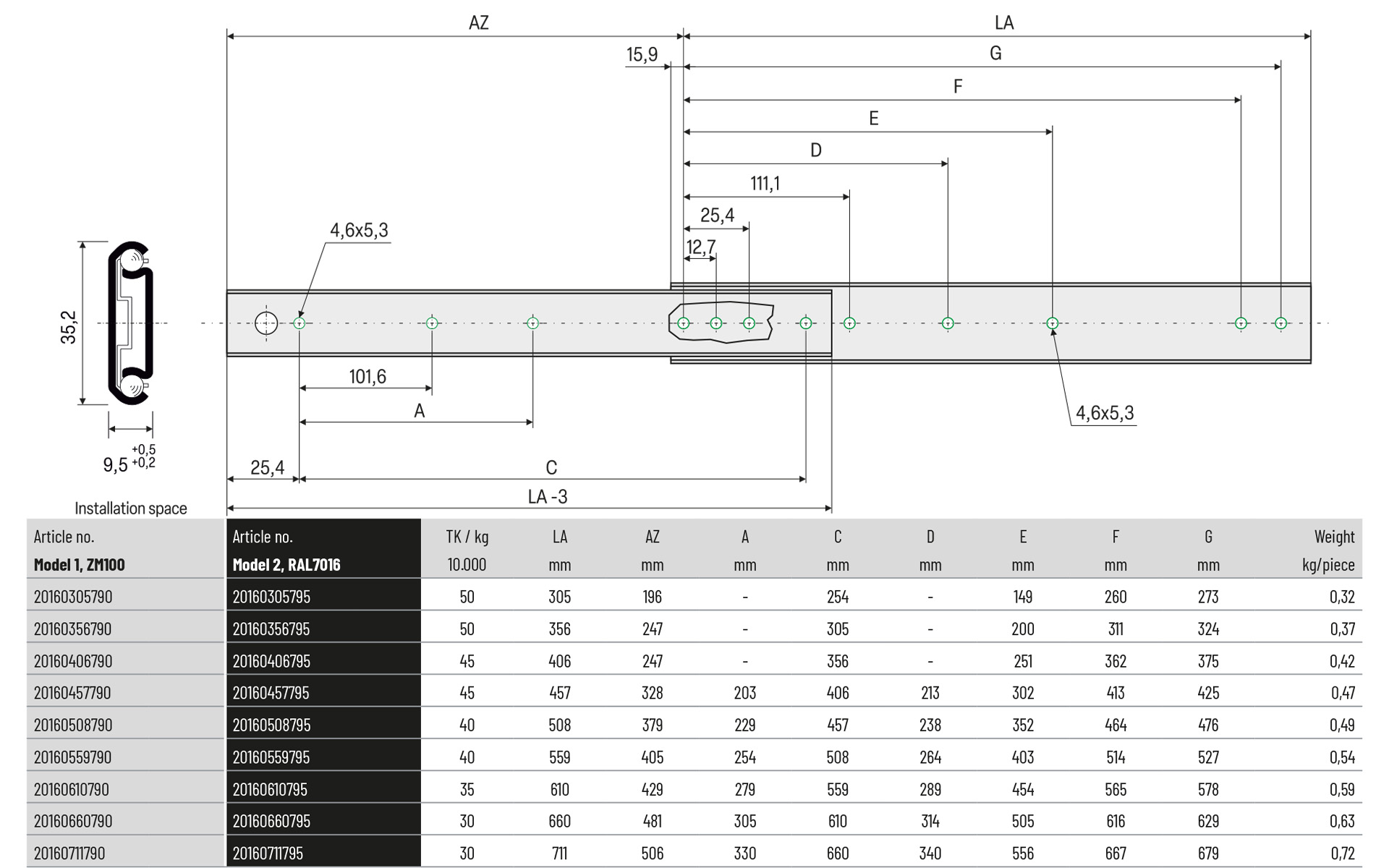

With dimensions of 9.5 x 35.2 mm (w/h) and available lengths from 305 mm to 711 mm,
they offer exceptional flexibility and adaptability for various projects.
These Partial extensions come with a comprehensive range of useful functions,
including a lock-out and a disconnect.
These functions not only ensure safe handling but also provide
comfortable and reliable use.
The Schock Partial extension telescopic slides of Series 016 are versatile,
as they are suitable for both vertical and horizontal mounting. This enables
their seamless integration into a wide range of projects.
Technical Data:
- Load capacity up to 50 kg/pair at 10,000 cycles
Material:
- Rails made of galvanized steel (ZM100)
- Ball cages made of galvanized steel (ZM70)
- Balls made of hardened C-steel
Temperature Range:
- Operating temperature: -20 C to +70 C
- Operating temperature with Soft-Close: +10 C to +40 C
Notes:
The specified load capacities are maximum values for a vertically mounted
telescopic slide pair with even load distribution using all designated
mounting positions.
WARNING: In case of flat mounting , the load capacity is reduced by up to 75%.
Additional information
| Extract type | |
|---|---|
| Material | |
| Cross section | |
| Function |
