Telescopic Slide partial extension SOWST-50 | up to 400 kg | Schock telescopic slides

Description

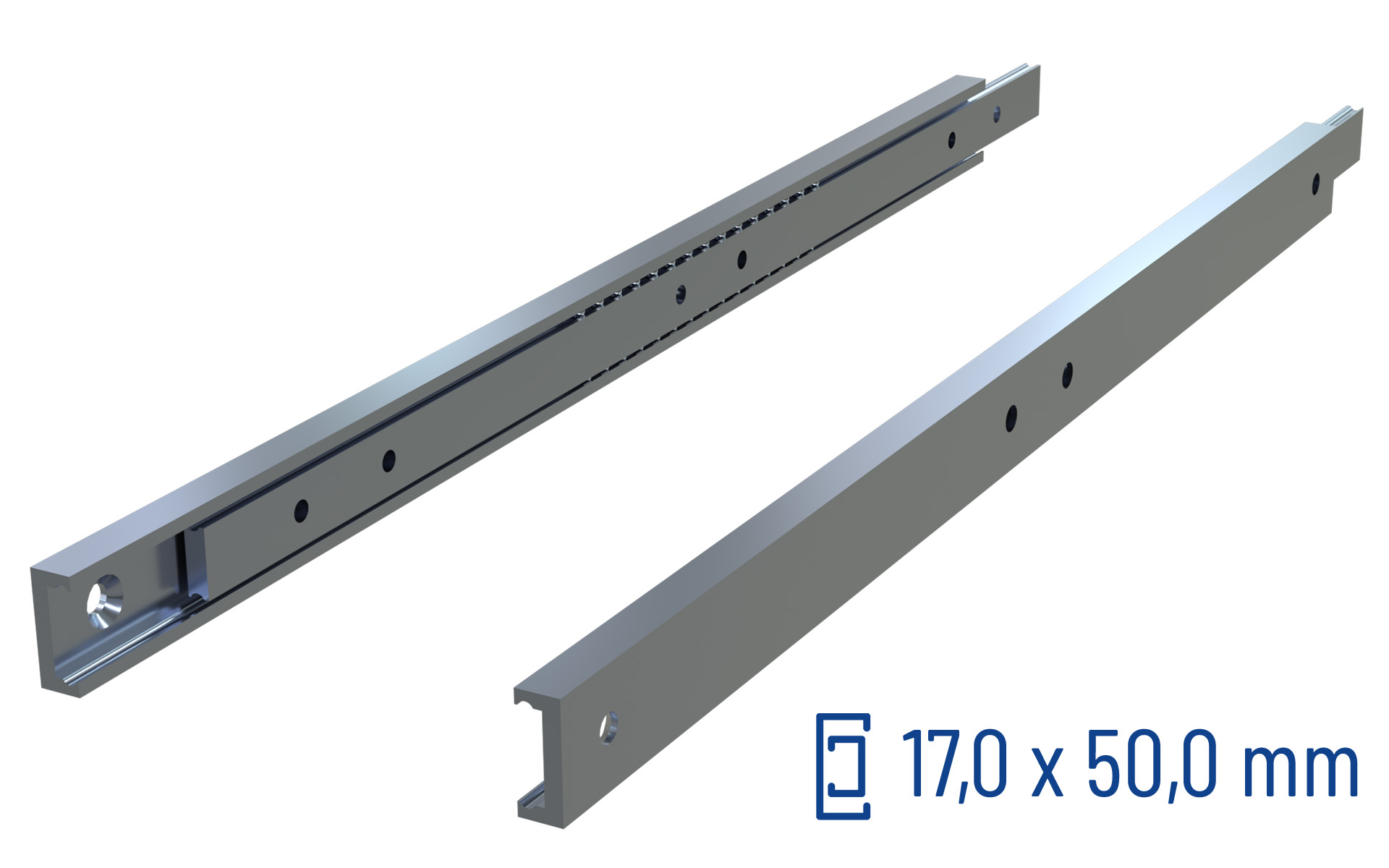

Partial Extension Series SOWST-50

The SOWST-50 is a rugged slide with an extension front and rear, equal to the closed length, which has been designed for load maximisation from a small space envelope, manufactured from marine grade 316L (1.4404) stainless steel offering a very high corrosion resistance. The austenitic structure of 316L stainless gives excellent toughness, even at cryogenic temperatures. The beams are polished to a bright finish on all surface areas as standard.

Extension: 50%
Material: Stainless Steel 316L (1.4404)
Length: 200 mm to 2000 mm

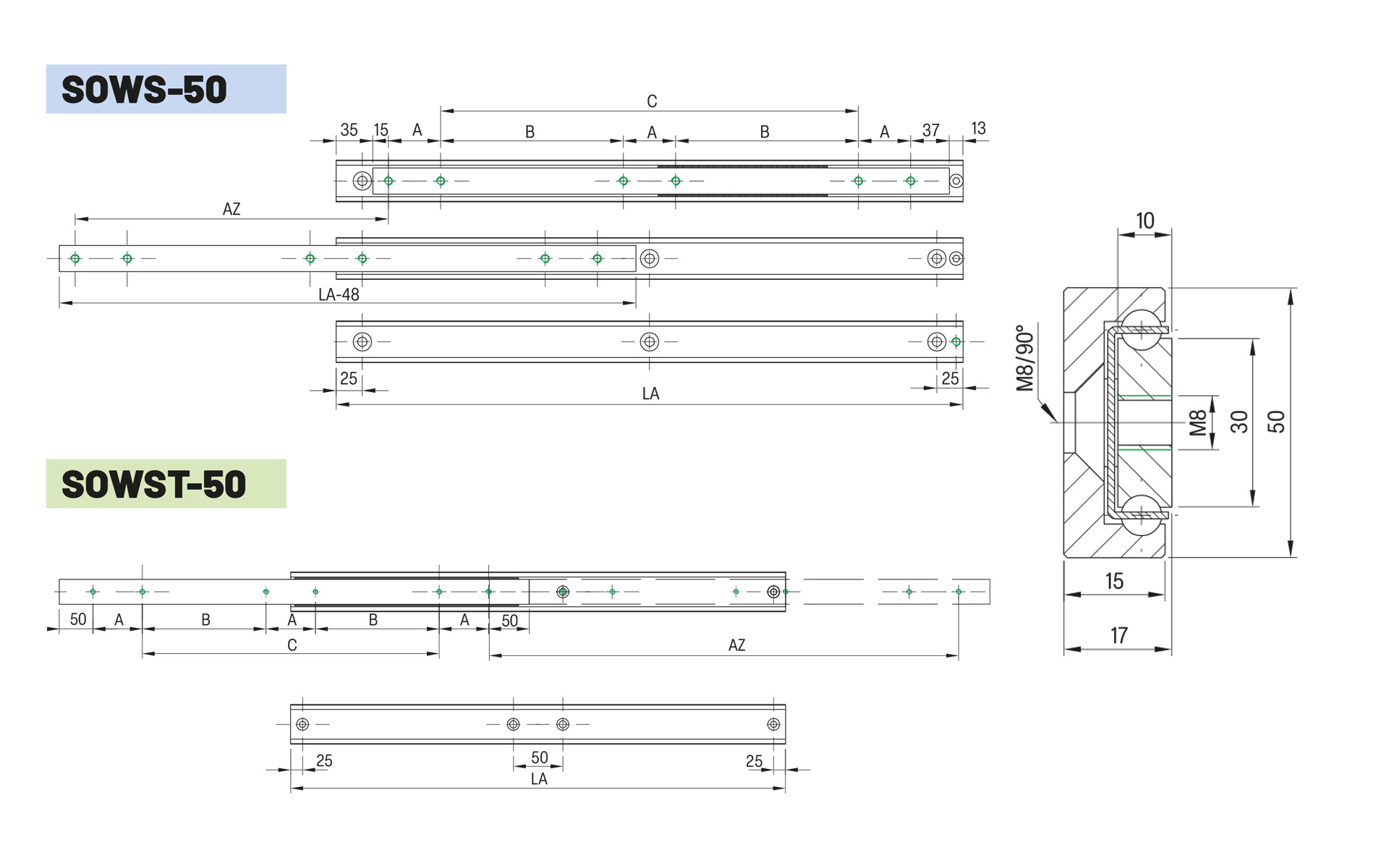

Cross-section: 16 x 50 mm
Travel distance: 200 mm to 2000 mm
Load capacity: up to 400 kg/pair
Operating temperature: -40 to +200 C

The SOWST-50 is particularly suited for highly corrosive applications with prolonged exposure to the elements. Having a compact 50mm profile, this makes it an excellent choice for heavy duty marine seating or military/emergency truck drawers which operate in wet conditions. This is an extreme load/duty front and rear extension telescopic slide (60Kg 400Kg/pair) suitable for a wide range of applications.

Constructed from milled stainless steel 316L sections, with machined ball tracks for accuracy, it has excellent levels of shock and vibration resistance. Accordingly, the product is well suited to supporting marine seating/hatches and food grade machine guards. The beams and ball bearings are manufactured from austenitic grade 316L. End stop bolts are grade 304 with cages made from ferritic grade 430 stainless, for complete corrosion protection.

This slide is robust to applied loads when in the extended position, making it an excellent choice for dynamic applications, unlike many other slides manufactured from rolled steel C sections. There are no plastic parts in the manufacture of this range, making it ideal for high temperature use.

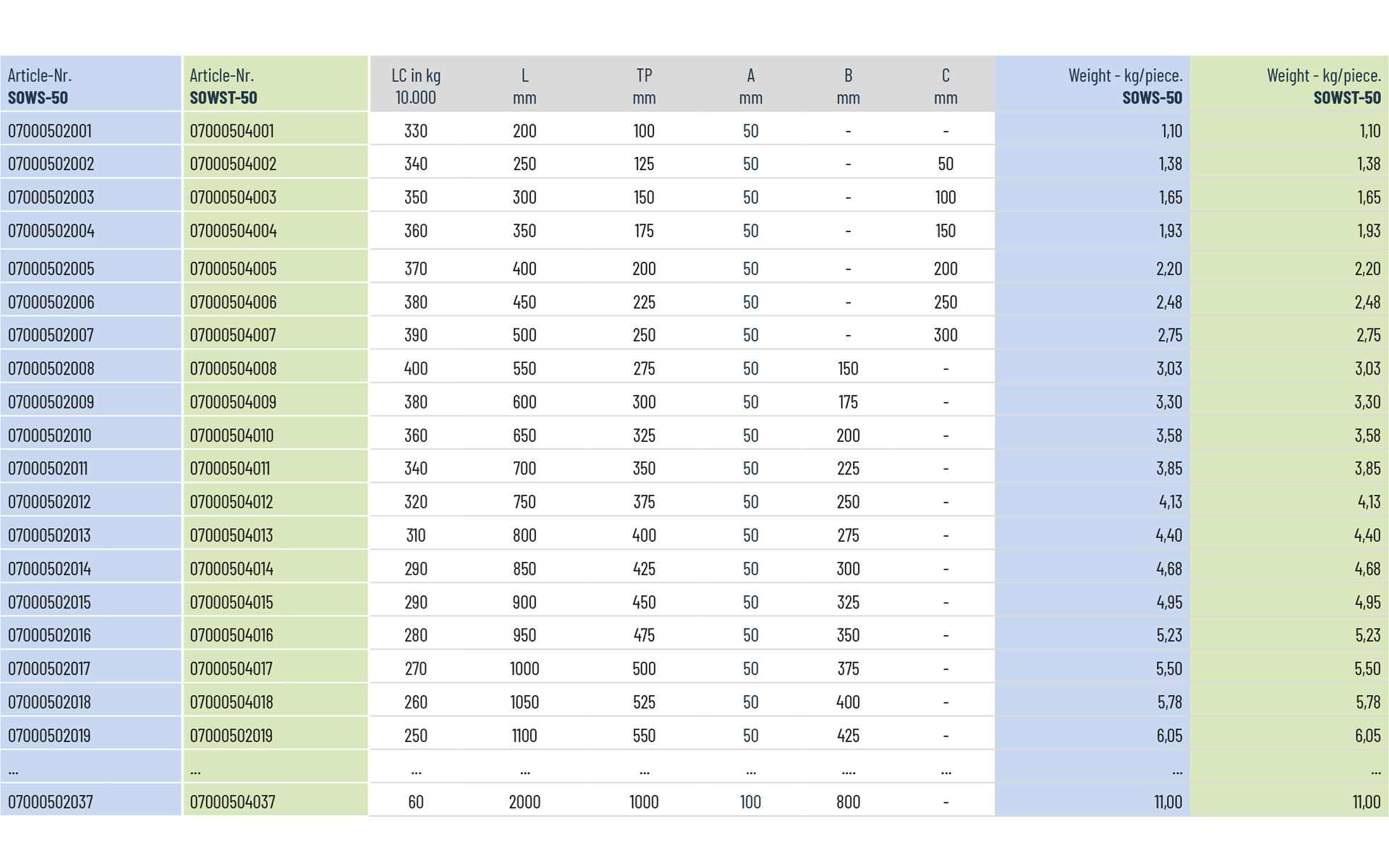

Load capacities:
The telescopic slides offer a high level of load capacity with compact dimensions. The maximum load is specified on fully extended pairs of slides installed along the major axis, with the load evenly distributed over the inner beam.

Note:
As these telescopic slides are custom-made upon order, they are excluded from returns. The slides are secured with premium wood packaging for transport.
